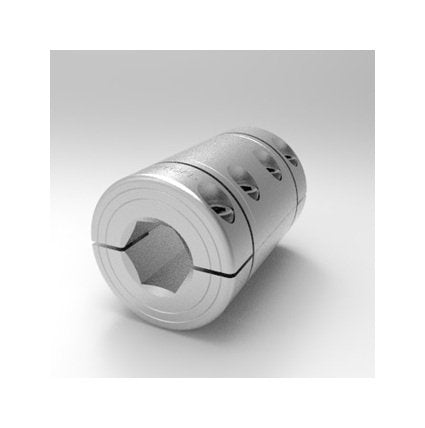

Precision Hex Bore Couplings - Stainless Steel Split Design
Precision Hex Bore Couplings - Stainless Steel Split Design
SKU:ROU-539999
Upgrade to a balanced design for precise shaft alignment. Easy assembly & adjustment with high clamping power. Stainless Steel. Made in USA.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Precision Hex Bore Couplings - Stainless Steel Split Design
$45.99
Quantity: 1
Claim Your Seller Account
Precision Hex Bore Couplings - Stainless Steel Split Design
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade to the new balanced design of Precision Sleeve Hex Bore Couplings from our Accu-Clamp™ line. Achieve precise shaft alignment with axial runout less than .001" TIR. These two-piece couplings are engineered for convenient assembly, easy adjustment, and high clamping power. The solid center section ensures a close tolerance fit on ground shafting, while the smooth bore protects shafts from damage. Available in Steel, Stainless Steel, and Aluminum. Made in the USA.
Product Specifications
Dimensional Attributes Bore Size A
5/8 in
Dimensional Attributes Bore Size B
5/8 in
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Size
10-32 x 1/2
Dimensional Attributes Total Length
2.250 in
Specifications Alloy
303
Specifications Approximate Weight
0.76 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Stainless Steel
Specifications Part Number
13S010010PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
18-8 Stainless Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786039652
