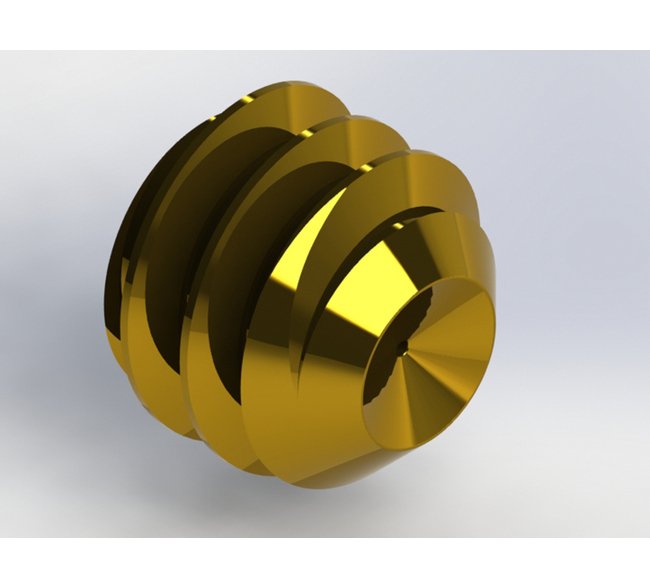

Precision Inch Threaded Inserts Kit
Precision Inch Threaded Inserts Kit
SKU:PRE-a6f5cf
Achieve precise flow control with our Precision Inch Threaded Inserts Kit. Crafted from durable brass, it offers unmatched reliability and performance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Precision Inch Threaded Inserts Kit
$59.99
Quantity: 1
Claim Your Seller Account
Precision Inch Threaded Inserts Kit
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Inch Threaded Inserts Kit offers a versatile solution for establishing accurate flow rates of liquids or gases in fittings, manifolds, or custom parts. Crafted from high-quality brass, these orifice inserts feature standard sizes ranging from 0.004" to 0.063" to meet diverse application needs. With precise specifications including orifice diameter of 0.0102", thread sizes of 6-32 UNC, and robust construction, this kit ensures reliable performance and durability. Ideal for industrial settings requiring precision and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Orifice Diameter
0.0102 in
Dimensions Thread Size
6-32
Dimensions Total Length
0.13 in
Dimensions Width Across Flats Hex
1/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.593 | 5 psig: 1.37 | 10 psig: 1.97 | 15 psig: 2.48 | 20 psig: 2.92 | 25 psig: 3.37 | 30 psig: 3.81 | 40 psig: 4.68 | 50 psig: 5.55 | 60 psig: 6.40 | 70 psig: 7.27 | 80 psig: 8.12 | 90 psig: 8.96 | 100 psig: 9.81
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.280 | 5 psig (34.5 kPag): 0.65 | 10 psig (69.0 kPag): 0.93 | 15 psig (103.4 kPag): 1.17 | 20 psig (137.9 kPag): 1.38 | 25 psig (172.4 kPag): 1.59 | 30 psig (206.9 kPag): 1.80 | 40 psig (275.8 kPag): 2.21 | 50 psig (344.8 kPag): 2.62 | 60 psig (413.7 kPag): 3.02 | 70 psig (482.7 kPag): 3.43 | 80 psig (551.6 kPag): 3.83 | 90 psig (620.6 kPag): 4.23 | 100 psig (689.5 kPag): 4.63
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 1.20 | 20 In. Hg.: 1.20 | 30 In. Hg.: 1.20
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.566 | 20 In. Hg. (508 Mm. Hg.): 0.566 | 30 In. Hg. (762 Mm. Hg.): 0.566
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.86 | 10 In. Hg.: 1.10
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.406 | 10 In. Hg. (254 Mm. Hg.): 0.519
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0025 | 2 psig: 0.0035 | 3 psig: 0.0043 | 4 psig: 0.005 | 5 psig: 0.0056 | 6 psig: 0.0061 | 7 psig: 0.0066 | 8 psig: 0.0071 | 9 psig: 0.0075 | 10 psig: 0.0079 | 15 psig: 0.0097 | 20 psig: 0.0112 | 30 psig: 0.0137 | 40 psig: 0.0158 | 50 psig: 0.0177 | 60 psig: 0.0194 | 70 psig: 0.0209 | 80 psig: 0.0224 | 90 psig: 0.0237 | 100 psig: 0.0250
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0095 | 2 psig (13.8 kPag): 0.0134 | 3 psig (20.7 kPag): 0.0164 | 4 psig (27.6 kPag): 0.0189 | 5 psig (34.5 kPag): 0.0212 | 6 psig (41.4 kPag): 0.0212 | 7 psig (48.3 kPag): 0.0250 | 8 psig (55.2 kPag): 0.0268 | 9 psig (62.1 kPag): 0.0284 | 10 psig (69 kPag): 0.0299 | 15 psig (103.4 kPag): 0.0367 | 20 psig (137.9 kPag): 0.0423 | 30 psig (206.9 kPag): 0.0518 | 40 psig (275.8 kPag): 0.0599 | 50 psig (344.8 kPag): 0.0669 | 60 psig (413.7 kPag): 0.0733 | 70 psig (482.7 kPag): 0.0792 | 80 psig (551.6 kPag): 0.0846 | 90 psig (620.6 kPag): 0.0898 | 100 psig (689.5 kPag): 0.0946
Specifications Connection A
6-32 UNC Threaded Insert
Specifications Material
Brass
Specifications Nominal Orifice Size
10
Specifications Screened
None
