Precision Inch Threaded Inserts Kit
Precision Inch Threaded Inserts Kit
SKU:PRE-a05c27
Enhance flow control with our Precision Inch Threaded Inserts Kit, ideal for fittings, manifolds, and custom parts. Achieve precise flow rates with ease.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Inch Threaded Inserts Kit
$29.99
Quantity: 1
Claim Your Seller Account
Precision Inch Threaded Inserts Kit
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

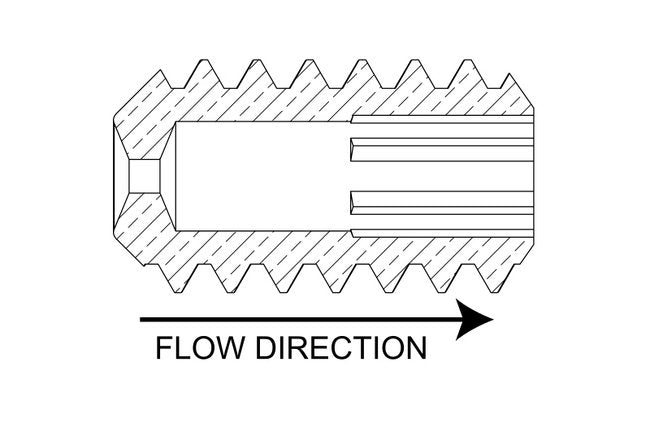

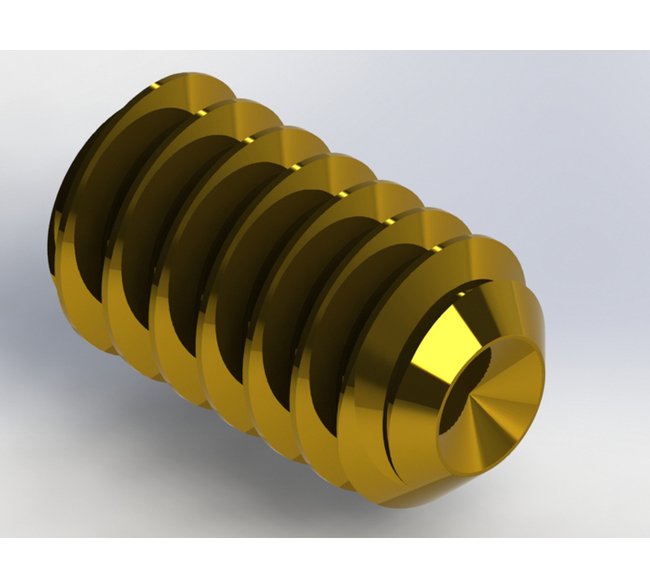

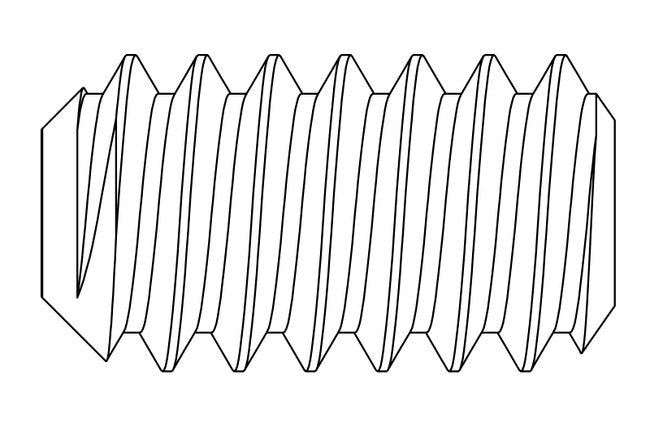

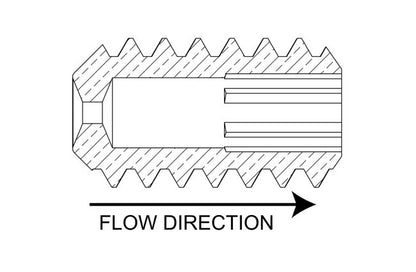

Upgrade your fluid or gas flow control with our Precision Inch Threaded Inserts Kit. This set screw style orifice inserts fit into various parts with sizes ranging from 6-32 UNC to 3/8"-16 UNC. Crafted from high-quality Brass, these inserts offer precise flow rates, with orifice diameters from 0.013 inches. The kit includes options suitable for different needs and materials, ensuring compatibility with various systems.
Product Specifications
Dimensions Orifice Diameter
0.013 in
Dimensions Thread Size
6-32
Dimensions Total Length
0.25 in
Dimensions Width Across Flats Hex
1/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.962 | 5 psig: 2.25 | 10 psig: 3.14 | 15 psig: 3.92 | 20 psig: 4.64 | 25 psig: 5.30 | 30 psig: 5.98 | 40 psig: 7.31 | 50 psig: 8.62 | 60 psig: 10.0 | 70 psig: 11.3 | 80 psig: 12.6 | 90 psig: 13.9 | 100 psig: 15.3
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.45 | 5 psig (34.5 kPag): 1.06 | 10 psig (69.0 kPag): 1.48 | 15 psig (103.4 kPag): 1.85 | 20 psig (137.9 kPag): 2.19 | 25 psig (172.4 kPag): 2.50 | 30 psig (206.9 kPag): 2.82 | 40 psig (275.8 kPag): 3.45 | 50 psig (344.8 kPag): 4.07 | 60 psig (413.7 kPag): 4.70 | 70 psig (482.7 kPag): 5.32 | 80 psig (551.6 kPag): 5.95 | 90 psig (620.6 kPag): 6.58 | 100 psig (689.5 kPag): 7.22
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 1.91 | 20 In. Hg.: 1.91 | 30 In. Hg.: 1.91
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.902 | 20 In. Hg. (508 Mm. Hg.): 0.902 | 30 In. Hg. (762 Mm. Hg.): 0.902
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 1.4 | 10 In. Hg.: 1.77
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.661 | 10 In. Hg. (254 Mm. Hg.): 0.834
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0038 | 2 psig: 0.0054 | 3 psig: 0.0066 | 4 psig: 0.0076 | 5 psig: 0.0085 | 6 psig: 0.0093 | 7 psig: 0.0101 | 8 psig: 0.0107 | 9 psig: 0.0114 | 10 psig: 0.0120 | 15 psig: 0.0147 | 20 psig: 0.0170 | 30 psig: 0.0208 | 40 psig: 0.0240 | 50 psig: 0.0269 | 60 psig: 0.0294 | 70 psig: 0.0318 | 80 psig: 0.0340 | 90 psig: 0.0360 | 100 psig: 0.0380
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0144 | 2 psig (13.8 kPag): 0.0203 | 3 psig (20.7 kPag): 0.0249 | 4 psig (27.6 kPag): 0.0288 | 5 psig (34.5 kPag): 0.0322 | 6 psig (41.4 kPag): 0.0322 | 7 psig (48.3 kPag): 0.0381 | 8 psig (55.2 kPag): 0.0407 | 9 psig (62.1 kPag): 0.0432 | 10 psig (69 kPag): 0.0455 | 15 psig (103.4 kPag): 0.0557 | 20 psig (137.9 kPag): 0.0643 | 30 psig (206.9 kPag): 0.0788 | 40 psig (275.8 kPag): 0.0910 | 50 psig (344.8 kPag): 0.1017 | 60 psig (413.7 kPag): 0.1114 | 70 psig (482.7 kPag): 0.1203 | 80 psig (551.6 kPag): 0.1287 | 90 psig (620.6 kPag): 0.1365 | 100 psig (689.5 kPag): 0.1438
Specifications Connection A
6-32 UNC Threaded Insert
Specifications Material
Brass
Specifications Nominal Orifice Size
13
Specifications Screened
None
