Precision Inch Threaded Inserts Kit
Precision Inch Threaded Inserts Kit
SKU:PRE-73df86
Achieve precise flow control with our high-quality Precision Inch Threaded Inserts Kit for fittings, manifolds, or custom parts.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Precision Inch Threaded Inserts Kit
$39.99
Quantity: 1
Claim Your Seller Account
Precision Inch Threaded Inserts Kit
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

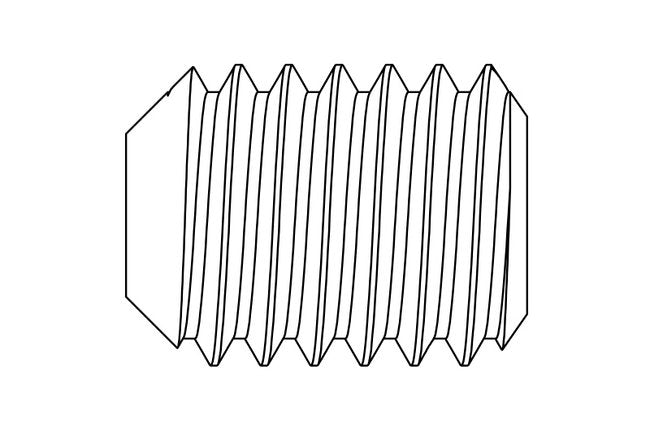

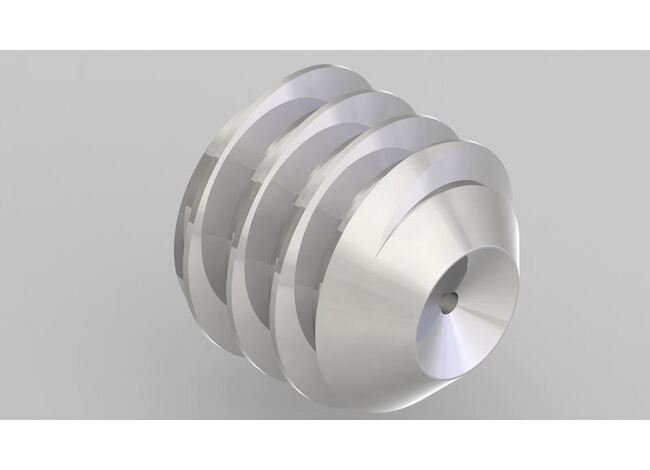

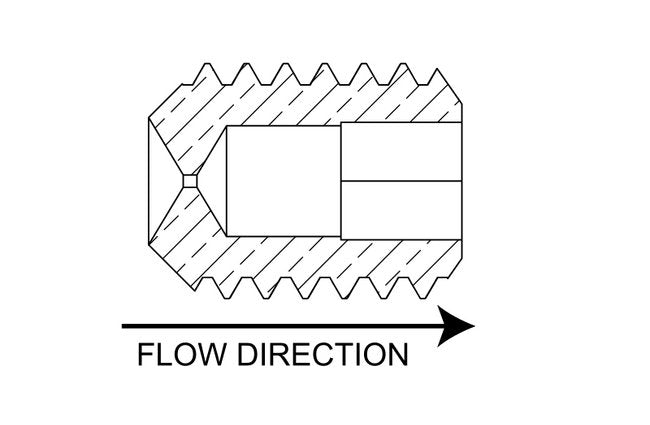

The Precision Inch Threaded Inserts Kit includes a versatile set of orifice inserts designed for precise flow rate control of liquids or gases in fittings, manifolds, or custom parts. Made of high-quality brass, the inserts feature standard sizes ranging from .004" to .063" with a 3/8-16 UNC Threaded Insert connection ideal for a seamless installation process. With excellent dimensional specifications like a 0.021" Orifice Diameter and superior flow performance data, this kit ensures reliable and efficient operation in various applications.
Product Specifications
Dimensions Orifice Diameter
0.021 in
Dimensions Thread Size
3/8-16
Dimensions Total Length
0.50 in
Dimensions Width Across Flats Hex
3/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.39 | 5 psig: 5.62 | 10 psig: 7.48 | 15 psig: 9.34 | 20 psig: 11.1 | 25 psig: 12.7 | 30 psig: 14.4 | 40 psig: 17.8 | 50 psig: 21.2 | 60 psig: 24.6 | 70 psig: 28.0 | 80 psig: 31.6 | 90 psig: 35.0 | 100 psig: 38.1
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.13 | 5 psig (34.5 kPag): 2.65 | 10 psig (69.0 kPag): 3.53 | 15 psig (103.4 kPag): 4.41 | 20 psig (137.9 kPag): 5.22 | 25 psig (172.4 kPag): 6.01 | 30 psig (206.9 kPag): 6.81 | 40 psig (275.8 kPag): 8.42 | 50 psig (344.8 kPag): 10.0 | 60 psig (413.7 kPag): 11.6 | 70 psig (482.7 kPag): 13.2 | 80 psig (551.6 kPag): 14.9 | 90 psig (620.6 kPag): 16.5 | 100 psig (689.5 kPag): 18.0
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 4.92 | 20 In. Hg.: 4.92 | 30 In. Hg.: 4.92
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.32 | 20 In. Hg. (508 Mm. Hg.): 2.32 | 30 In. Hg. (762 Mm. Hg.): 2.32
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 3.6 | 10 In. Hg.: 4.62
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.70 | 10 In. Hg. (254 Mm. Hg.): 2.18
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.010 | 2 psig: 0.014 | 3 psig: 0.017 | 4 psig: 0.019 | 5 psig: 0.021 | 6 psig: 0.024 | 7 psig: 0.025 | 8 psig: 0.027 | 9 psig: 0.029 | 10 psig: 0.030 | 15 psig: 0.037 | 20 psig: 0.043 | 30 psig: 0.053 | 40 psig: 0.061 | 50 psig: 0.068 | 60 psig: 0.074 | 70 psig: 0.080 | 80 psig: 0.086 | 90 psig: 0.091 | 100 psig: 0.096
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.036 | 2 psig (13.8 kPag): 0.051 | 3 psig (20.7 kPag): 0.063 | 4 psig (27.6 kPag): 0.073 | 5 psig (34.5 kPag): 0.081 | 6 psig (41.4 kPag): 0.081 | 7 psig (48.3 kPag): 0.096 | 8 psig (55.2 kPag): 0.103 | 9 psig (62.1 kPag): 0.109 | 10 psig (69 kPag): 0.115 | 15 psig (103.4 kPag): 0.141 | 20 psig (137.9 kPag): 0.163 | 30 psig (206.9 kPag): 0.199 | 40 psig (275.8 kPag): 0.230 | 50 psig (344.8 kPag): 0.257 | 60 psig (413.7 kPag): 0.281 | 70 psig (482.7 kPag): 0.304 | 80 psig (551.6 kPag): 0.325 | 90 psig (620.6 kPag): 0.345 | 100 psig (689.5 kPag): 0.363
Specifications Connection A
3/8"-16 UNC Threaded Insert
Specifications Material
Brass
Specifications Nominal Orifice Size
21
Specifications Screened
None
