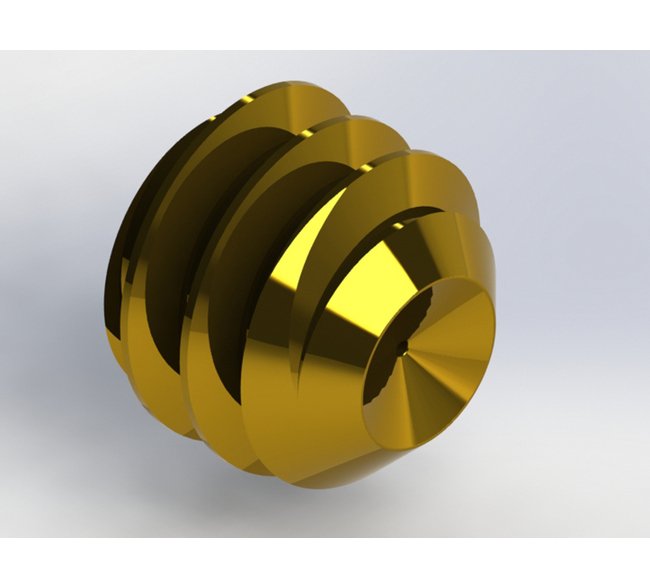

Upgrade your fluid control systems with this set of precision inch threaded inserts featuring orifice diameters ranging from 0.004" to 0.063". Crafted from durable brass, these threaded inserts ensure precise flow rates for liquids or gases in fittings, manifolds, or custom parts. With proven air and water flow data for different pressures, this kit offers reliability, performance, and compliance with institutional procurement standards.
Product Specifications
Dimensions Orifice Diameter
0.0079 in
Dimensions Thread Size
6-32
Dimensions Total Length
0.13 in
Dimensions Width Across Flats Hex
1/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.36 | 5 psig: 0.85 | 10 psig: 1.21 | 15 psig: 1.53 | 20 psig: 1.80 | 25 psig: 2.08 | 30 psig: 2.37 | 40 psig: 2.92 | 50 psig: 3.50 | 60 psig: 4.05 | 70 psig: 4.60 | 80 psig: 5.15 | 90 psig: 5.70 | 100 psig: 6.25
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.170 | 5 psig (34.5 kPag): 0.40 | 10 psig (69.0 kPag): 0.57 | 15 psig (103.4 kPag): 0.72 | 20 psig (137.9 kPag): 0.85 | 25 psig (172.4 kPag): 0.98 | 30 psig (206.9 kPag): 1.12 | 40 psig (275.8 kPag): 1.38 | 50 psig (344.8 kPag): 1.65 | 60 psig (413.7 kPag): 1.91 | 70 psig (482.7 kPag): 2.17 | 80 psig (551.6 kPag): 2.43 | 90 psig (620.6 kPag): 2.69 | 100 psig (689.5 kPag): 2.95
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.744 | 20 In. Hg.: 0.744 | 30 In. Hg.: 0.744
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.351 | 20 In. Hg. (508 Mm. Hg.): 0.351 | 30 In. Hg. (762 Mm. Hg.): 0.351
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.536 | 10 In. Hg.: 0.687
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.253 | 10 In. Hg. (254 Mm. Hg.): 0.324
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0015 | 2 psig: 0.0021 | 3 psig: 0.0026 | 4 psig: 0.0030 | 5 psig: 0.0034 | 6 psig: 0.0037 | 7 psig: 0.0040 | 8 psig: 0.0042 | 9 psig: 0.0045 | 10 psig: 0.0047 | 15 psig: 0.0058 | 20 psig: 0.0067 | 30 psig: 0.0082 | 40 psig: 0.0095 | 50 psig: 0.0106 | 60 psig: 0.0116 | 70 psig: 0.0125 | 80 psig: 0.0134 | 90 psig: 0.0142 | 100 psig: 0.0150
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0057 | 2 psig (13.8 kPag): 0.0080 | 3 psig (20.7 kPag): 0.0098 | 4 psig (27.6 kPag): 0.0114 | 5 psig (34.5 kPag): 0.0127 | 6 psig (41.4 kPag): 0.0127 | 7 psig (48.3 kPag): 0.0150 | 8 psig (55.2 kPag): 0.0161 | 9 psig (62.1 kPag): 0.0170 | 10 psig (69 kPag): 0.0180 | 15 psig (103.4 kPag): 0.0220 | 20 psig (137.9 kPag): 0.0254 | 30 psig (206.9 kPag): 0.0311 | 40 psig (275.8 kPag): 0.0359 | 50 psig (344.8 kPag): 0.0402 | 60 psig (413.7 kPag): 0.0440 | 70 psig (482.7 kPag): 0.0475 | 80 psig (551.6 kPag): 0.0508 | 90 psig (620.6 kPag): 0.0539 | 100 psig (689.5 kPag): 0.0568
Specifications Connection A
6-32 UNC Threaded Insert
Specifications Material
Brass
Specifications Nominal Orifice Size
8
Specifications Screened
None
