Precision Inch Threaded Inserts Pack
Precision Inch Threaded Inserts Pack
SKU:PRE-bb37b3
Enhance flow control with our Precision Inch Threaded Inserts Pack, designed for accuracy and reliability in liquid or gas systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Inch Threaded Inserts Pack
$29.99
Quantity: 1
Claim Your Seller Account
Precision Inch Threaded Inserts Pack
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

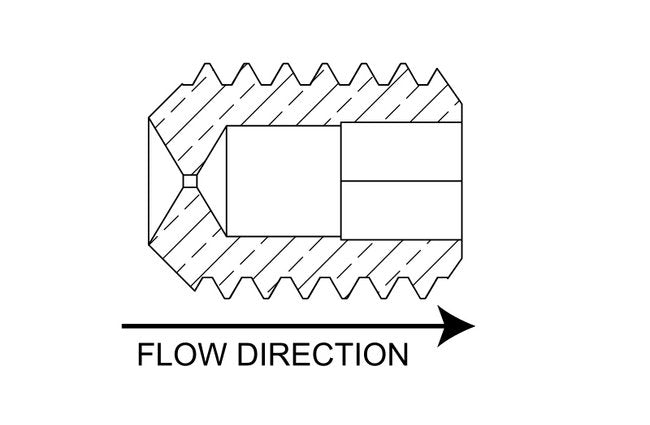

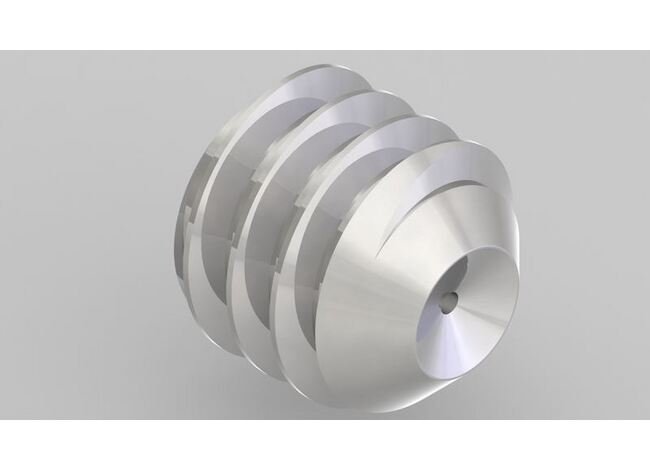

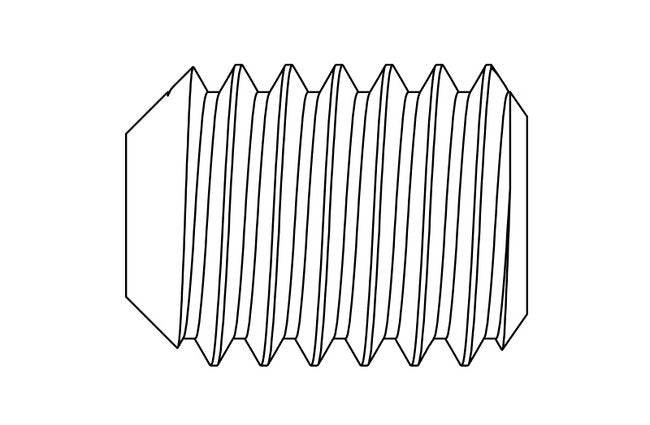

Upgrade your industrial setups with our Precision Inch Threaded Inserts Pack. Ideal for establishing accurate flow rates of liquids or gases, these brass inserts ensure reliable performance. With a range of standard orifice sizes from .004" to .063" and compatibility with 3/8-16 UNC threading, these inserts offer precise control. Benefit from efficient air and water flow rates detailed in our specifications for optimal system performance. Our inserts meet industry standards for durability and accuracy, making them the go-to choice for institutional and government procurement needs.
Product Specifications
Dimensions Orifice Diameter
0.016 in
Dimensions Thread Size
3/8-16
Dimensions Total Length
0.50 in
Dimensions Width Across Flats Hex
3/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.40 | 5 psig: 3.26 | 10 psig: 4.26 | 15 psig: 5.30 | 20 psig: 6.29 | 25 psig: 7.25 | 30 psig: 8.20 | 40 psig: 10.1 | 50 psig: 12.1 | 60 psig: 14.0 | 70 psig: 16 | 80 psig: 17.9 | 90 psig: 19.9 | 100 psig: 21.8
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.66 | 5 psig (34.5 kPag): 1.54 | 10 psig (69.0 kPag): 2.01 | 15 psig (103.4 kPag): 2.50 | 20 psig (137.9 kPag): 2.97 | 25 psig (172.4 kPag): 3.42 | 30 psig (206.9 kPag): 3.87 | 40 psig (275.8 kPag): 4.78 | 50 psig (344.8 kPag): 5.70 | 60 psig (413.7 kPag): 6.61 | 70 psig (482.7 kPag): 7.53 | 80 psig (551.6 kPag): 8.46 | 90 psig (620.6 kPag): 9.38 | 100 psig (689.5 kPag): 10.3
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 2.86 | 20 In. Hg.: 2.86 | 30 In. Hg.: 2.86
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.35 | 20 In. Hg. (508 Mm. Hg.): 1.35 | 30 In. Hg. (762 Mm. Hg.): 1.35
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 2.07 | 10 In. Hg.: 2.62
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.977 | 10 In. Hg. (254 Mm. Hg.): 1.24
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0055 | 2 psig: 0.0078 | 3 psig: 0.0095 | 4 psig: 0.0110 | 5 psig: 0.0123 | 6 psig: 0.0135 | 7 psig: 0.0146 | 8 psig: 0.0156 | 9 psig: 0.0165 | 10 psig: 0.0174 | 15 psig: 0.0213 | 20 psig: 0.0246 | 30 psig: 0.0301 | 40 psig: 0.0348 | 50 psig: 0.0389 | 60 psig: 0.0426 | 70 psig: 0.0460 | 80 psig: 0.0492 | 90 psig: 0.0522 | 100 psig: 0.0550
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0208 | 2 psig (13.8 kPag): 0.0294 | 3 psig (20.7 kPag): 0.0361 | 4 psig (27.6 kPag): 0.0416 | 5 psig (34.5 kPag): 0.0466 | 6 psig (41.4 kPag): 0.0466 | 7 psig (48.3 kPag): 0.0551 | 8 psig (55.2 kPag): 0.0589 | 9 psig (62.1 kPag): 0.0625 | 10 psig (69 kPag): 0.0658 | 15 psig (103.4 kPag): 0.0806 | 20 psig (137.9 kPag): 0.0931 | 30 psig (206.9 kPag): 0.1140 | 40 psig (275.8 kPag): 0.1317 | 50 psig (344.8 kPag): 0.1472 | 60 psig (413.7 kPag): 0.1613 | 70 psig (482.7 kPag): 0.1742 | 80 psig (551.6 kPag): 0.1862 | 90 psig (620.6 kPag): 0.1975 | 100 psig (689.5 kPag): 0.2082
Specifications Connection A
3/8"-16 UNC Threaded Insert
Specifications Material
Brass
Specifications Nominal Orifice Size
16
Specifications Screened
None
