Precision Inch Threaded Inserts Pack, UNC & UNF Sizes, Brass Material
Precision Inch Threaded Inserts Pack, UNC & UNF Sizes, Brass Material
SKU:PRE-5b9308
Enhance fluid control systems with precision inch threaded inserts pack in brass, ensuring accurate flow rates for liquids and gases.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Inch Threaded Inserts Pack, UNC & UNF Sizes, Brass Material
$49.99
Quantity: 1
Claim Your Seller Account
Precision Inch Threaded Inserts Pack, UNC & UNF Sizes, Brass Material
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

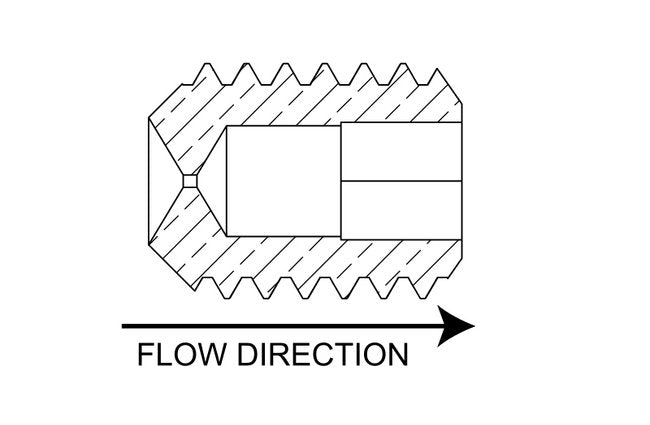

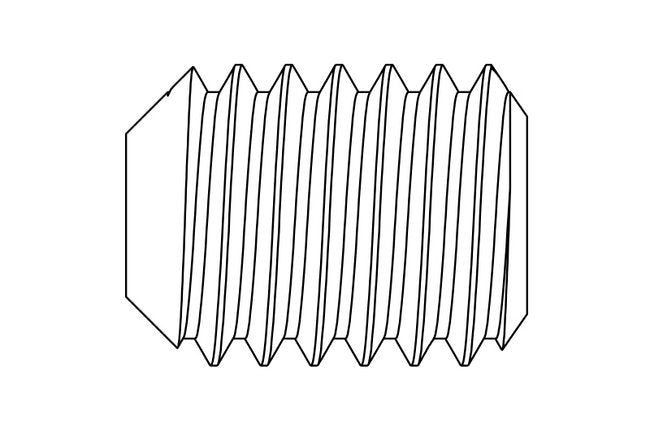

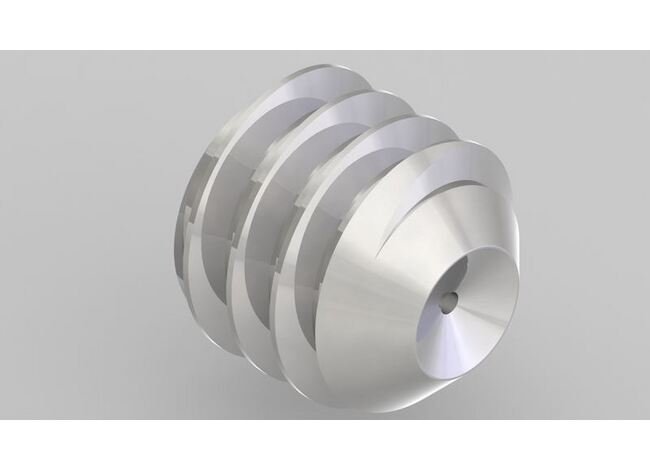

Upgrade your industrial fluid control systems with our precision inch threaded inserts pack. Ideal for fittings, manifolds, and custom parts, these orifice inserts ensure accurate flow rates for liquids and gases. Constructed from high-quality brass, this pack includes 6-32 UNC, 10-32 UNF, 1/4"-20 UNC, 5/16"-18 UNC, and 3/8"-16 UNC inserts. With diameters ranging from .004" to .063", these threaded inserts deliver reliable performance across various applications. Enhance precision and efficiency in your operations with these dependable threaded inserts.
Product Specifications
Dimensions Orifice Diameter
0.026 in
Dimensions Thread Size
3/8-16
Dimensions Total Length
0.50 in
Dimensions Width Across Flats Hex
3/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 4.05 | 5 psig: 9.20 | 10 psig: 13.0 | 15 psig: 16.1 | 20 psig: 18.9 | 25 psig: 21.6 | 30 psig: 24.4 | 40 psig: 29.9 | 50 psig: 35.2 | 60 psig: 40.7 | 70 psig: 46.0 | 80 psig: 51.3 | 90 psig: 56.8 | 100 psig: 62.3
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.91 | 5 psig (34.5 kPag): 4.34 | 10 psig (69.0 kPag): 6.15 | 15 psig (103.4 kPag): 7.58 | 20 psig (137.9 kPag): 8.90 | 25 psig (172.4 kPag): 10.2 | 30 psig (206.9 kPag): 11.5 | 40 psig (275.8 kPag): 14.1 | 50 psig (344.8 kPag): 16.6 | 60 psig (413.7 kPag): 19.2 | 70 psig (482.7 kPag): 21.7 | 80 psig (551.6 kPag): 24.2 | 90 psig (620.6 kPag): 26.8 | 100 psig (689.5 kPag): 29.4
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 7.73 | 20 In. Hg.: 7.73 | 30 In. Hg.: 7.73
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 3.65 | 20 In. Hg. (508 Mm. Hg.): 3.65 | 30 In. Hg. (762 Mm. Hg.): 3.65
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 5.81 | 10 In. Hg.: 7.29
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.74 | 10 In. Hg. (254 Mm. Hg.): 3.44
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.016 | 2 psig: 0.023 | 3 psig: 0.028 | 4 psig: 0.032 | 5 psig: 0.036 | 6 psig: 0.039 | 7 psig: 0.042 | 8 psig: 0.045 | 9 psig: 0.048 | 10 psig: 0.051 | 15 psig: 0.062 | 20 psig: 0.072 | 30 psig: 0.088 | 40 psig: 0.101 | 50 psig: 0.113 | 60 psig: 0.124 | 70 psig: 0.134 | 80 psig: 0.143 | 90 psig: 0.152 | 100 psig: 0.160
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.061 | 2 psig (13.8 kPag): 0.086 | 3 psig (20.7 kPag): 0.105 | 4 psig (27.6 kPag): 0.121 | 5 psig (34.5 kPag): 0.135 | 6 psig (41.4 kPag): 0.135 | 7 psig (48.3 kPag): 0.160 | 8 psig (55.2 kPag): 0.171 | 9 psig (62.1 kPag): 0.182 | 10 psig (69 kPag): 0.192 | 15 psig (103.4 kPag): 0.235 | 20 psig (137.9 kPag): 0.271 | 30 psig (206.9 kPag): 0.332 | 40 psig (275.8 kPag): 0.383 | 50 psig (344.8 kPag): 0.428 | 60 psig (413.7 kPag): 0.469 | 70 psig (482.7 kPag): 0.507 | 80 psig (551.6 kPag): 0.542 | 90 psig (620.6 kPag): 0.575 | 100 psig (689.5 kPag): 0.606
Specifications Connection A
3/8"-16 UNC Threaded Insert
Specifications Material
Brass
Specifications Nominal Orifice Size
26
Specifications Screened
None
