Precision Inch Threaded Inserts Set
Precision Inch Threaded Inserts Set
SKU:PRE-d3dde6
Enhance fluid control with our precision threaded inserts set. Crafted from durable brass, ensuring reliable performance and precise flow rate regulation.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Inch Threaded Inserts Set
$29.99
Quantity: 1
Claim Your Seller Account
Precision Inch Threaded Inserts Set
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

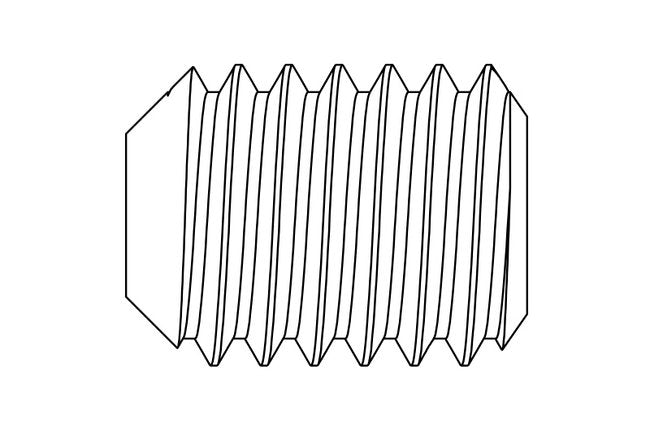

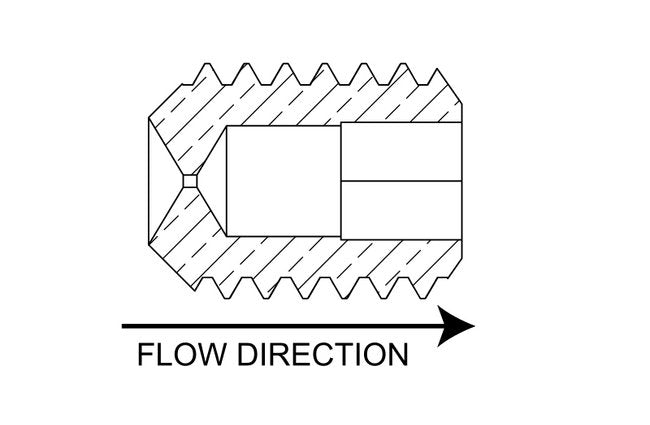

Upgrade your fluid control systems with our Precision Inch Threaded Inserts Set. Designed for precise flow rate regulation of liquids or gases, these inserts feature dimensions including a 0.0079" orifice diameter and compatibility with various thread sizes. Crafted from durable brass material, these inserts ensure reliable performance. With detailed airflow data provided, you can trust these inserts for accurate measurements in your applications.
Product Specifications
Dimensions Orifice Diameter
0.0079 in
Dimensions Thread Size
3/8-16
Dimensions Total Length
0.50 in
Dimensions Width Across Flats Hex
3/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.36 | 5 psig: 0.85 | 10 psig: 1.21 | 15 psig: 1.53 | 20 psig: 1.80 | 25 psig: 2.08 | 30 psig: 2.37 | 40 psig: 2.92 | 50 psig: 3.50 | 60 psig: 4.05 | 70 psig: 4.60 | 80 psig: 5.15 | 90 psig: 5.70 | 100 psig: 6.25
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.170 | 5 psig (34.5 kPag): 0.40 | 10 psig (69.0 kPag): 0.57 | 15 psig (103.4 kPag): 0.72 | 20 psig (137.9 kPag): 0.85 | 25 psig (172.4 kPag): 0.98 | 30 psig (206.9 kPag): 1.12 | 40 psig (275.8 kPag): 1.38 | 50 psig (344.8 kPag): 1.65 | 60 psig (413.7 kPag): 1.91 | 70 psig (482.7 kPag): 2.17 | 80 psig (551.6 kPag): 2.43 | 90 psig (620.6 kPag): 2.69 | 100 psig (689.5 kPag): 2.95
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.744 | 20 In. Hg.: 0.744 | 30 In. Hg.: 0.744
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.351 | 20 In. Hg. (508 Mm. Hg.): 0.351 | 30 In. Hg. (762 Mm. Hg.): 0.351
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.536 | 10 In. Hg.: 0.687
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.253 | 10 In. Hg. (254 Mm. Hg.): 0.324
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0015 | 2 psig: 0.0021 | 3 psig: 0.0026 | 4 psig: 0.0030 | 5 psig: 0.0034 | 6 psig: 0.0037 | 7 psig: 0.0040 | 8 psig: 0.0042 | 9 psig: 0.0045 | 10 psig: 0.0047 | 15 psig: 0.0058 | 20 psig: 0.0067 | 30 psig: 0.0082 | 40 psig: 0.0095 | 50 psig: 0.0106 | 60 psig: 0.0116 | 70 psig: 0.0125 | 80 psig: 0.0134 | 90 psig: 0.0142 | 100 psig: 0.0150
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0057 | 2 psig (13.8 kPag): 0.0080 | 3 psig (20.7 kPag): 0.0098 | 4 psig (27.6 kPag): 0.0114 | 5 psig (34.5 kPag): 0.0127 | 6 psig (41.4 kPag): 0.0127 | 7 psig (48.3 kPag): 0.0150 | 8 psig (55.2 kPag): 0.0161 | 9 psig (62.1 kPag): 0.0170 | 10 psig (69 kPag): 0.0180 | 15 psig (103.4 kPag): 0.0220 | 20 psig (137.9 kPag): 0.0254 | 30 psig (206.9 kPag): 0.0311 | 40 psig (275.8 kPag): 0.0359 | 50 psig (344.8 kPag): 0.0402 | 60 psig (413.7 kPag): 0.0440 | 70 psig (482.7 kPag): 0.0475 | 80 psig (551.6 kPag): 0.0508 | 90 psig (620.6 kPag): 0.0539 | 100 psig (689.5 kPag): 0.0568
Specifications Connection A
3/8"-16 UNC Threaded Insert
Specifications Material
Brass
Specifications Nominal Orifice Size
8
Specifications Screened
None
