Precision Inch Threaded Inserts Set | 6-32 UNC, 10-32 UNF, Brass & 316 SS
Precision Inch Threaded Inserts Set | 6-32 UNC, 10-32 UNF, Brass & 316 SS
SKU:PRE-d581c1
Achieve precise flow control with our Precision Inch Threaded Inserts Set featuring brass & 316 SS materials, ideal for regulating gas or liquid flow rates.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Inch Threaded Inserts Set | 6-32 UNC, 10-32 UNF, Brass & 316 SS
$29.99
Quantity: 1
Claim Your Seller Account
Precision Inch Threaded Inserts Set | 6-32 UNC, 10-32 UNF, Brass & 316 SS
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

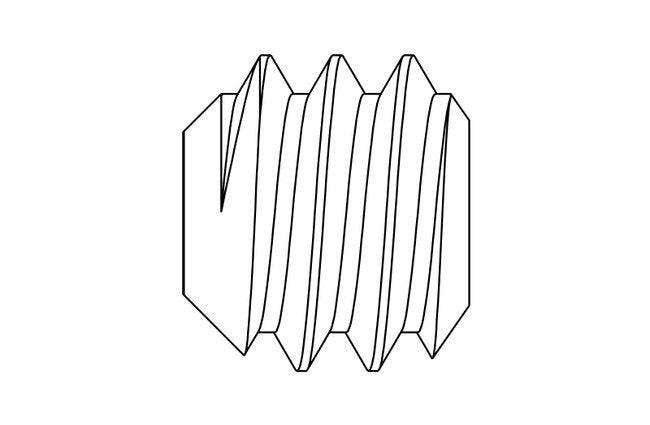

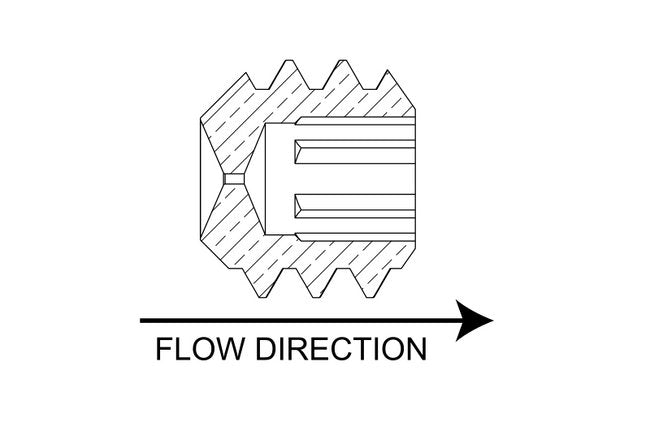

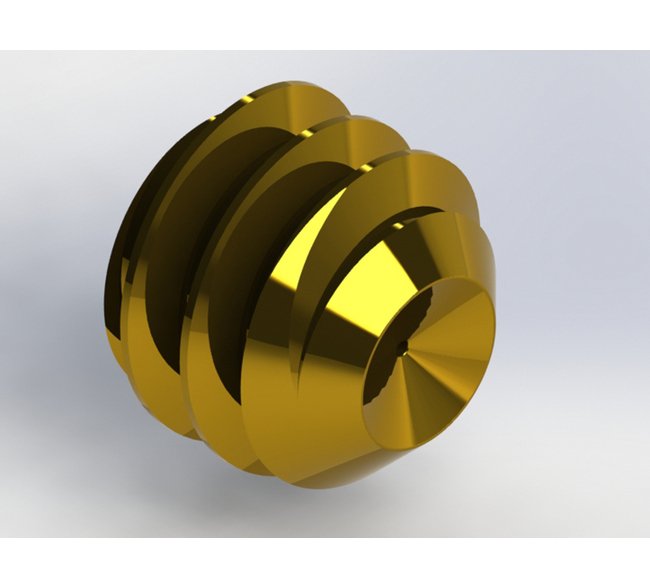

The Precision Inch Threaded Inserts Set offers versatile installation possibilities in fittings, manifolds, or custom parts to precisely regulate liquid or gas flow rates. Constructed from durable brass & 316 SS materials, it includes standard-size orifices ranging from 0.004" to 0.063". Experience optimal flow control with orifice diameters of 0.022 inches and various thread sizes such as 6-32 UNC, providing reliable and efficient performance for a wide range of applications.
Product Specifications
Dimensions Orifice Diameter
0.022 in
Dimensions Thread Size
6-32
Dimensions Total Length
0.13 in
Dimensions Width Across Flats Hex
1/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.73 | 5 psig: 6.29 | 10 psig: 9.17 | 15 psig: 11.3 | 20 psig: 13.5 | 25 psig: 15.5 | 30 psig: 17.4 | 40 psig: 21.4 | 50 psig: 25.2 | 60 psig: 29.2 | 70 psig: 33.1 | 80 psig: 37.1 | 90 psig: 40.9 | 100 psig: 44.7
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.29 | 5 psig (34.5 kPag): 2.97 | 10 psig (69.0 kPag): 4.33 | 15 psig (103.4 kPag): 5.35 | 20 psig (137.9 kPag): 6.35 | 25 psig (172.4 kPag): 7.30 | 30 psig (206.9 kPag): 8.23 | 40 psig (275.8 kPag): 10.1 | 50 psig (344.8 kPag): 11.9 | 60 psig (413.7 kPag): 13.8 | 70 psig (482.7 kPag): 15.6 | 80 psig (551.6 kPag): 17.5 | 90 psig (620.6 kPag): 19.3 | 100 psig (689.5 kPag): 21.1
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 5.53 | 20 In. Hg.: 5.53 | 30 In. Hg.: 5.53
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.61 | 20 In. Hg. (508 Mm. Hg.): 2.61 | 30 In. Hg. (762 Mm. Hg.): 2.61
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 4.03 | 10 In. Hg.: 5.17
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.90 | 10 In. Hg. (254 Mm. Hg.): 2.44
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.011 | 2 psig: 0.016 | 3 psig: 0.019 | 4 psig: 0.022 | 5 psig: 0.025 | 6 psig: 0.027 | 7 psig: 0.029 | 8 psig: 0.031 | 9 psig: 0.033 | 10 psig: 0.035 | 15 psig: 0.043 | 20 psig: 0.049 | 30 psig: 0.060 | 40 psig: 0.070 | 50 psig: 0.078 | 60 psig: 0.085 | 70 psig: 0.092 | 80 psig: 0.098 | 90 psig: 0.104 | 100 psig: 0.110
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.042 | 2 psig (13.8 kPag): 0.059 | 3 psig (20.7 kPag): 0.072 | 4 psig (27.6 kPag): 0.083 | 5 psig (34.5 kPag): 0.093 | 6 psig (41.4 kPag): 0.093 | 7 psig (48.3 kPag): 0.110 | 8 psig (55.2 kPag): 0.118 | 9 psig (62.1 kPag): 0.125 | 10 psig (69 kPag): 0.132 | 15 psig (103.4 kPag): 0.161 | 20 psig (137.9 kPag): 0.186 | 30 psig (206.9 kPag): 0.228 | 40 psig (275.8 kPag): 0.263 | 50 psig (344.8 kPag): 0.294 | 60 psig (413.7 kPag): 0.323 | 70 psig (482.7 kPag): 0.348 | 80 psig (551.6 kPag): 0.372 | 90 psig (620.6 kPag): 0.395 | 100 psig (689.5 kPag): 0.416
Specifications Connection A
6-32 UNC Threaded Insert
Specifications Material
Brass
Specifications Nominal Orifice Size
22
Specifications Screened
None
