Precision Inch Threaded Inserts Set, 6-32 UNC to 3/8-16 UNC
Precision Inch Threaded Inserts Set, 6-32 UNC to 3/8-16 UNC
SKU:PRE-ea9189
Enhance flow control with our Precision Inch Threaded Inserts Set for accurate liquid or gas flow rates.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Inch Threaded Inserts Set, 6-32 UNC to 3/8-16 UNC
$29.99
Quantity: 1
Claim Your Seller Account
Precision Inch Threaded Inserts Set, 6-32 UNC to 3/8-16 UNC
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

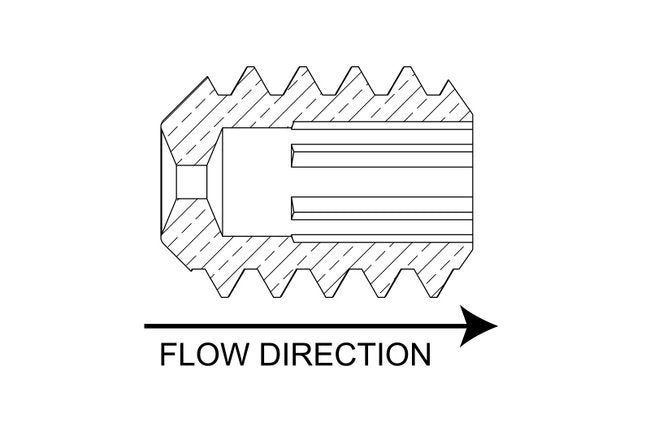

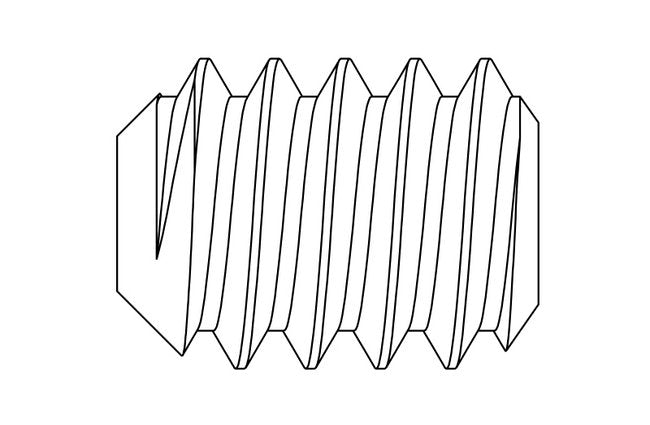

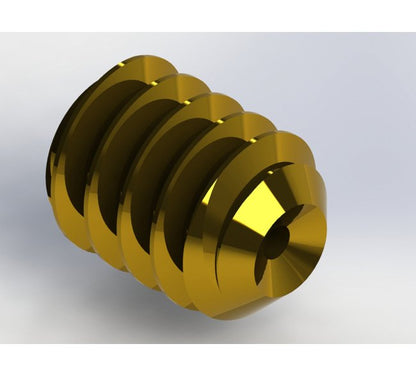

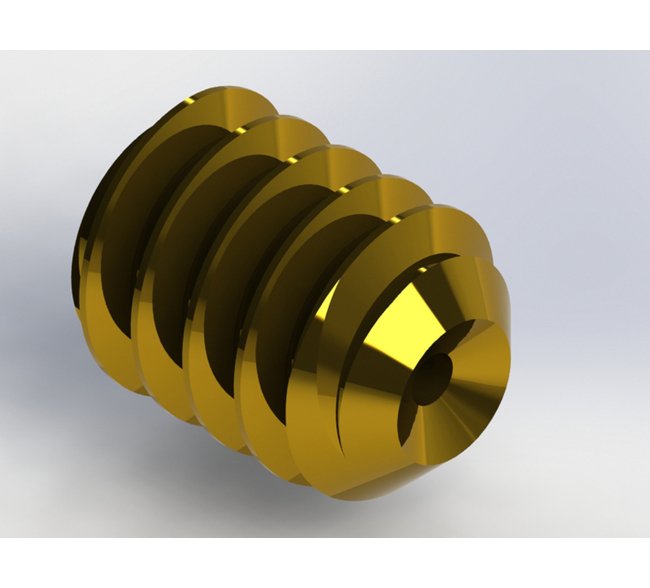

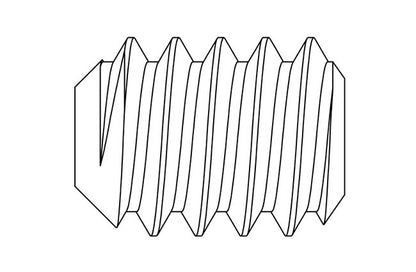

Upgrade your precision flow control solutions with our Precision Inch Threaded Inserts Set. Designed for fittings, manifolds, or custom parts, these set screw style orifice inserts offer a range of standard orifice sizes from 0.004" to 0.063". Crafted from high-quality Brass and 316 SS materials, these inserts ensure durability and reliability for liquid or gas flow rate establishment. With detailed flow data provided, including air and water flow rates, this set is a perfect fit for industrial and institutional applications.
Product Specifications
Dimensions Orifice Diameter
0.0102 in
Dimensions Thread Size
6-32
Dimensions Total Length
0.19 in
Dimensions Width Across Flats Hex
1/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.593 | 5 psig: 1.37 | 10 psig: 1.97 | 15 psig: 2.48 | 20 psig: 2.92 | 25 psig: 3.37 | 30 psig: 3.81 | 40 psig: 4.68 | 50 psig: 5.55 | 60 psig: 6.40 | 70 psig: 7.27 | 80 psig: 8.12 | 90 psig: 8.96 | 100 psig: 9.81
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.280 | 5 psig (34.5 kPag): 0.65 | 10 psig (69.0 kPag): 0.93 | 15 psig (103.4 kPag): 1.17 | 20 psig (137.9 kPag): 1.38 | 25 psig (172.4 kPag): 1.59 | 30 psig (206.9 kPag): 1.80 | 40 psig (275.8 kPag): 2.21 | 50 psig (344.8 kPag): 2.62 | 60 psig (413.7 kPag): 3.02 | 70 psig (482.7 kPag): 3.43 | 80 psig (551.6 kPag): 3.83 | 90 psig (620.6 kPag): 4.23 | 100 psig (689.5 kPag): 4.63
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 1.20 | 20 In. Hg.: 1.20 | 30 In. Hg.: 1.20
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.566 | 20 In. Hg. (508 Mm. Hg.): 0.566 | 30 In. Hg. (762 Mm. Hg.): 0.566
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.86 | 10 In. Hg.: 1.10
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.406 | 10 In. Hg. (254 Mm. Hg.): 0.519
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0025 | 2 psig: 0.0035 | 3 psig: 0.0043 | 4 psig: 0.005 | 5 psig: 0.0056 | 6 psig: 0.0061 | 7 psig: 0.0066 | 8 psig: 0.0071 | 9 psig: 0.0075 | 10 psig: 0.0079 | 15 psig: 0.0097 | 20 psig: 0.0112 | 30 psig: 0.0137 | 40 psig: 0.0158 | 50 psig: 0.0177 | 60 psig: 0.0194 | 70 psig: 0.0209 | 80 psig: 0.0224 | 90 psig: 0.0237 | 100 psig: 0.0250
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0095 | 2 psig (13.8 kPag): 0.0134 | 3 psig (20.7 kPag): 0.0164 | 4 psig (27.6 kPag): 0.0189 | 5 psig (34.5 kPag): 0.0212 | 6 psig (41.4 kPag): 0.0212 | 7 psig (48.3 kPag): 0.0250 | 8 psig (55.2 kPag): 0.0268 | 9 psig (62.1 kPag): 0.0284 | 10 psig (69 kPag): 0.0299 | 15 psig (103.4 kPag): 0.0367 | 20 psig (137.9 kPag): 0.0423 | 30 psig (206.9 kPag): 0.0518 | 40 psig (275.8 kPag): 0.0599 | 50 psig (344.8 kPag): 0.0669 | 60 psig (413.7 kPag): 0.0733 | 70 psig (482.7 kPag): 0.0792 | 80 psig (551.6 kPag): 0.0846 | 90 psig (620.6 kPag): 0.0898 | 100 psig (689.5 kPag): 0.0946
Specifications Connection A
6-32 UNC Threaded Insert
Specifications Material
Brass
Specifications Nominal Orifice Size
10
Specifications Screened
None
