Precision Inch Threaded Inserts Set, 6-32 UNC to 3/8-16 UNC, Brass & SS, Flow Rate Control
Precision Inch Threaded Inserts Set, 6-32 UNC to 3/8-16 UNC, Brass & SS, Flow Rate Control
SKU:PRE-6cc43e
Achieve precise liquid/gas flow control with our Inch Threaded Inserts set. Brass & SS materials, various thread sizes. Ideal for consumer & institutional applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Inch Threaded Inserts Set, 6-32 UNC to 3/8-16 UNC, Brass & SS, Flow Rate Control
$49.99
Quantity: 1
Claim Your Seller Account
Precision Inch Threaded Inserts Set, 6-32 UNC to 3/8-16 UNC, Brass & SS, Flow Rate Control
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

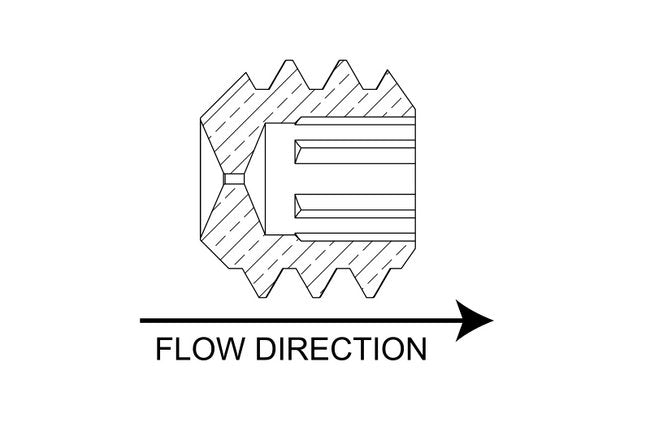

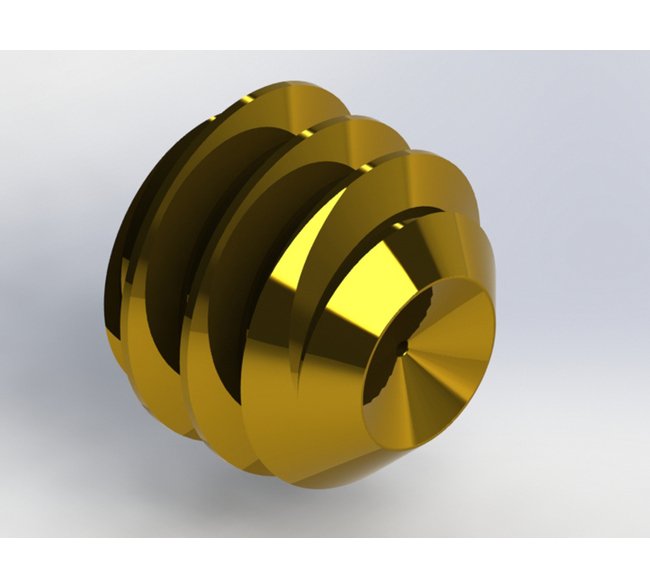

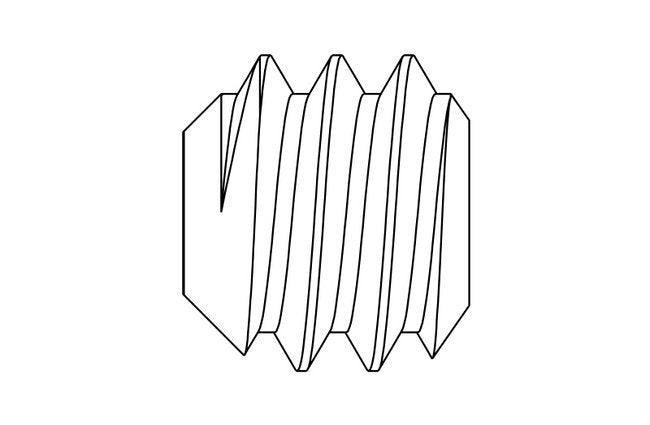

The Precision Inch Threaded Inserts set is designed for precise flow rate control of liquids or gases in fittings, manifolds, or custom parts. With orifice diameters ranging from .004" to .063", this set includes 6-32 UNC, 10-32 UNF, 1/4"-20 UNC, 5/16"-18 UNC, and 3/8"-16 UNC sizes. Crafted from high-quality brass or 316 SS, these inserts ensure durability and reliability. Ideal for industrial applications requiring exact flow management, this set offers a comprehensive solution for both consumer and institutional buyers.
Product Specifications
Dimensions Orifice Diameter
0.023 in
Dimensions Thread Size
6-32
Dimensions Total Length
0.13 in
Dimensions Width Across Flats Hex
1/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.99 | 5 psig: 6.87 | 10 psig: 10.1 | 15 psig: 12.6 | 20 psig: 14.7 | 25 psig: 16.8 | 30 psig: 19.0 | 40 psig: 23.3 | 50 psig: 27.5 | 60 psig: 31.8 | 70 psig: 36.0 | 80 psig: 40.3 | 90 psig: 44.5 | 100 psig: 48.7
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.41 | 5 psig (34.5 kPag): 3.24 | 10 psig (69.0 kPag): 4.75 | 15 psig (103.4 kPag): 5.93 | 20 psig (137.9 kPag): 6.95 | 25 psig (172.4 kPag): 7.95 | 30 psig (206.9 kPag): 8.98 | 40 psig (275.8 kPag): 11.0 | 50 psig (344.8 kPag): 13.0 | 60 psig (413.7 kPag): 15.0 | 70 psig (482.7 kPag): 17.0 | 80 psig (551.6 kPag): 19.0 | 90 psig (620.6 kPag): 21.0 | 100 psig (689.5 kPag): 23.0
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 6.04 | 20 In. Hg.: 6.04 | 30 In. Hg.: 6.04
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.85 | 20 In. Hg. (508 Mm. Hg.): 2.85 | 30 In. Hg. (762 Mm. Hg.): 2.85
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 4.45 | 10 In. Hg.: 5.68
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.10 | 10 In. Hg. (254 Mm. Hg.): 2.68
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.012 | 2 psig: 0.017 | 3 psig: 0.021 | 4 psig: 0.024 | 5 psig: 0.027 | 6 psig: 0.029 | 7 psig: 0.032 | 8 psig: 0.034 | 9 psig: 0.036 | 10 psig: 0.038 | 15 psig: 0.046 | 20 psig: 0.054 | 30 psig: 0.066 | 40 psig: 0.076 | 50 psig: 0.085 | 60 psig: 0.093 | 70 psig: 0.100 | 80 psig: 0.107 | 90 psig: 0.114 | 100 psig: 0.120
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.045 | 2 psig (13.8 kPag): 0.064 | 3 psig (20.7 kPag): 0.079 | 4 psig (27.6 kPag): 0.091 | 5 psig (34.5 kPag): 0.102 | 6 psig (41.4 kPag): 0.102 | 7 psig (48.3 kPag): 0.120 | 8 psig (55.2 kPag): 0.128 | 9 psig (62.1 kPag): 0.136 | 10 psig (69 kPag): 0.144 | 15 psig (103.4 kPag): 0.176 | 20 psig (137.9 kPag): 0.203 | 30 psig (206.9 kPag): 0.249 | 40 psig (275.8 kPag): 0.287 | 50 psig (344.8 kPag): 0.321 | 60 psig (413.7 kPag): 0.352 | 70 psig (482.7 kPag): 0.380 | 80 psig (551.6 kPag): 0.406 | 90 psig (620.6 kPag): 0.431 | 100 psig (689.5 kPag): 0.454
Specifications Connection A
6-32 UNC Threaded Insert
Specifications Material
Brass
Specifications Nominal Orifice Size
23
Specifications Screened
None
