Precision Inch Threaded Inserts Set, Multiple Thread Sizes
Precision Inch Threaded Inserts Set, Multiple Thread Sizes
SKU:PRE-290a68
Enhance fluid control with our precise inch threaded inserts set for accurate flow rates. Available in brass and 316 SS.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Inch Threaded Inserts Set, Multiple Thread Sizes
$49.99
Quantity: 1
Claim Your Seller Account
Precision Inch Threaded Inserts Set, Multiple Thread Sizes
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

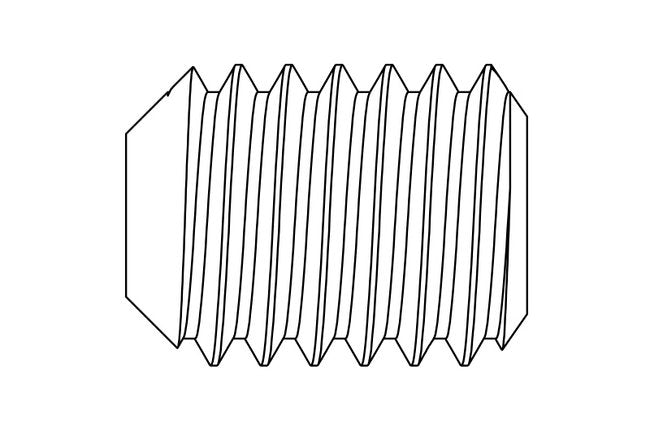

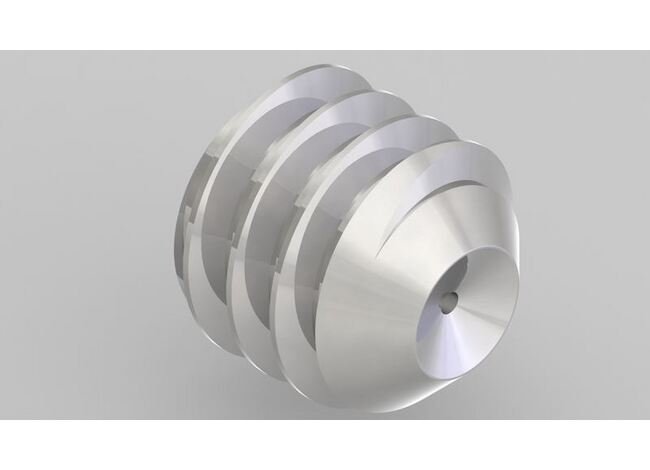

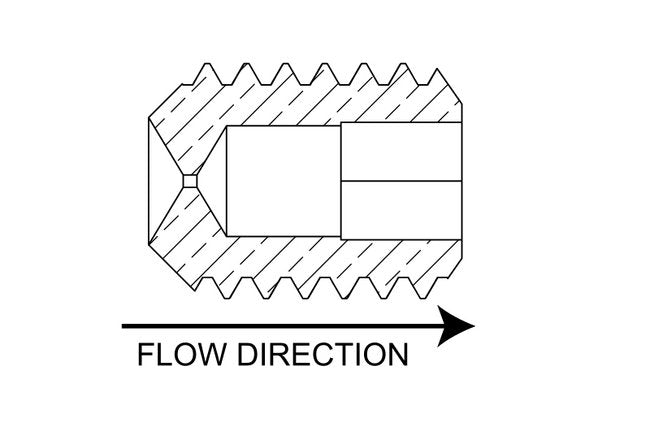

Enhance your fluid control systems with our precision inch threaded inserts set. These set screw style orifice inserts allow for precise flow rate control in various applications. With standard orifice sizes ranging from .004" to .063", and available in brass and 316 SS materials, these threaded inserts are versatile and durable. The 3/8-16 UNC threaded insert features dimensions of 0.02 in orifice diameter, 3/16 in width across flats (hex), and a total length of 0.50 in. Benefit from accurate air and water flow data to meet your specific requirements.
Product Specifications
Dimensions Orifice Diameter
0.02 in
Dimensions Thread Size
3/8-16
Dimensions Total Length
0.50 in
Dimensions Width Across Flats Hex
3/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.22 | 5 psig: 5.23 | 10 psig: 6.70 | 15 psig: 8.50 | 20 psig: 10.3 | 25 psig: 11.8 | 30 psig: 13.4 | 40 psig: 16.5 | 50 psig: 19.6 | 60 psig: 22.7 | 70 psig: 25.9 | 80 psig: 29.0 | 90 psig: 32.2 | 100 psig: 35.2
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.05 | 5 psig (34.5 kPag): 2.47 | 10 psig (69.0 kPag): 3.16 | 15 psig (103.4 kPag): 4.01 | 20 psig (137.9 kPag): 4.84 | 25 psig (172.4 kPag): 5.59 | 30 psig (206.9 kPag): 6.33 | 40 psig (275.8 kPag): 7.81 | 50 psig (344.8 kPag): 9.26 | 60 psig (413.7 kPag): 10.7 | 70 psig (482.7 kPag): 12.2 | 80 psig (551.6 kPag): 13.7 | 90 psig (620.6 kPag): 15.2 | 100 psig (689.5 kPag): 16.6
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 4.64 | 20 In. Hg.: 4.64 | 30 In. Hg.: 4.64
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.19 | 20 In. Hg. (508 Mm. Hg.): 2.19 | 30 In. Hg. (762 Mm. Hg.): 2.19
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 3.28 | 10 In. Hg.: 4.15
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.55 | 10 In. Hg. (254 Mm. Hg.): 1.96
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.009 | 2 psig: 0.012 | 3 psig: 0.015 | 4 psig: 0.018 | 5 psig: 0.020 | 6 psig: 0.022 | 7 psig: 0.023 | 8 psig: 0.025 | 9 psig: 0.026 | 10 psig: 0.028 | 15 psig: 0.034 | 20 psig: 0.039 | 30 psig: 0.048 | 40 psig: 0.056 | 50 psig: 0.062 | 60 psig: 0.068 | 70 psig: 0.074 | 80 psig: 0.079 | 90 psig: 0.083 | 100 psig: 0.088
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.033 | 2 psig (13.8 kPag): 0.047 | 3 psig (20.7 kPag): 0.058 | 4 psig (27.6 kPag): 0.067 | 5 psig (34.5 kPag): 0.074 | 6 psig (41.4 kPag): 0.074 | 7 psig (48.3 kPag): 0.088 | 8 psig (55.2 kPag): 0.094 | 9 psig (62.1 kPag): 0.100 | 10 psig (69 kPag): 0.105 | 15 psig (103.4 kPag): 0.129 | 20 psig (137.9 kPag): 0.149 | 30 psig (206.9 kPag): 0.182 | 40 psig (275.8 kPag): 0.211 | 50 psig (344.8 kPag): 0.236 | 60 psig (413.7 kPag): 0.258 | 70 psig (482.7 kPag): 0.279 | 80 psig (551.6 kPag): 0.298 | 90 psig (620.6 kPag): 0.316 | 100 psig (689.5 kPag): 0.333
Specifications Connection A
3/8"-16 UNC Threaded Insert
Specifications Material
Brass
Specifications Nominal Orifice Size
20
Specifications Screened
None
