Precision Inch Threaded Inserts Set, Various Sizes, 316 SS Material
Precision Inch Threaded Inserts Set, Various Sizes, 316 SS Material
SKU:PRE-4b1405
Enhance fluid control with precise Inch Threaded Inserts - 316 SS
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Inch Threaded Inserts Set, Various Sizes, 316 SS Material
$29.99
Quantity: 1
Claim Your Seller Account
Precision Inch Threaded Inserts Set, Various Sizes, 316 SS Material
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

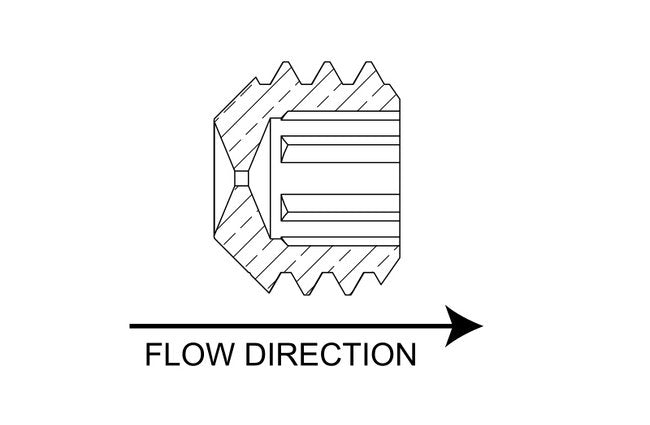

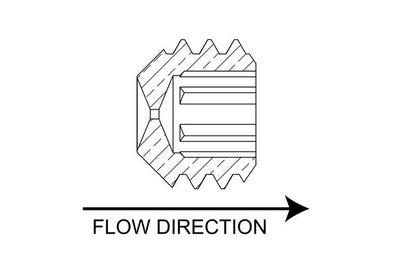

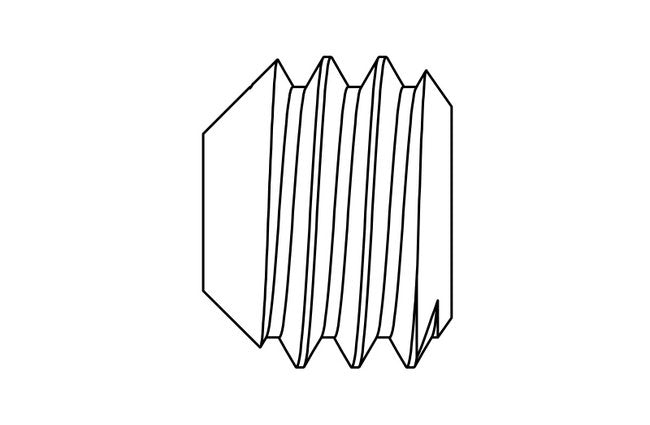

Upgrade your fluid control systems with our precision inch threaded inserts set. With orifice diameters ranging from .004" to .063", and materials available in both brass and 316 SS, these inserts ensure accurate flow rates for liquids or gases. This set includes threaded inserts in sizes 6-32 UNC, 10-32 UNF, 1/4"-20 UNC, 5/16"-18 UNC, and 3/8"-16 UNC, catering to diverse industrial needs.
Product Specifications
Dimensions Orifice Diameter
0.028 in
Dimensions Thread Size
5/16-18
Dimensions Total Length
0.25 in
Dimensions Width Across Flats Hex
5/32 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 4.68 | 5 psig: 10.5 | 10 psig: 15.2 | 15 psig: 18.6 | 20 psig: 21.8 | 25 psig: 24.8 | 30 psig: 28.0 | 40 psig: 34.1 | 50 psig: 40.3 | 60 psig: 46.4 | 70 psig: 52.5 | 80 psig: 58.7 | 90 psig: 65.0 | 100 psig: 71.4
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 2.21 | 5 psig (34.5 kPag): 4.94 | 10 psig (69.0 kPag): 7.18 | 15 psig (103.4 kPag): 8.78 | 20 psig (137.9 kPag): 10.3 | 25 psig (172.4 kPag): 11.7 | 30 psig (206.9 kPag): 13.2 | 40 psig (275.8 kPag): 16.1 | 50 psig (344.8 kPag): 19.0 | 60 psig (413.7 kPag): 21.9 | 70 psig (482.7 kPag): 24.8 | 80 psig (551.6 kPag): 27.7 | 90 psig (620.6 kPag): 30.7 | 100 psig (689.5 kPag): 33.7
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 8.90 | 20 In. Hg.: 8.9 | 30 In. Hg.: 8.90
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 4.20 | 20 In. Hg. (508 Mm. Hg.): 4.20 | 30 In. Hg. (762 Mm. Hg.): 4.20
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 6.7 | 10 In. Hg.: 8.48
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 3.16 | 10 In. Hg. (254 Mm. Hg.): 4.00
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.018 | 2 psig: 0.025 | 3 psig: 0.031 | 4 psig: 0.036 | 5 psig: 0.040 | 6 psig: 0.044 | 7 psig: 0.048 | 8 psig: 0.051 | 9 psig: 0.054 | 10 psig: 0.057 | 15 psig: 0.070 | 20 psig: 0.080 | 30 psig: 0.099 | 40 psig: 0.114 | 50 psig: 0.127 | 60 psig: 0.139 | 70 psig: 0.151 | 80 psig: 0.161 | 90 psig: 0.171 | 100 psig: 0.180
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.068 | 2 psig (13.8 kPag): 0.096 | 3 psig (20.7 kPag): 0.118 | 4 psig (27.6 kPag): 0.136 | 5 psig (34.5 kPag): 0.152 | 6 psig (41.4 kPag): 0.152 | 7 psig (48.3 kPag): 0.180 | 8 psig (55.2 kPag): 0.193 | 9 psig (62.1 kPag): 0.204 | 10 psig (69 kPag): 0.215 | 15 psig (103.4 kPag): 0.264 | 20 psig (137.9 kPag): 0.305 | 30 psig (206.9 kPag): 0.373 | 40 psig (275.8 kPag): 0.431 | 50 psig (344.8 kPag): 0.482 | 60 psig (413.7 kPag): 0.528 | 70 psig (482.7 kPag): 0.570 | 80 psig (551.6 kPag): 0.609 | 90 psig (620.6 kPag): 0.646 | 100 psig (689.5 kPag): 0.681
Specifications Connection A
5/16"-18 UNC Threaded Insert
Specifications Material
316 SS
Specifications Nominal Orifice Size
28
Specifications Screened
None
