Precision Inch Threaded Inserts Set, Various Sizes, 316 SS Material
Precision Inch Threaded Inserts Set, Various Sizes, 316 SS Material
SKU:PRE-01707a
Enhance fluid flow regulation with our Precision Inch Threaded Inserts Set in 316 SS material. Achieve precise flow rates with various orifice sizes. Ideal for fittings, manifolds, and custom parts.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Inch Threaded Inserts Set, Various Sizes, 316 SS Material
$29.99
Quantity: 1
Claim Your Seller Account
Precision Inch Threaded Inserts Set, Various Sizes, 316 SS Material
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

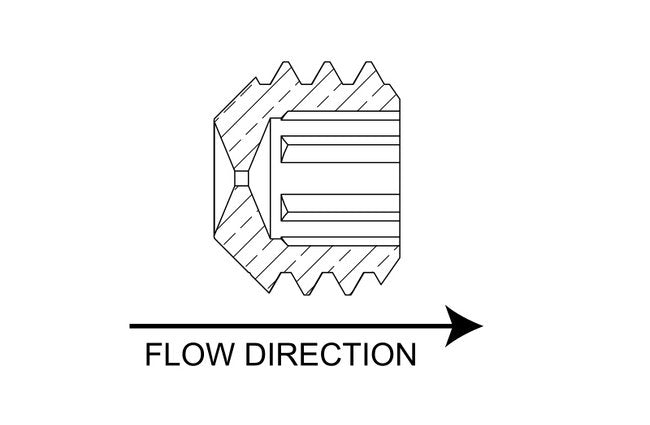

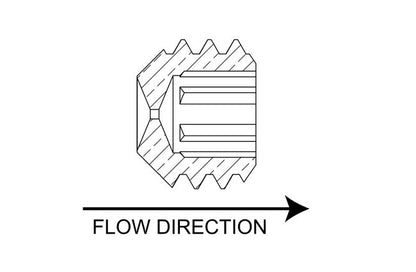

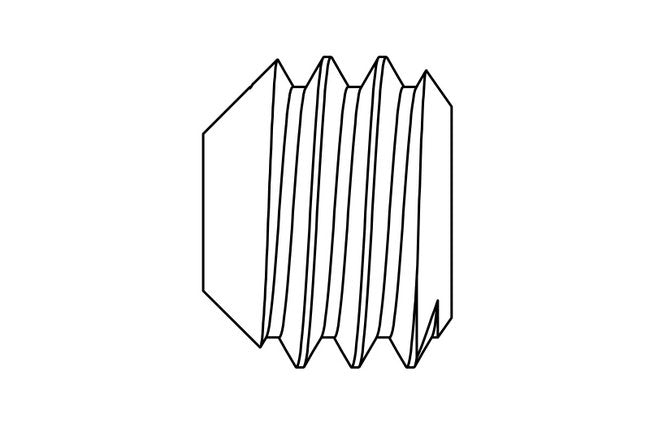

Upgrade your fluid flow control with our Precision Inch Threaded Inserts Set. Suitable for fittings, manifolds, or custom parts, these orifice inserts in 316 SS material offer a range of orifice sizes for enhanced liquid or gas flow regulation. With dimensions like 0.025" orifice diameter and 5/16-18 UNC thread size, these inserts ensure precise flow rates. The set includes multiple popular sizes, catering to diverse applications in both consumer and institutional sectors.
Product Specifications
Dimensions Orifice Diameter
0.025 in
Dimensions Thread Size
5/16-18
Dimensions Total Length
0.25 in
Dimensions Width Across Flats Hex
5/32 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 3.54 | 5 psig: 8.12 | 10 psig: 11.8 | 15 psig: 14.7 | 20 psig: 17.3 | 25 psig: 19.9 | 30 psig: 22.5 | 40 psig: 27.5 | 50 psig: 32.6 | 60 psig: 37.5 | 70 psig: 42.6 | 80 psig: 47.7 | 90 psig: 52.8 | 100 psig: 58.1
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.67 | 5 psig (34.5 kPag): 3.83 | 10 psig (69.0 kPag): 5.55 | 15 psig (103.4 kPag): 6.95 | 20 psig (137.9 kPag): 8.15 | 25 psig (172.4 kPag): 9.38 | 30 psig (206.9 kPag): 10.6 | 40 psig (275.8 kPag): 13.0 | 50 psig (344.8 kPag): 15.4 | 60 psig (413.7 kPag): 17.7 | 70 psig (482.7 kPag): 20.1 | 80 psig (551.6 kPag): 22.5 | 90 psig (620.6 kPag): 24.9 | 100 psig (689.5 kPag): 27.4
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 7.08 | 20 In. Hg.: 7.08 | 30 In. Hg.: 7.08
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 3.34 | 20 In. Hg. (508 Mm. Hg.): 3.34 | 30 In. Hg. (762 Mm. Hg.): 3.34
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 5.25 | 10 In. Hg.: 6.63
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.48 | 10 In. Hg. (254 Mm. Hg.): 3.13
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.014 | 2 psig: 0.020 | 3 psig: 0.024 | 4 psig: 0.028 | 5 psig: 0.031 | 6 psig: 0.034 | 7 psig: 0.037 | 8 psig: 0.040 | 9 psig: 0.042 | 10 psig: 0.044 | 15 psig: 0.054 | 20 psig: 0.063 | 30 psig: 0.077 | 40 psig: 0.089 | 50 psig: 0.099 | 60 psig: 0.108 | 70 psig: 0.117 | 80 psig: 0.125 | 90 psig: 0.133 | 100 psig: 0.140
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.053 | 2 psig (13.8 kPag): 0.075 | 3 psig (20.7 kPag): 0.092 | 4 psig (27.6 kPag): 0.106 | 5 psig (34.5 kPag): 0.119 | 6 psig (41.4 kPag): 0.119 | 7 psig (48.3 kPag): 0.140 | 8 psig (55.2 kPag): 0.150 | 9 psig (62.1 kPag): 0.159 | 10 psig (69 kPag): 0.168 | 15 psig (103.4 kPag): 0.205 | 20 psig (137.9 kPag): 0.237 | 30 psig (206.9 kPag): 0.290 | 40 psig (275.8 kPag): 0.335 | 50 psig (344.8 kPag): 0.375 | 60 psig (413.7 kPag): 0.411 | 70 psig (482.7 kPag): 0.443 | 80 psig (551.6 kPag): 0.474 | 90 psig (620.6 kPag): 0.503 | 100 psig (689.5 kPag): 0.530
Specifications Connection A
5/16"-18 UNC Threaded Insert
Specifications Material
316 SS
Specifications Nominal Orifice Size
25
Specifications Screened
None
