Precision Inch Threaded Inserts Set - Various Thread Sizes
Precision Inch Threaded Inserts Set - Various Thread Sizes
SKU:PRE-3722f7
Enhance fluid control with our precision brass threaded inserts in various sizes for consistent flow rates in liquids and gases.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Inch Threaded Inserts Set - Various Thread Sizes
$24.99
Quantity: 1
Claim Your Seller Account
Precision Inch Threaded Inserts Set - Various Thread Sizes
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

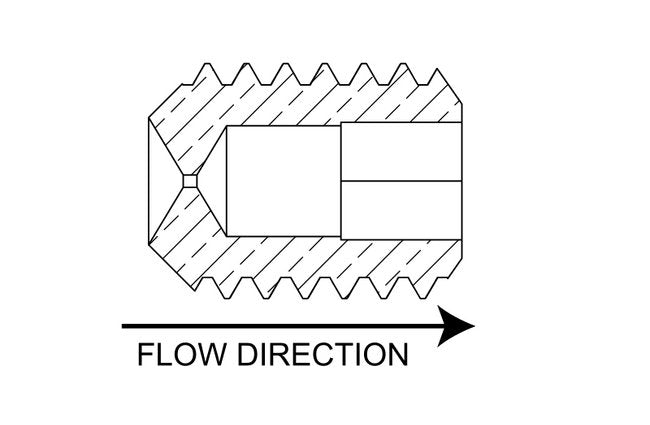

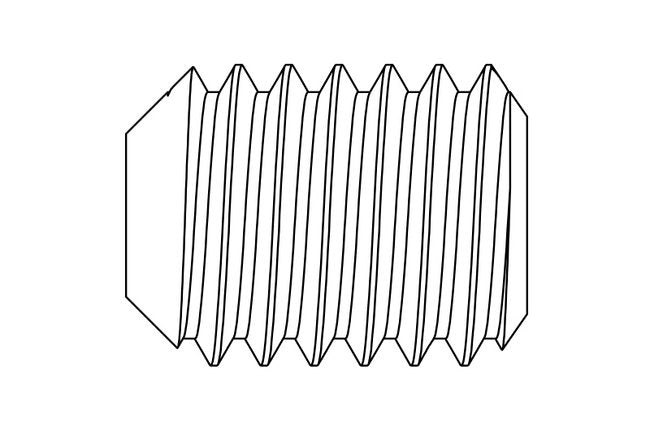

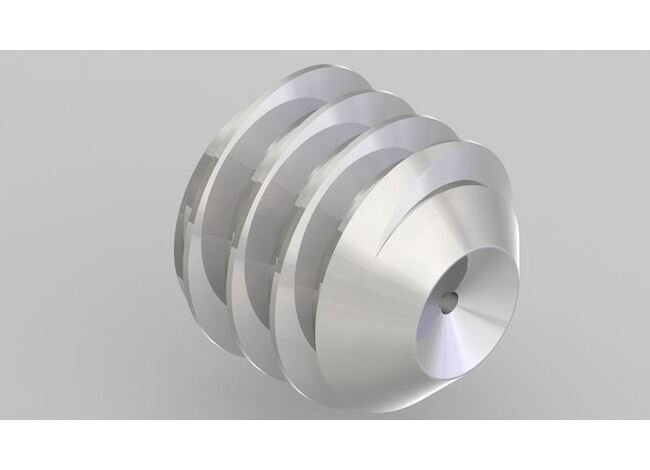

Upgrade your fluid control systems with these precision inch threaded inserts in 6-32 UNC, 10-32 UNF, 1/4"-20 UNC, 5/16"-18 UNC, and 3/8"-16 UNC sizes. Made from durable brass, these orifice inserts ensure reliable flow rates for liquids and gases. With an orifice diameter of 0.018 inches and superior air and water flow data, these inserts offer optimal performance. Ideal for fittings, manifolds, or custom parts, meeting stringent industry standards for precision and reliability.
Product Specifications
Dimensions Orifice Diameter
0.018 in
Dimensions Thread Size
3/8-16
Dimensions Total Length
0.50 in
Dimensions Width Across Flats Hex
3/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.82 | 5 psig: 4.20 | 10 psig: 5.38 | 15 psig: 6.84 | 20 psig: 8.18 | 25 psig: 9.43 | 30 psig: 10.7 | 40 psig: 13.2 | 50 psig: 15.7 | 60 psig: 18.2 | 70 psig: 20.7 | 80 psig: 23.3 | 90 psig: 25.9 | 100 psig: 28.4
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.86 | 5 psig (34.5 kPag): 1.98 | 10 psig (69.0 kPag): 2.54 | 15 psig (103.4 kPag): 3.23 | 20 psig (137.9 kPag): 3.86 | 25 psig (172.4 kPag): 4.45 | 30 psig (206.9 kPag): 5.03 | 40 psig (275.8 kPag): 6.21 | 50 psig (344.8 kPag): 7.40 | 60 psig (413.7 kPag): 8.58 | 70 psig (482.7 kPag): 9.77 | 80 psig (551.6 kPag): 11.0 | 90 psig (620.6 kPag): 12.2 | 100 psig (689.5 kPag): 13.4
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 3.71 | 20 In. Hg.: 3.71 | 30 In. Hg.: 3.71
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.75 | 20 In. Hg. (508 Mm. Hg.): 1.75 | 30 In. Hg. (762 Mm. Hg.): 1.75
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 2.7 | 10 In. Hg.: 3.35
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.28 | 10 In. Hg. (254 Mm. Hg.): 1.58
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0073 | 2 psig: 0.0103 | 3 psig: 0.0126 | 4 psig: 0.0146 | 5 psig: 0.0163 | 6 psig: 0.0179 | 7 psig: 0.0193 | 8 psig: 0.0206 | 9 psig: 0.0219 | 10 psig: 0.0231 | 15 psig: 0.0283 | 20 psig: 0.0326 | 30 psig: 0.0400 | 40 psig: 0.0462 | 50 psig: 0.0516 | 60 psig: 0.0565 | 70 psig: 0.0611 | 80 psig: 0.0653 | 90 psig: 0.0693 | 100 psig: 0.0730
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0276 | 2 psig (13.8 kPag): 0.0391 | 3 psig (20.7 kPag): 0.0479 | 4 psig (27.6 kPag): 0.0553 | 5 psig (34.5 kPag): 0.0618 | 6 psig (41.4 kPag): 0.0618 | 7 psig (48.3 kPag): 0.0731 | 8 psig (55.2 kPag): 0.0782 | 9 psig (62.1 kPag): 0.0829 | 10 psig (69 kPag): 0.0874 | 15 psig (103.4 kPag): 0.1070 | 20 psig (137.9 kPag): 0.1236 | 30 psig (206.9 kPag): 0.1514 | 40 psig (275.8 kPag): 0.1748 | 50 psig (344.8 kPag): 0.1954 | 60 psig (413.7 kPag): 0.2140 | 70 psig (482.7 kPag): 0.2312 | 80 psig (551.6 kPag): 0.2472 | 90 psig (620.6 kPag): 0.2622 | 100 psig (689.5 kPag): 0.2763
Specifications Connection A
3/8"-16 UNC Threaded Insert
Specifications Material
Brass
Specifications Nominal Orifice Size
18
Specifications Screened
None
