Precision Inch Threaded Inserts Variety Pack
Precision Inch Threaded Inserts Variety Pack
SKU:PRE-09731a
Enhance fluid control with our Precision Inch Threaded Inserts Variety Pack. Ensure precise flow rates with brass inserts in various sizes for fittings or custom parts.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Inch Threaded Inserts Variety Pack
$49.99
Quantity: 1
Claim Your Seller Account
Precision Inch Threaded Inserts Variety Pack
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

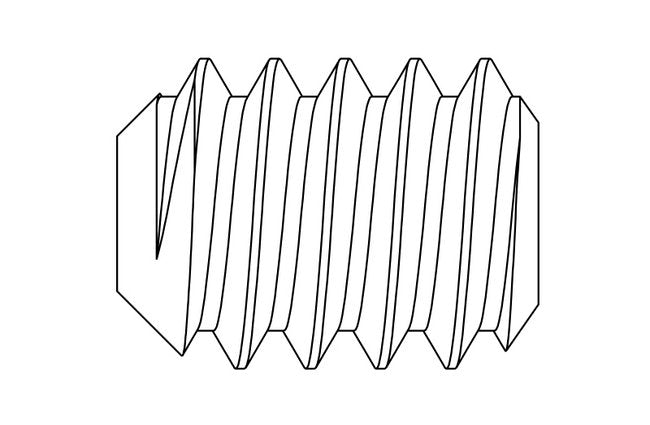

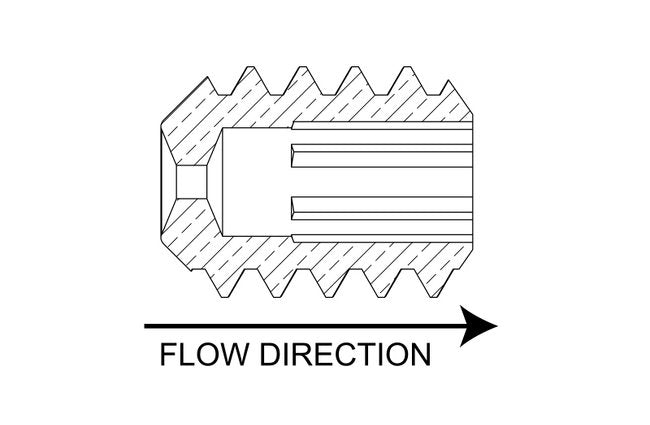

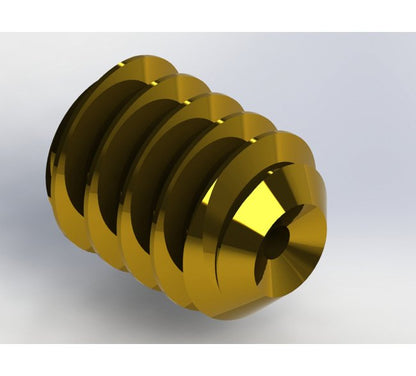

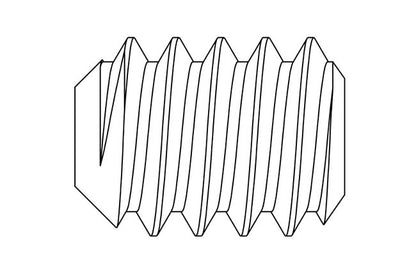

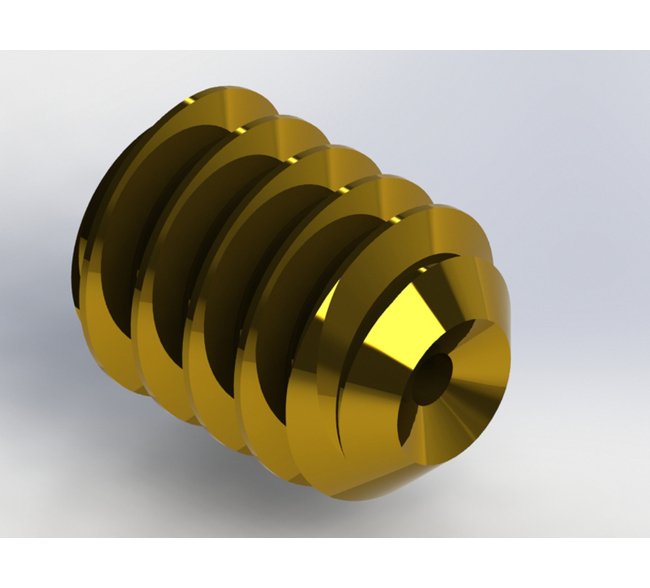

Enhance your fluid management systems with our Precision Inch Threaded Inserts Variety Pack. These set screw style inserts in brass offer orifice diameters ranging from .004" to .063", ensuring precise flow control for liquids or gases. With dimensions tailored for compatibility (0.022" orifice diameter, 6-32 thread size), these durable inserts are ideal for fittings, manifolds, or custom parts. Certified compliance with Federal procurement standards assures quality and reliability.
Product Specifications
Dimensions Orifice Diameter
0.022 in
Dimensions Thread Size
6-32
Dimensions Total Length
0.19 in
Dimensions Width Across Flats Hex
1/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.73 | 5 psig: 6.29 | 10 psig: 9.17 | 15 psig: 11.3 | 20 psig: 13.5 | 25 psig: 15.5 | 30 psig: 17.4 | 40 psig: 21.4 | 50 psig: 25.2 | 60 psig: 29.2 | 70 psig: 33.1 | 80 psig: 37.1 | 90 psig: 40.9 | 100 psig: 44.7
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.29 | 5 psig (34.5 kPag): 2.97 | 10 psig (69.0 kPag): 4.33 | 15 psig (103.4 kPag): 5.35 | 20 psig (137.9 kPag): 6.35 | 25 psig (172.4 kPag): 7.30 | 30 psig (206.9 kPag): 8.23 | 40 psig (275.8 kPag): 10.1 | 50 psig (344.8 kPag): 11.9 | 60 psig (413.7 kPag): 13.8 | 70 psig (482.7 kPag): 15.6 | 80 psig (551.6 kPag): 17.5 | 90 psig (620.6 kPag): 19.3 | 100 psig (689.5 kPag): 21.1
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 5.53 | 20 In. Hg.: 5.53 | 30 In. Hg.: 5.53
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.61 | 20 In. Hg. (508 Mm. Hg.): 2.61 | 30 In. Hg. (762 Mm. Hg.): 2.61
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 4.03 | 10 In. Hg.: 5.17
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.90 | 10 In. Hg. (254 Mm. Hg.): 2.44
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.011 | 2 psig: 0.016 | 3 psig: 0.019 | 4 psig: 0.022 | 5 psig: 0.025 | 6 psig: 0.027 | 7 psig: 0.029 | 8 psig: 0.031 | 9 psig: 0.033 | 10 psig: 0.035 | 15 psig: 0.043 | 20 psig: 0.049 | 30 psig: 0.060 | 40 psig: 0.070 | 50 psig: 0.078 | 60 psig: 0.085 | 70 psig: 0.092 | 80 psig: 0.098 | 90 psig: 0.104 | 100 psig: 0.110
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.042 | 2 psig (13.8 kPag): 0.059 | 3 psig (20.7 kPag): 0.072 | 4 psig (27.6 kPag): 0.083 | 5 psig (34.5 kPag): 0.093 | 6 psig (41.4 kPag): 0.093 | 7 psig (48.3 kPag): 0.110 | 8 psig (55.2 kPag): 0.118 | 9 psig (62.1 kPag): 0.125 | 10 psig (69 kPag): 0.132 | 15 psig (103.4 kPag): 0.161 | 20 psig (137.9 kPag): 0.186 | 30 psig (206.9 kPag): 0.228 | 40 psig (275.8 kPag): 0.263 | 50 psig (344.8 kPag): 0.294 | 60 psig (413.7 kPag): 0.323 | 70 psig (482.7 kPag): 0.348 | 80 psig (551.6 kPag): 0.372 | 90 psig (620.6 kPag): 0.395 | 100 psig (689.5 kPag): 0.416
Specifications Connection A
6-32 UNC Threaded Insert
Specifications Material
Brass
Specifications Nominal Orifice Size
22
Specifications Screened
None
