Precision Inch Threaded Inserts Variety Pack
Precision Inch Threaded Inserts Variety Pack
SKU:PRE-6a519e
Enhance flow control precision with our Precision Inch Threaded Inserts Variety Pack. Ideal for liquids or gases. Made of durable 316 SS material.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Inch Threaded Inserts Variety Pack
$49.99
Quantity: 1
Claim Your Seller Account
Precision Inch Threaded Inserts Variety Pack
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

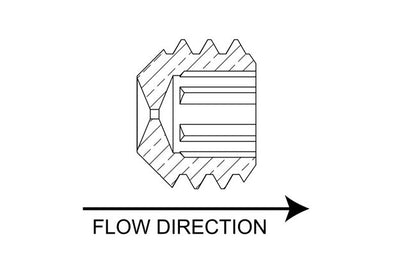

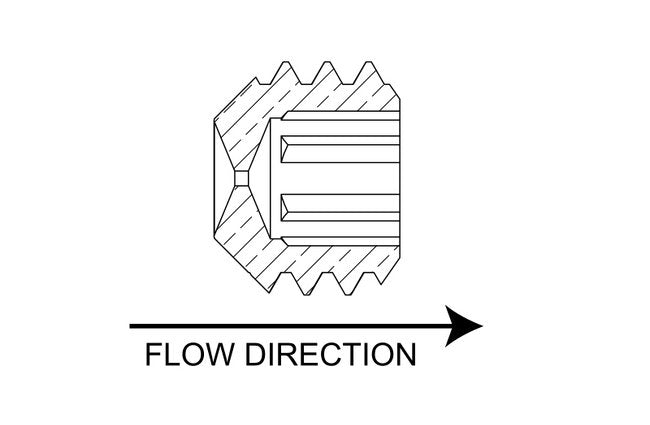

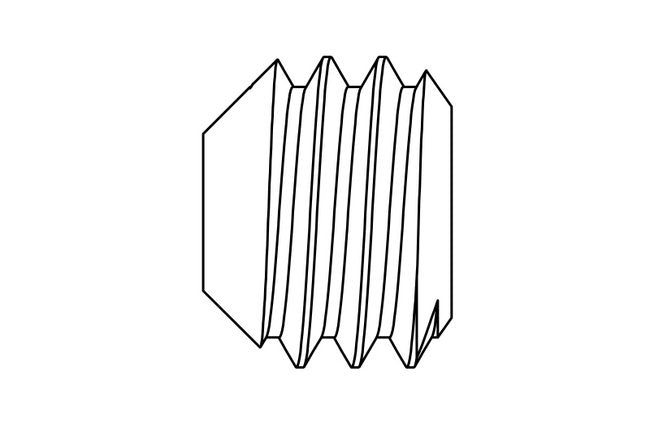

Our Precision Inch Threaded Inserts Variety Pack is designed for applications requiring precise flow control of liquids or gases. These threaded orifice inserts, made of 316 SS material, feature standard orifice sizes from .004" to .063". With various thread sizes including 5/16-18 UNC, they ensure compatibility with a range of fittings and manifolds. Achieve optimal flow rates with the dimensions of 0.06" orifice diameter and 5/32" width across flats (hex), providing reliable performance in diverse industrial settings.
Product Specifications
Dimensions Orifice Diameter
0.06 in
Dimensions Thread Size
5/16-18
Dimensions Total Length
0.25 in
Dimensions Width Across Flats Hex
5/32 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 23.7 | 5 psig: 50.6 | 10 psig: 68.2 | 15 psig: 82.6 | 20 psig: 97.3 | 25 psig: 112 | 30 psig: 126 | 40 psig: 156 | 50 psig: 185 | 60 psig: 214 | 70 psig: 244 | 80 psig: 273 | 90 psig: 303 | 100 psig: 331
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 11.2 | 5 psig (34.5 kPag): 23.9 | 10 psig (69.0 kPag): 32.2 | 15 psig (103.4 kPag): 39 | 20 psig (137.9 kPag): 45.9 | 25 psig (172.4 kPag): 52.8 | 30 psig (206.9 kPag): 59.7 | 40 psig (275.8 kPag): 73.6 | 50 psig (344.8 kPag): 87.4 | 60 psig (413.7 kPag): 101 | 70 psig (482.7 kPag): 115 | 80 psig (551.6 kPag): 129 | 90 psig (620.6 kPag): 143 | 100 psig (689.5 kPag): 156
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 39.4 | 20 In. Hg.: 39.4 | 30 In. Hg.: 39.4
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 18.6 | 20 In. Hg. (508 Mm. Hg.): 18.6 | 30 In. Hg. (762 Mm. Hg.): 18.6
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 31.4 | 10 In. Hg.: 38.6
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 14.8 | 10 In. Hg. (254 Mm. Hg.): 18.2
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.081 | 2 psig: 0.115 | 3 psig: 0.140 | 4 psig: 0.162 | 5 psig: 0.181 | 6 psig: 0.198 | 7 psig: 0.214 | 8 psig: 0.229 | 9 psig: 0.243 | 10 psig: 0.256 | 15 psig: 0.314 | 20 psig: 0.362 | 30 psig: 0.444 | 40 psig: 0.512 | 50 psig: 0.573 | 60 psig: 0.627 | 70 psig: 0.678 | 80 psig: 0.724 | 90 psig: 0.768 | 100 psig: 0.810
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.307 | 2 psig (13.8 kPag): 0.434 | 3 psig (20.7 kPag): 0.531 | 4 psig (27.6 kPag): 0.613 | 5 psig (34.5 kPag): 0.686 | 6 psig (41.4 kPag): 0.751 | 7 psig (48.3 kPag): 0.811 | 8 psig (55.2 kPag): 0.867 | 9 psig (62.1 kPag): 0.920 | 10 psig (69 kPag): 0.970 | 15 psig (103.4 kPag): 1.188 | 20 psig (137.9 kPag): 1.371 | 30 psig (206.9 kPag): 1.679 | 40 psig (275.8 kPag): 1.939 | 50 psig (344.8 kPag): 2.168 | 60 psig (413.7 kPag): 2.375 | 70 psig (482.7 kPag): 2.565 | 80 psig (551.6 kPag): 2.742 | 90 psig (620.6 kPag): 2.909 | 100 psig (689.5 kPag): 3.066
Specifications Connection A
5/16"-18 UNC Threaded Insert
Specifications Material
316 SS
Specifications Nominal Orifice Size
60
Specifications Screened
None
