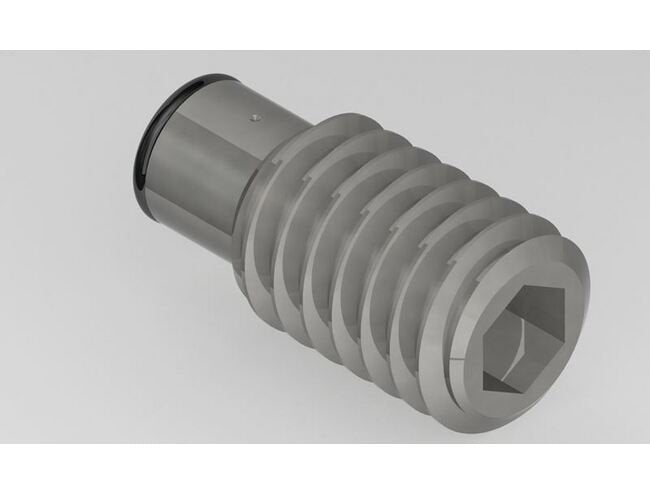

Precision Inch Threaded Inserts with Nose Seals
Precision Inch Threaded Inserts with Nose Seals
SKU:PRE-d0f7ab
Enhance precision flow control with Viton o-ring sealed inch threaded inserts crafted from 303 stainless steel for accurate control of liquids or gases.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Inch Threaded Inserts with Nose Seals
$29.99
Quantity: 1
Claim Your Seller Account
Precision Inch Threaded Inserts with Nose Seals
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your precision flow control with our inch threaded inserts featuring Viton o-ring seals and 303 stainless steel construction. Ideal for accurate flow rate control in fittings, manifolds, and custom parts, meeting stringent government procurement standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Orifice Diameter
0.063 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Thread Size
5/16-18
Dimensions Total Length
0.640 in
Dimensions Width Across Flats Hex
5/32 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 25.9 | 5 psig: 55.3 | 10 psig: 74.6 | 15 psig: 90.3 | 20 psig: 106 | 25 psig: 122 | 30 psig: 138 | 40 psig: 170 | 50 psig: 202 | 60 psig: 233 | 70 psig: 267 | 80 psig: 298 | 90 psig: 331 | 100 psig: 362
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 12.2 | 5 psig (34.5 kPag): 26.1 | 10 psig (69.0 kPag): 35.2 | 15 psig (103.4 kPag): 42.6 | 20 psig (137.9 kPag): 50.1 | 25 psig (172.4 kPag): 57.7 | 30 psig (206.9 kPag): 65.2 | 40 psig (275.8 kPag): 80.3 | 50 psig (344.8 kPag): 95.4 | 60 psig (413.7 kPag): 110 | 70 psig (482.7 kPag): 126 | 80 psig (551.6 kPag): 141 | 90 psig (620.6 kPag): 156 | 100 psig (689.5 kPag): 171
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 46.8 | 20 In. Hg.: 46.8 | 30 In. Hg.: 46.8
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 22.1 | 20 In. Hg. (508 Mm. Hg.): 22.1 | 30 In. Hg. (762 Mm. Hg.): 22.1
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 36.2 | 10 In. Hg.: 44.9
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 17.1 | 10 In. Hg. (254 Mm. Hg.): 21.2
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.088 | 2 psig: 0.124 | 3 psig: 0.152 | 4 psig: 0.176 | 5 psig: 0.197 | 6 psig: 0.216 | 7 psig: 0.233 | 8 psig: 0.249 | 9 psig: 0.264 | 10 psig: 0.278 | 15 psig: 0.341 | 20 psig: 0.394 | 30 psig: 0.482 | 40 psig: 0.557 | 50 psig: 0.622 | 60 psig: 0.682 | 70 psig: 0.736 | 80 psig: 0.787 | 90 psig: 0.835 | 100 psig: 0.880
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.333 | 2 psig (13.8 kPag): 0.471 | 3 psig (20.7 kPag): 0.577 | 4 psig (27.6 kPag): 0.666 | 5 psig (34.5 kPag): 0.745 | 6 psig (41.4 kPag): 0.816 | 7 psig (48.3 kPag): 0.881 | 8 psig (55.2 kPag): 0.942 | 9 psig (62.1 kPag): 0.999 | 10 psig (69 kPag): 1.053 | 15 psig (103.4 kPag): 1.290 | 20 psig (137.9 kPag): 1.490 | 30 psig (206.9 kPag): 1.825 | 40 psig (275.8 kPag): 2.107 | 50 psig (344.8 kPag): 2.355 | 60 psig (413.7 kPag): 2.580 | 70 psig (482.7 kPag): 2.787 | 80 psig (551.6 kPag): 2.979 | 90 psig (620.6 kPag): 3.16 | 100 psig (689.5 kPag): 3.331
Specifications Connection A
5/16"-18 UNC Threaded Insert O-ring seal
Specifications Cv
0.088
Specifications Material
303 SS
Specifications Maximum Opening Diameter
0.125 in
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Nominal Orifice Size
63
Specifications Screened
None
Specifications Seal Material
Viton
