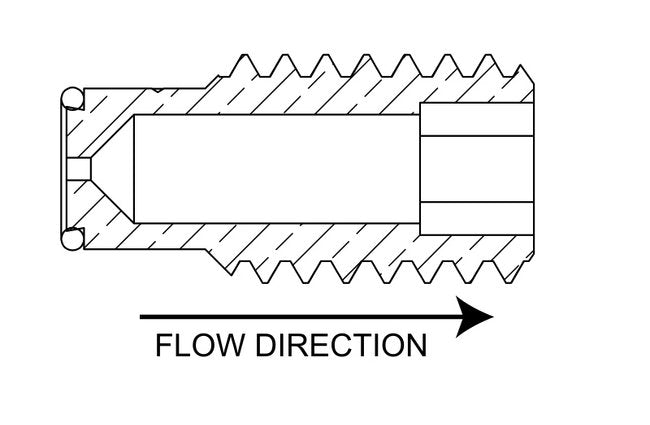

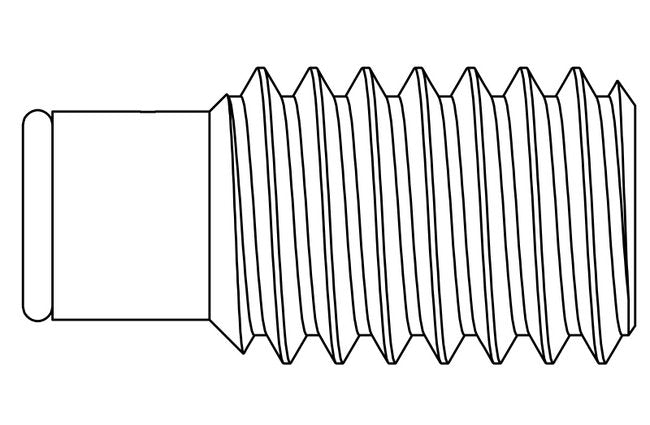

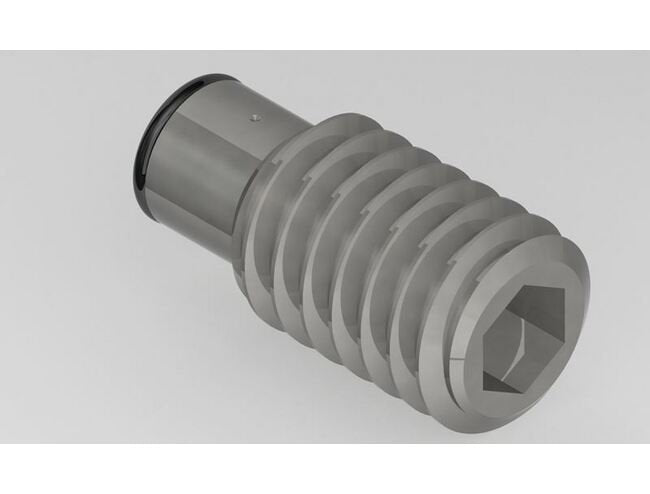

Upgrade your flow control system with our Precision Inch Threaded Inserts. Featuring Viton seal, 303 SS material, and accurate flow rates, these inserts ensure leak-free performance for liquids or gases. Ideal for fittings, manifolds, and custom parts in industrial settings, meeting rigorous industry standards.
Product Specifications
Dimensions Orifice Diameter
0.047 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Thread Size
5/16-18
Dimensions Total Length
0.640 in
Dimensions Width Across Flats Hex
5/32 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 13.60 | 5 psig: 30.1 | 10 psig: 41.0 | 15 psig: 50.0 | 20 psig: 58.7 | 25 psig: 67.6 | 30 psig: 76.3 | 40 psig: 94.3 | 50 psig: 112 | 60 psig: 130 | 70 psig: 148 | 80 psig: 167 | 90 psig: 185 | 100 psig: 203
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 6.43 | 5 psig (34.5 kPag): 14.2 | 10 psig (69.0 kPag): 19.4 | 15 psig (103.4 kPag): 23.6 | 20 psig (137.9 kPag): 27.7 | 25 psig (172.4 kPag): 31.9 | 30 psig (206.9 kPag): 36 | 40 psig (275.8 kPag): 44.5 | 50 psig (344.8 kPag): 52.9 | 60 psig (413.7 kPag): 61.5 | 70 psig (482.7 kPag): 70 | 80 psig (551.6 kPag): 78.6 | 90 psig (620.6 kPag): 87.2 | 100 psig (689.5 kPag): 95.8
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 24.5 | 20 In. Hg.: 24.5 | 30 In. Hg.: 24.5
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 11.6 | 20 In. Hg. (508 Mm. Hg.): 11.6 | 30 In. Hg. (762 Mm. Hg.): 11.6
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 19.2 | 10 In. Hg.: 23.6
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 9.08 | 10 In. Hg. (254 Mm. Hg.): 11.1
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.048 | 2 psig: 0.068 | 3 psig: 0.083 | 4 psig: 0.096 | 5 psig: 0.107 | 6 psig: 0.118 | 7 psig: 0.127 | 8 psig: 0.136 | 9 psig: 0.144 | 10 psig: 0.152 | 15 psig: 0.186 | 20 psig: 0.215 | 30 psig: 0.263 | 40 psig: 0.304 | 50 psig: 0.339 | 60 psig: 0.372 | 70 psig: 0.402 | 80 psig: 0.429 | 90 psig: 0.455 | 100 psig: 0.480
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.182 | 2 psig (13.8 kPag): 0.257 | 3 psig (20.7 kPag): 0.315 | 4 psig (27.6 kPag): 0.363 | 5 psig (34.5 kPag): 0.406 | 6 psig (41.4 kPag): 0.445 | 7 psig (48.3 kPag): 0.481 | 8 psig (55.2 kPag): 0.514 | 9 psig (62.1 kPag): 0.545 | 10 psig (69 kPag): 0.575 | 15 psig (103.4 kPag): 0.704 | 20 psig (137.9 kPag): 0.813 | 30 psig (206.9 kPag): 0.995 | 40 psig (275.8 kPag): 1.149 | 50 psig (344.8 kPag): 1.285 | 60 psig (413.7 kPag): 1.407 | 70 psig (482.7 kPag): 1.520 | 80 psig (551.6 kPag): 1.625 | 90 psig (620.6 kPag): 1.724 | 100 psig (689.5 kPag): 1.817
Specifications Connection A
5/16"-18 UNC Threaded Insert O-ring seal
Specifications Cv
0.048
Specifications Material
303 SS
Specifications Maximum Opening Diameter
0.125 in
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Nominal Orifice Size
47
Specifications Screened
None
Specifications Seal Material
Viton
