Precision Inch Threaded Orifice Inserts Pack
Precision Inch Threaded Orifice Inserts Pack
SKU:PRE-c9dcfd
Achieve precise flow control with our threaded orifice inserts pack. Durable materials & various sizes available. Ideal for fluid systems.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Precision Inch Threaded Orifice Inserts Pack
$39.99
Quantity: 1
Claim Your Seller Account
Precision Inch Threaded Orifice Inserts Pack
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

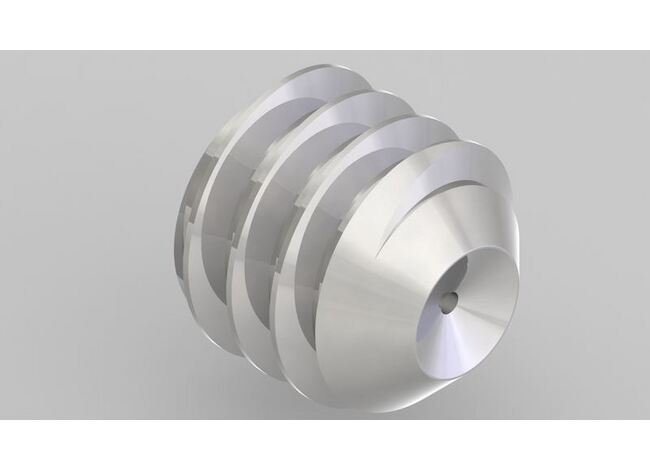

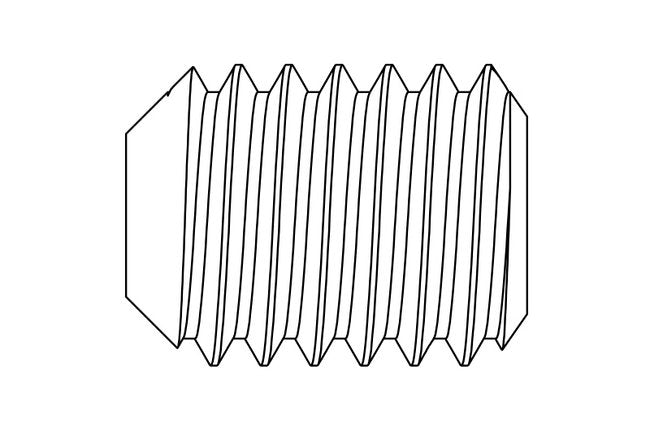

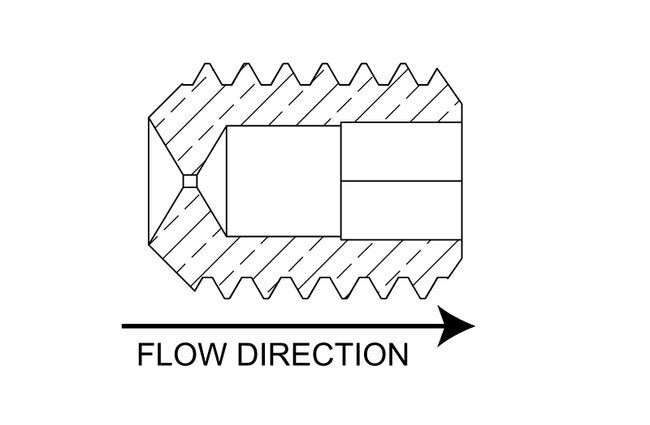

Enhance your fluid control systems with our set screw style threaded orifice inserts designed for precise flow rate control in liquids or gases. Available in various standard sizes (.004" to .063") and materials like brass and 316 SS, ensuring durability and efficiency. With a wide range of threaded options (6-32 UNC, 10-32 UNF, 1/4"-20 UNC, 5/16"-18 UNC, 3/8"-16 UNC), our inserts meet the highest quality standards for institutional buyers.
Product Specifications
Dimensions Orifice Diameter
0.0051 in
Dimensions Thread Size
3/8-16
Dimensions Total Length
0.50 in
Dimensions Width Across Flats Hex
3/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.136 | 5 psig: 0.33 | 10 psig: 0.47 | 15 psig: 0.59 | 20 psig: 0.70 | 25 psig: 0.82 | 30 psig: 0.92 | 40 psig: 1.15 | 50 psig: 1.37 | 60 psig: 1.59 | 70 psig: 1.82 | 80 psig: 2.04 | 90 psig: 2.27 | 100 psig: 2.48
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.064 | 5 psig (34.5 kPag): 0.16 | 10 psig (69.0 kPag): 0.22 | 15 psig (103.4 kPag): 0.28 | 20 psig (137.9 kPag): 0.33 | 25 psig (172.4 kPag): 0.39 | 30 psig (206.9 kPag): 0.44 | 40 psig (275.8 kPag): 0.54 | 50 psig (344.8 kPag): 0.65 | 60 psig (413.7 kPag): 0.75 | 70 psig (482.7 kPag): 0.86 | 80 psig (551.6 kPag): 0.96 | 90 psig (620.6 kPag): 1.07 | 100 psig (689.5 kPag): 1.17
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.284 | 20 In. Hg.: 0.284 | 30 In. Hg.: 0.284
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.134 | 20 In. Hg. (508 Mm. Hg.): 0.134 | 30 In. Hg. (762 Mm. Hg.): 0.134
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.203 | 10 In. Hg.: 0.263
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.096 | 10 In. Hg. (254 Mm. Hg.): 0.124
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0006 | 2 psig: 0.0009 | 3 psig: 0.0011 | 4 psig: 0.0012 | 5 psig: 0.0014 | 6 psig: 0.0015 | 7 psig: 0.0016 | 8 psig: 0.0017 | 9 psig: 0.0018 | 10 psig: 0.0019 | 15 psig: 0.0024 | 20 psig: 0.0027 | 30 psig: 0.0033 | 40 psig: 0.0039 | 50 psig: 0.0043 | 60 psig: 0.0047 | 70 psig: 0.0051 | 80 psig: 0.0055 | 90 psig: 0.0058 | 100 psig: 0.0061
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0023 | 2 psig (13.8 kPag): 0.0033 | 3 psig (20.7 kPag): 0.0040 | 4 psig (27.6 kPag): 0.0046 | 5 psig (34.5 kPag): 0.0052 | 6 psig (41.4 kPag): 0.0052 | 7 psig (48.3 kPag): 0.0061 | 8 psig (55.2 kPag): 0.0065 | 9 psig (62.1 kPag): 0.0069 | 10 psig (69 kPag): 0.0073 | 15 psig (103.4 kPag): 0.0089 | 20 psig (137.9 kPag): 0.0103 | 30 psig (206.9 kPag): 0.0126 | 40 psig (275.8 kPag): 0.0146 | 50 psig (344.8 kPag): 0.0163 | 60 psig (413.7 kPag): 0.0179 | 70 psig (482.7 kPag): 0.0193 | 80 psig (551.6 kPag): 0.0207 | 90 psig (620.6 kPag): 0.0219 | 100 psig (689.5 kPag): 0.0231
Specifications Connection A
3/8"-16 UNC Threaded Insert
Specifications Material
Brass
Specifications Nominal Orifice Size
5
Specifications Screened
None
