Precision Labeling Electric Labeler - 1 to 22 Inch Length
Precision Labeling Electric Labeler - 1 to 22 Inch Length
SKU:LAB-89f0c4
Achieve precision labeling with our electric labeler - perfect for institutional & government use!
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Precision Labeling Electric Labeler - 1 to 22 Inch Length
$4,999.99
Quantity: 1
Claim Your Seller Account
Precision Labeling Electric Labeler - 1 to 22 Inch Length
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

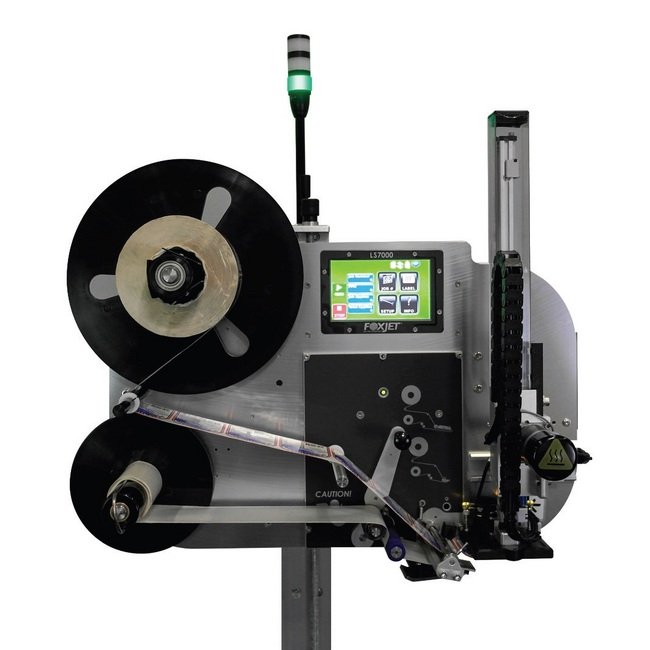

The Precision Labeling Electric Labeler is a cutting-edge solution for precise label dispensing. Powered by a brushless servo motor, it ensures superior label placement with smart sensing technology that detects missing labels and advances the web to prevent errors. Featuring a color touchscreen display for real-time reporting and diagnostics, a near-edge gap sensor for accurate labeling, and a missing label advance feature to ensure every product is labeled correctly. With certifications including IEC standards, FCC compliance, and UL safety regulations, this labeler is a perfect fit for institutional and government procurement needs.
Product Specifications
Accuracy Accuracy E Tampblow High Speed Tamp
0.09 in | 2.4 mm
Accuracy Accuracy E Tamp E Wasa E Fasa
0.06 in | 1.6 mm
Additional Information Additional Information
Applicator module configurations accommodate front, rear, side, top, bottom, corner wraps and tamp/blow label applicationsDiscrete I/O card option allows the system to interface directly to a PLC
Applicator Modules Applicator Modules
E-WASA HD Corner Wrap Apply ModuleWipe Around Side Apply Module - Heavy-DutyKey FeaturesProvides front to side or front to top label corner wrappingWrap tightness adjusted with dampening air cushion cylinderBuilt-in smart sensor to prevent multiple label feedsE-FASA Swing Arm ModuleFront, Top, Side, Rear or combination of two adjacent panelsKey FeaturesProvides either front panel labeling, rear panel labeling, or a combination of front-side, side-rear, front-top or top-rearCapable of applying corner wrapped labelsThe pivoting knuckle tamp pad allows for higher throughput rates than actuator modules, with less failure points and adjustmentsUser interface that promotes simplicity and intelligenceKey FeatureQuick troubleshooting with on-screen diagnostics from real time smart sensor feedbackEasy to read full color display - change in portrait or landscape orientations electronicallyFunctionality for redundant mode to pair systems for zero downtime line requirements
Line Speed Line Speed E Fasa
0 to 75 ppm
Line Speed Line Speed E Tamp E Tampblow
0 to 150 ppm
Line Speed Line Speed E Wasa
0 to 125 ppm
Line Speed Line Speed High Speed Tamp
Up to 300+ ppm
Line Speed Line Speed Wipe
0 to 300 ppm
Product Rate Dual Apply Product Rate E Fasa
0 to 28 ppm
Product Rate Product Rate E Tamp
0 to 120 ppm
Product Rate Product Rate E Tampblow
0 to 55 ppm
Product Rate Product Rate E Wasa
Dependent on Label Length, Print Speed and Product Spacing
Product Rate Product Rate High Speed Tamp
Application Dependent
Product Rate Product Rate Wipe
0 to 800 ppm
Product Rate Single Apply Product Rate E Fasa
0 to 52 ppm
Technical Specs Certifications
IEC 61000-6-2 2005/AC: 2005 Immunity | IEC 61000-6-4 2007/A1: 2011 Emission | FCC Part 15b | CSA CAN/CSA-C22.2 No. 62368-1:2014 | UL62368-1:2014
Technical Specs Core Diameter
3 in | 76.2 mm
Technical Specs Depth With Yoke
26 in | 660 mm
Technical Specs Height With Yoke
27 in | 868 mm
Technical Specs Label Length
1 to 22 in | 25.4 to 558.8 mm
Technical Specs Length With Yoke
31 in | 787 mm
Technical Specs Narrow Web Label Width
0.5 to 6 in | 12.7 to 152.4 mm
Technical Specs Non Condensing Relative Humidity Rh
10 to 85 %
Technical Specs Supply Roll Capacity Outside Diameter Od
14 in | 355.6 mm
Technical Specs Temperature Range
41 to 104 ºF | 5 to 40 ºC
Technical Specs Wide Web Label Width
0.5 to9 in | 12.7 to 228.6 mm
Weight Note For Weight E Tamp E Wasa High Speed Tamp
Includes Yoke, No Stand
Weight Weight Chi Stand
83 lb | 37.6 kg
Weight Weight E Fasa
101 lb | 45.8 kg
Weight Weight E Tamp E Wasa High Speed Tamp
98 lb | 44.5 kg
