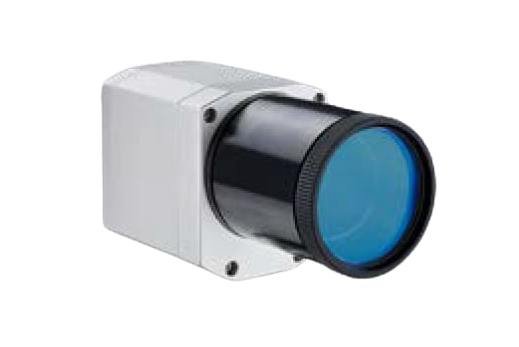

The Precision Line PI Infrared Camera is engineered for high-resolution imaging in online and 3D printing applications. With a temperature range of 41 to 122ºF, this compact camera features exchangeable lenses, a line scan function, and optical resolutions suitable for fast and precise imaging needs. Compliant with Federal/DoD procurement standards and industry-specific certifications, this camera offers exceptional performance and accuracy required for institutional and government procurement.
Product Specifications
Accessories Cooling Jacket Advanced
Part Number - ACPICJAFeatures:Operation at ambient temperatures up to 315 ºCAir/water cooling with integrated air purging and optional protective windowsModular concept for easy installation of different devices and opticsTrouble-free sensor disassembling on site with quick release chassisIntegration of additional components like PI NetBox, USB Server Gigabit 2.0 and Industrial Process Interface (PIF) in extended version
Accessories Industrial Process Interface Pif For Optris Pi Serie
Part Number - ACPIPIFMAFeatures:Industrial process interface for PI series with 3 analog/alarm outputs, 2 analog inputs, 1 digital input, 3 alarm relays500 V ACRMS isolation voltage between camera and processSeparate fail-safe relay outputPI hardware including all cable connections and PIX Connect software are permanently observed during operation
Accessories Laminar Air Purge
Part Number - ACCJAAPLSFeatures:Protection for rugged environmentsAir and water cooling, flexible laminar air stream for protection from dirt and dustEasy maintenance due to folding mechanismFocusable from the outside once installedProtection window for mechanical protection integratedAlso available as line scanner version
Accessories Outdoor Protective Housing For Infrared Cameras
Part Number - ACPIOPHFeatures:Environmental rating IP 66Additional air purge collar allows for a continuous operation in dusty and humid conditionsHeating element and built-in fan enable for a 24/7 operation from -40 ºC to 50 ºCInstallation of USB Server Gigabit 2.0 and industrial process interface possible for integration into control systems over large outdoor distances
Accessories Pi Netbox
Part Number - OPTPINBW732GFeatures:Miniature PC as an add-on to the PI series for stand-alone system or for cable extension via GigEIntegrated hardware and software watchdogInstallation of additional user software possibleStatus LEDsProcessor: Intel® E3845 Quad Core / 1.91 GHz, 16 GB SSD, 2 GB RAMConnections: 2x USB 2.0, 1x USB 3.0, 1x Mini USB 2.0, Micro HDMI, Ethernet (Gigabit Ethernet), Micro SDHC/SDXC cardWide supply voltage range (8 - 48 V DC) or Power over Ethernet (PoE)Can be integrated into CoolingJacket Advanced
Accessories Universal Serial Bus Usb Server Gigabit 20 For Optri
Part Number - ACPIUSBSGBFeatures:Fully USB 2.0 compatible, Data rates: 1.5/12/480 mbps, USB transfer mode: IsochronousNetwork connection via Gigabit EthernetFor optris PI series and Xi 400 as well as CTvideo/Csvideo seriesFull TCP/IP support incl. routing and DNSTwo independent USB portsSupply from PoE or external power supply with 24 - 48 V DCGalvanic isolation 500 VRMS (network connection)Remotely configurable via Web Based ManagementProven technology from Wiesemann & Theis
Specifications Ambient Temperature Tamb
5 to 50 ºC | 41 to 122 ºF
Specifications Applications
Component Inspection of Circuit Boards | Infrared Technology for Fire Protection | Injection Molding | Workpiece Control During Drop Forging
Specifications Class
Ingress Protection (IP 67) (National Electrical Manufacturers Association (NEMA 4))
Specifications Detector
Complementary Metal Oxide Semiconductor (CMOS)
Specifications Fields Of View Fov Optics
FOV at 764 x 480 px:26º x 16º (f = 25 mm) [0.98 in]FOV at 382 x 288 px:13º x 10º (f = 25 mm [0.98 in])
Specifications Frame Rate
Up to 1 kHz/1 ms real time analog output (0 - 10 V) of 8 x 8 pixels (freely selectable)
Specifications Non Condensing Relative Humidity
10 to 95 %
Specifications Optical Resolution At 1 Kilohertz Khz Frequency
72 x 56 px
Specifications Optical Resolution At 1 Kilohertz Khz Frequency F
764 x 8 px
Specifications Optical Resolution At 32 Hertz Hz Frequency
764 x 480 px
Specifications Optical Resolution At 80 Hertz Hz Frequency
382 x 288 px
Specifications Optional Process Interface Pif
1x Digital Input (Maximum 24 V) | 1x Fail-Safe Relay | 2 x 0 - 10 V Inputs | 3 x 0/4 - 20 mA Outputs | 3 x Relays (0 - 30 V/400 mA)
Specifications Personal Computers Pc Interfaces
Optional Universal Serial Bus (USB) to Gigabit Ethernet (GigE) Power Over Ethernet (PoE) | Universal Serial Bus (USB 2.0)
Specifications Pitch Detector Diameter
15 µm
Specifications Power Supply
Via Universal Serial Bus (USB)
Specifications Shockvibration
International Electrotechnical Commission (IEC 60068-2)
Specifications Size
46 x 56 x 68 to 129 mm | 1.81 x 2.20 x 3.46 to 5.08 in
Specifications Spectral Range
500 to 540 nm
Specifications Standard Process Interface Pif
1x 0 - 10 V Input | 1x 0 - 10 V Output | 1x Digital Input (Maximum 24 V)
Specifications Storage Temperature
-40 to 70 ºC | -40 to 158 ºF
Specifications Switchable Frame Rate
0 to 27 Hz
Specifications System Accuracy At Ambient Temperature Tamb 23 5
For Object Temperature < 2000 ºC (3632 ºF):±1 % of reading for 27/32/80 Hz±1.5 % of reading for 1 kHzFor Object Temperature > 2000 ºC (3632 ºF):±2 % of reading for 27/32/80 Hz±2.5 % of reading for 1 kHz
Specifications Temperature Ranges 1 Kilohertz Khz Frequency Mode
1100 to 2450 ºC | 2012 to 4442 ºF
Specifications Temperature Ranges 27 Hertz Hz Frequency Mode
900 to 2450 ºC | 1652 to 4442 ºF
Specifications Temperature Ranges 3280 Hertz Hz Frequency Mode
950 to 2450 ºC | 1742 to 4442 ºF
Specifications Thermal Sensitivity Netd At 2 Kelvin K
< 1400 ºC | 2552 ºF
Specifications Thermal Sensitivity Netd At 4 Kelvin K
< 2100 ºC | 3812 ºF
Specifications Tripod Mount
1/4 - 20 Unified Coarse (UNC)
Specifications Weight Depending On Lens
245 to 311 g | 8.64 to 10.97 oz
Standard Scope Of Supply Standard Scope Of Supply
USB camera with 1 lensLens tube including protective windowUSB cable (1 m [3.3 ft])Table tripodPIF cable with terminal block (1 m [3.3 ft])ManualSoftware package optris PIX ConnectAluminum caseOptional: CoolingJacket, HT cable
