Upgrade your standard clevis pins with our CPA/CBA Series Load Pins. Designed for direct force measurement in a variety of applications, these load pins offer a load capacity of 100,000 lbs and are constructed with high-strength stainless steel. With overload protection up to 300% without failure and precise strain gauge technology, these load pins ensure accurate data acquisition and reliable performance. Easy to install and internally sealed for durability, they meet stringent industry standards for ruggedness and precision.
Product Specifications

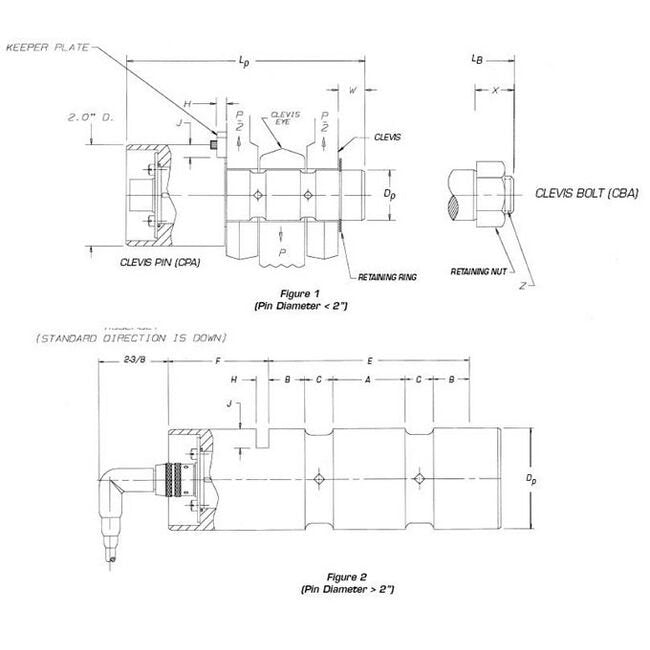

Dimensional Drawing Dimensional Drawing
Load Pin
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Receptacle
PTIH-10-6P
Electrical Specifications Signal
Green
General Information 0
Precison Load Sensing Rugged Internally Sealed Strain Gages Easy Installation Direct Force Measurement High Strength Stainless Steel
Performance Specs Bridge
Full bridge 350 Ohm (Nominal)
Performance Specs Excitation
12 V AC (Maximum) | 12 V DC (Maximum)
Performance Specs Hysteresis
±0.50% FS (Nominal)
Performance Specs Non Linearity
±0.50% FS (Nominal)
Performance Specs Non Repeatability
±0.15% FS (Nominal)
Performance Specs Output Signal
2-mV/V (Nominal) | 2-mV/V (Standardized Output)
Performance Specs Overload Without Failure
300% (Minimum)
Performance Specs Overload Without Zero Shift
150%
Performance Specs Service Temp Range
to 150 °F
Performance Specs Temp Effects On Output
0.008% load / °F (Nominal)
Performance Specs Temp Effects On Zero
0.005% FS / °F (Nominal)
Performance Specs Zero Balance
±2% FS (Nominal)
Specifications A Width Of Center Loading Section
2 in
Specifications B Width Of Clevis Support Section
1-1/8 in
Specifications Connector Type
Axial Connector | Permanently Attached Axial Cable
Specifications C Length Of Pinbolt Reduced Section Instrumented
11/16 in
Specifications Dp Nominal Pin Diameter
2.748 in
Specifications E Active Length Of Pin
5-5/8 in
Specifications F Clevis Pin Head Length
2 in
Specifications H Width Of Keeper Plate Slot
13/32 in
Specifications J Depth Of Keeper Plate Slot
1/2 in
Specifications Keeper Plates
SPA-100-112-1-A
Specifications Load Capacity
100,000 lb
Specifications Lp Overall Length Of Pin
8-3/8 in
Specifications Material
Stainless Steel 17-4, H-1025 (Standard)
Specifications W Allowance For Retaining Ring Installation
3/4 in
