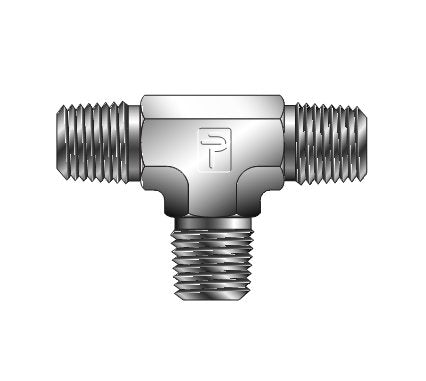

Precision Male Tee Pipe Fitting MT 1 1/4" MNPT x MNPT x MNPT
Precision Male Tee Pipe Fitting MT 1 1/4" MNPT x MNPT x MNPT
SKU:FIT-19a16f
Precision Male Tee Pipe Fitting MT: Quality instrument pipe fitting for precise connections in process and instrumentation applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Male Tee Pipe Fitting MT 1 1/4" MNPT x MNPT x MNPT
$29.99
Quantity: 1
Claim Your Seller Account
Precision Male Tee Pipe Fitting MT 1 1/4" MNPT x MNPT x MNPT
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Male Tee Pipe Fitting MT is engineered by Parker to provide leak-free connections essential for process, instrumentation, and industrial applications. Made from high-quality steel and brass, these fittings ensure reliability and durability. Manufactured with strict adherence to quality control in Huntsville, Alabama, these fittings meet stringent industry standards and are available in various sizes. Precision machined from forgings and bar stock, they offer precision and strength for instrumentation connections. Packaged in sealed, clear plastic for cleanliness and protection, these fittings exceed ANSI requirements and are designed for ease of installation and long-term performance.
Product Specifications

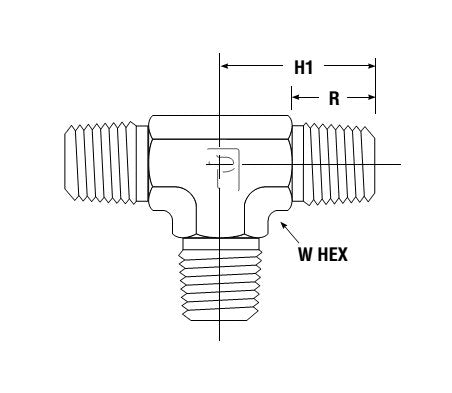

Dimensions Connection Type
MNPT x MNPT x MNPT
Dimensions H1
2.22 in
Dimensions Npt Thread Male
1 1/4
Dimensions R
.97 in
Dimensions Working Pressure Brass
2000 psig
Dimensions Working Pressure Stainless Steel
3500 psig
Dimensions Working Pressure Steel
3700 psig
Dimensions W Hex
1 5/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
