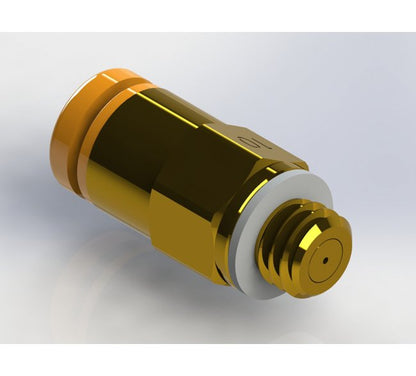

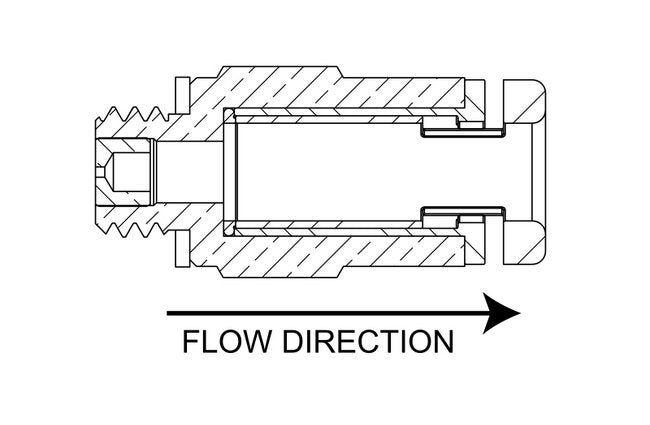

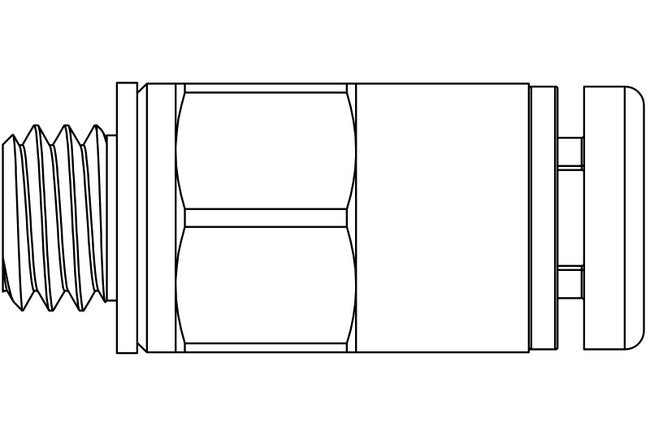

Precision Metal Orifice Adapter - 10-32 UNF x Tube
Precision Metal Orifice Adapter - 10-32 UNF x Tube
SKU:PRE-b0ac2c
Premium Precision Metal Orifice Adapter for precise flow control in industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifice Adapter - 10-32 UNF x Tube
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Adapter - 10-32 UNF x Tube
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

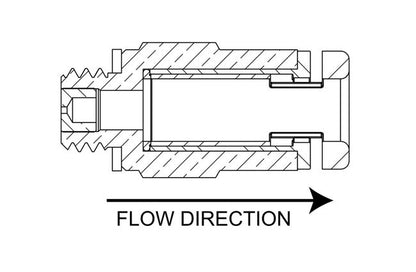

The Precision Metal Orifice Adapter is a high-quality component designed for precise flow control in industrial applications. Constructed from durable brass/plastic materials with a Buna-N seal, this adapter offers exceptional performance. With an orifice diameter of 0.011 inches and a CV of 0.0028, it can handle a maximum operating pressure of 140 psig. It features a 10-32 UNF Male connection on one end and a 1/8" OD Tube Push-Lock connection on the other, ensuring secure and reliable installation. This adapter meets stringent industry standards for accuracy and reliability, making it ideal for institutional procurement needs.
Product Specifications
Dimensions Orifice Diameter
0.011 in
Dimensions Total Length
0.66 in
Dimensions Width Across Flats Hex
9/32 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.653 | 5 psig: 1.51 | 10 psig: 2.14 | 15 psig: 2.67 | 20 psig: 3.16 | 25 psig: 3.62 | 30 psig: 4.09 | 40 psig: 5.02 | 50 psig: 5.93 | 60 psig: 6.84 | 70 psig: 7.76 | 80 psig: 8.67 | 90 psig: 9.56 | 100 psig: 10.5
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.308 | 5 psig (34.5 kPag): 0.71 | 10 psig (69.0 kPag): 1.01 | 15 psig (103.4 kPag): 1.26 | 20 psig (137.9 kPag): 1.49 | 25 psig (172.4 kPag): 1.71 | 30 psig (206.9 kPag): 1.93 | 40 psig (275.8 kPag): 2.37 | 50 psig (344.8 kPag): 2.80 | 60 psig (413.7 kPag): 3.23 | 70 psig (482.7 kPag): 3.66 | 80 psig (551.6 kPag): 4.09 | 90 psig (620.6 kPag): 4.51 | 100 psig (689.5 kPag): 4.94
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 1.30 | 20 In. Hg.: 1.30 | 30 In. Hg.: 1.30
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.614 | 20 In. Hg. (508 Mm. Hg.): 0.614 | 30 In. Hg. (762 Mm. Hg.): 0.614
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.953 | 10 In. Hg.: 1.20
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.450 | 10 In. Hg. (254 Mm. Hg.): 0.564
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0028 | 2 psig: 0.0040 | 3 psig: 0.0048 | 4 psig: 0.0056 | 5 psig: 0.0063 | 6 psig: 0.0069 | 7 psig: 0.0074 | 8 psig: 0.0079 | 9 psig: 0.0084 | 10 psig: 0.0089 | 15 psig: 0.0108 | 20 psig: 0.0125 | 30 psig: 0.0153 | 40 psig: 0.0177 | 50 psig: 0.0198 | 60 psig: 0.0217 | 70 psig: 0.0234 | 80 psig: 0.0250 | 90 psig: 0.0266 | 100 psig: 0.0280
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0106 | 2 psig (13.8 kPag): 0.0150 | 3 psig (20.7 kPag): 0.0184 | 4 psig (27.6 kPag): 0.0212 | 5 psig (34.5 kPag): 0.0237 | 6 psig (41.4 kPag): 0.0237 | 7 psig (48.3 kPag): 0.0280 | 8 psig (55.2 kPag): 0.0300 | 9 psig (62.1 kPag): 0.0318 | 10 psig (69 kPag): 0.0335 | 15 psig (103.4 kPag): 0.0411 | 20 psig (137.9 kPag): 0.0474 | 30 psig (206.9 kPag): 0.0581 | 40 psig (275.8 kPag): 0.0670 | 50 psig (344.8 kPag): 0.0749 | 60 psig (413.7 kPag): 0.0821 | 70 psig (482.7 kPag): 0.0887 | 80 psig (551.6 kPag): 0.0948 | 90 psig (620.6 kPag): 0.1006 | 100 psig (689.5 kPag): 0.1060
Specifications Connection A
10-32 UNF Male
Specifications Connection B
1/8" OD Tube Push-Lock
Specifications Cv
0.0028
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
11
Specifications Screened
None
Specifications Seal Material
Buna-N
