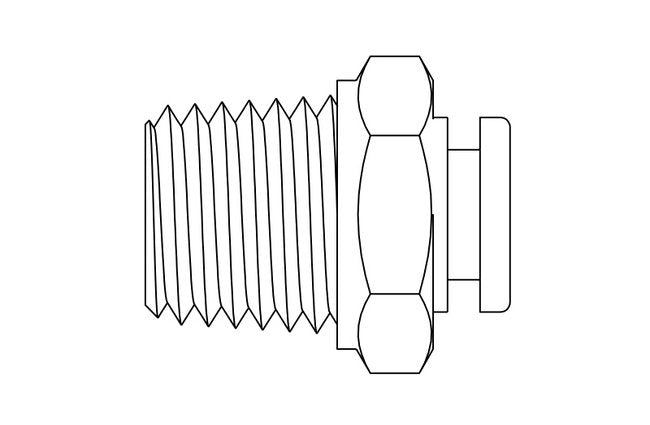

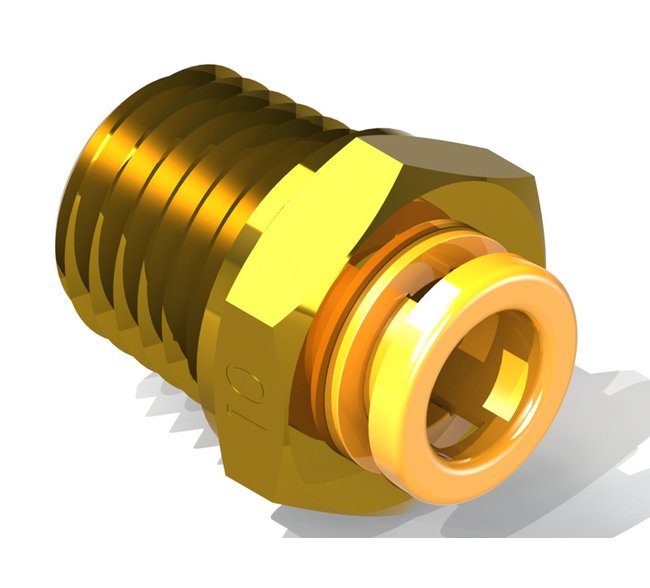

Precision Metal Orifice Adapters 1/4 NPT x Tube
Precision Metal Orifice Adapters 1/4 NPT x Tube
SKU:PRE-b08038
Premium Precision Metal Orifice Adapters for precise flow control in air and water applications. Reliable, versatile, and compliant with procurement standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifice Adapters 1/4 NPT x Tube
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Adapters 1/4 NPT x Tube
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Orifice Adapters are expertly crafted for precise flow control applications. Featuring a Buna-N seal and durable brass/plastic material, these adapters ensure reliable performance at up to 140 psig. With a CV of 0.0073 and various connection options, including 1/4" NPT male and 1/4" OD tube push-lock, they offer versatile connectivity. Ideal for air and water flow, these adapters provide accurate flow rates across different pressures and vacuum levels, meeting the stringent standards required by government and institutional procurement.
Product Specifications
Dimensions Orifice Diameter
0.018 in
Dimensions Total Length
0.91 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.82 | 5 psig: 4.20 | 10 psig: 5.38 | 15 psig: 6.84 | 20 psig: 8.18 | 25 psig: 9.43 | 30 psig: 10.7 | 40 psig: 13.2 | 50 psig: 15.7 | 60 psig: 18.2 | 70 psig: 20.7 | 80 psig: 23.3 | 90 psig: 25.9 | 100 psig: 28.4
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.86 | 5 psig (34.5 kPag): 1.98 | 10 psig (69.0 kPag): 2.54 | 15 psig (103.4 kPag): 3.23 | 20 psig (137.9 kPag): 3.86 | 25 psig (172.4 kPag): 4.45 | 30 psig (206.9 kPag): 5.03 | 40 psig (275.8 kPag): 6.21 | 50 psig (344.8 kPag): 7.40 | 60 psig (413.7 kPag): 8.58 | 70 psig (482.7 kPag): 9.77 | 80 psig (551.6 kPag): 11.0 | 90 psig (620.6 kPag): 12.2 | 100 psig (689.5 kPag): 13.4
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 3.71 | 20 In. Hg.: 3.71 | 30 In. Hg.: 3.71
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.75 | 20 In. Hg. (508 Mm. Hg.): 1.75 | 30 In. Hg. (762 Mm. Hg.): 1.75
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 2.7 | 10 In. Hg.: 3.35
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.28 | 10 In. Hg. (254 Mm. Hg.): 1.58
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0073 | 2 psig: 0.0103 | 3 psig: 0.0126 | 4 psig: 0.0146 | 5 psig: 0.0163 | 6 psig: 0.0179 | 7 psig: 0.0193 | 8 psig: 0.0206 | 9 psig: 0.0219 | 10 psig: 0.0231 | 15 psig: 0.0283 | 20 psig: 0.0326 | 30 psig: 0.0400 | 40 psig: 0.0462 | 50 psig: 0.0516 | 60 psig: 0.0565 | 70 psig: 0.0611 | 80 psig: 0.0653 | 90 psig: 0.0693 | 100 psig: 0.0730
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0276 | 2 psig (13.8 kPag): 0.0391 | 3 psig (20.7 kPag): 0.0479 | 4 psig (27.6 kPag): 0.0553 | 5 psig (34.5 kPag): 0.0618 | 6 psig (41.4 kPag): 0.0618 | 7 psig (48.3 kPag): 0.0731 | 8 psig (55.2 kPag): 0.0782 | 9 psig (62.1 kPag): 0.0829 | 10 psig (69 kPag): 0.0874 | 15 psig (103.4 kPag): 0.1070 | 20 psig (137.9 kPag): 0.1236 | 30 psig (206.9 kPag): 0.1514 | 40 psig (275.8 kPag): 0.1748 | 50 psig (344.8 kPag): 0.1954 | 60 psig (413.7 kPag): 0.2140 | 70 psig (482.7 kPag): 0.2312 | 80 psig (551.6 kPag): 0.2472 | 90 psig (620.6 kPag): 0.2622 | 100 psig (689.5 kPag): 0.2763
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.0073
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
18
Specifications Screened
None
Specifications Seal Material
Buna-N
