Precision Metal Orifice Adapters 1/8" NPT x Tube
Precision Metal Orifice Adapters 1/8" NPT x Tube
SKU:PRE-c96e07
High-quality Precision Metal Orifice Adapters for efficient air and water flow in institutional applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifice Adapters 1/8" NPT x Tube
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Adapters 1/8" NPT x Tube
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

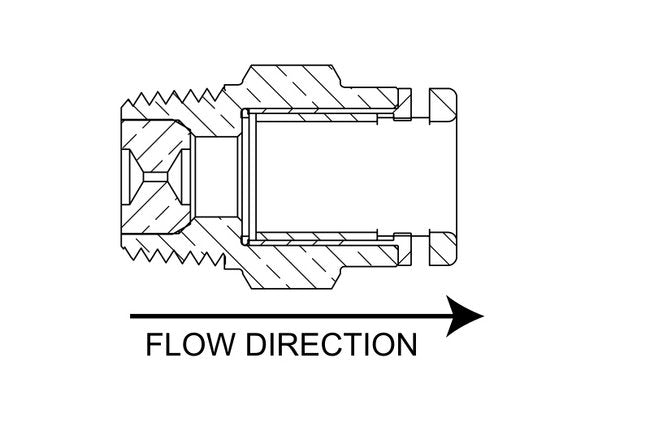

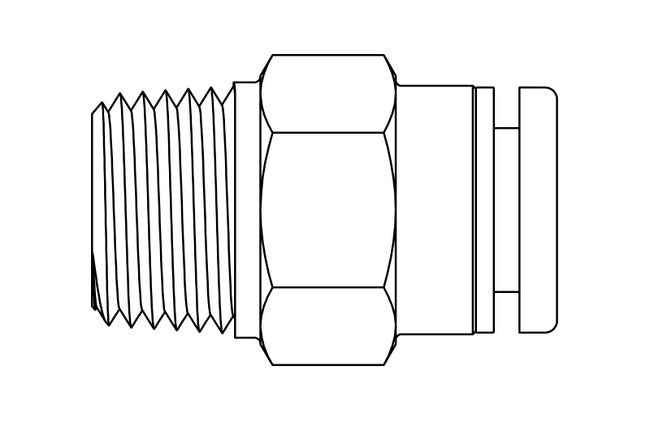

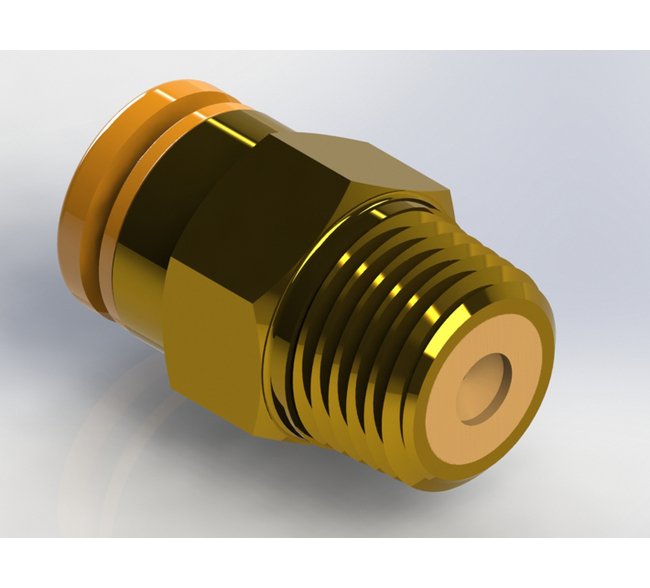

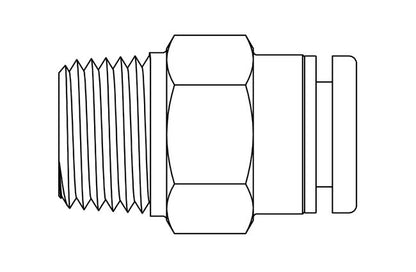

The Precision Metal Orifice Adapters are crafted for precision and durability. Made of high-quality brass/plastic with a Buna-N seal, these adapters feature a 0.0059" orifice diameter and a 5/8" width across flats. With a maximum operating pressure of 140 psig and a CV of 0.00086, these adapters ensure efficient air and water flow. Designed for institutional applications, they meet Federal/DoD procurement standards, GSA requirements, FAR compliance factors, and DLA standards.
Product Specifications
Dimensions Orifice Diameter
0.0059 in
Dimensions Total Length
0.89 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.182 | 5 psig: 0.45 | 10 psig: 0.65 | 15 psig: 0.82 | 20 psig: 0.97 | 25 psig: 1.12 | 30 psig: 1.26 | 40 psig: 1.56 | 50 psig: 1.86 | 60 psig: 2.16 | 70 psig: 2.46 | 80 psig: 2.75 | 90 psig: 3.05 | 100 psig: 3.35
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.086 | 5 psig (34.5 kPag): 0.21 | 10 psig (69.0 kPag): 0.31 | 15 psig (103.4 kPag): 0.39 | 20 psig (137.9 kPag): 0.46 | 25 psig (172.4 kPag): 0.53 | 30 psig (206.9 kPag): 0.60 | 40 psig (275.8 kPag): 0.74 | 50 psig (344.8 kPag): 0.88 | 60 psig (413.7 kPag): 1.02 | 70 psig (482.7 kPag): 1.16 | 80 psig (551.6 kPag): 1.30 | 90 psig (620.6 kPag): 1.44 | 100 psig (689.5 kPag): 1.58
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.392 | 20 In. Hg.: 0.392 | 30 In. Hg.: 0.392
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.185 | 20 In. Hg. (508 Mm. Hg.): 0.185 | 30 In. Hg. (762 Mm. Hg.): 0.185
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.273 | 10 In. Hg.: 0.356
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.129 | 10 In. Hg. (254 Mm. Hg.): 0.168
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0009 | 2 psig: 0.0012 | 3 psig: 0.0015 | 4 psig: 0.0017 | 5 psig: 0.0019 | 6 psig: 0.0021 | 7 psig: 0.0023 | 8 psig: 0.0024 | 9 psig: 0.0026 | 10 psig: 0.0027 | 15 psig: 0.0033 | 20 psig: 0.0038 | 30 psig: 0.0047 | 40 psig: 0.0054 | 50 psig: 0.0061 | 60 psig: 0.0067 | 70 psig: 0.0072 | 80 psig: 0.0077 | 90 psig: 0.0082 | 100 psig: 0.0086
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0033 | 2 psig (13.8 kPag): 0.0046 | 3 psig (20.7 kPag): 0.0056 | 4 psig (27.6 kPag): 0.0065 | 5 psig (34.5 kPag): 0.0073 | 6 psig (41.4 kPag): 0.0073 | 7 psig (48.3 kPag): 0.0086 | 8 psig (55.2 kPag): 0.0092 | 9 psig (62.1 kPag): 0.0098 | 10 psig (69 kPag): 0.0103 | 15 psig (103.4 kPag): 0.0126 | 20 psig (137.9 kPag): 0.0146 | 30 psig (206.9 kPag): 0.0178 | 40 psig (275.8 kPag): 0.0206 | 50 psig (344.8 kPag): 0.0230 | 60 psig (413.7 kPag): 0.0252 | 70 psig (482.7 kPag): 0.0272 | 80 psig (551.6 kPag): 0.0291 | 90 psig (620.6 kPag): 0.0309 | 100 psig (689.5 kPag): 0.0326
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.00086
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
6
Specifications Screened
None
Specifications Seal Material
Buna-N
