Achieve precision flow control with our Brass/Plastic Orifice Adapters. With 1/8" NPT connection, ensure reliable performance up to 140 psig.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifice Adapters, 1/8" NPT x Tube
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Adapters, 1/8" NPT x Tube
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

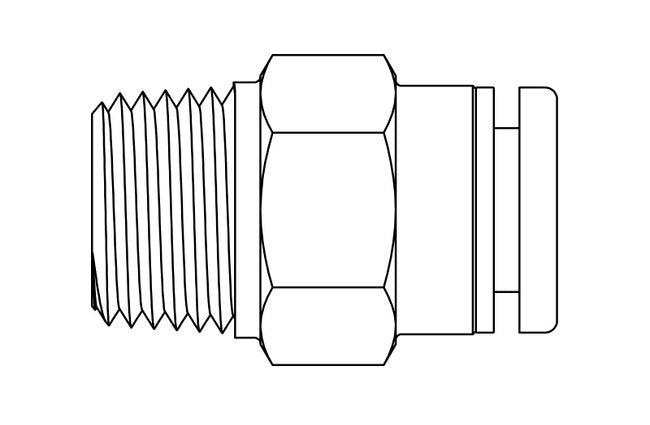

The Precision Metal Orifice Adapters are crafted for precise control in fluid systems. With an orifice diameter of 0.0091 inches and a hex width of 5/8 inches, these adapters ensure accurate flow regulation. Constructed with Brass/Plastic materials and Buna-N seals, they withstand pressures up to 140 psig. Meeting stringent industry standards, these adapters guarantee optimal performance and longevity in various applications.
Product Specifications
Dimensions Orifice Diameter
0.0091 in
Dimensions Total Length
0.89 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.479 | 5 psig: 1.10 | 10 psig: 1.57 | 15 psig: 1.97 | 20 psig: 2.33 | 25 psig: 2.69 | 30 psig: 3.03 | 40 psig: 3.75 | 50 psig: 4.45 | 60 psig: 5.13 | 70 psig: 5.83 | 80 psig: 6.53 | 90 psig: 7.20 | 100 psig: 7.88
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.226 | 5 psig (34.5 kPag): 0.52 | 10 psig (69.0 kPag): 0.74 | 15 psig (103.4 kPag): 0.93 | 20 psig (137.9 kPag): 1.10 | 25 psig (172.4 kPag): 1.27 | 30 psig (206.9 kPag): 1.43 | 40 psig (275.8 kPag): 1.77 | 50 psig (344.8 kPag): 2.10 | 60 psig (413.7 kPag): 2.42 | 70 psig (482.7 kPag): 2.75 | 80 psig (551.6 kPag): 3.08 | 90 psig (620.6 kPag): 3.40 | 100 psig (689.5 kPag): 3.72
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.964 | 20 In. Hg.: 0.964 | 30 In. Hg.: 0.964
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.455 | 20 In. Hg. (508 Mm. Hg.): 0.455 | 30 In. Hg. (762 Mm. Hg.): 0.455
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.703 | 10 In. Hg.: 0.892
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.332 | 10 In. Hg. (254 Mm. Hg.): 0.421
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0019 | 2 psig: 0.0027 | 3 psig: 0.0033 | 4 psig: 0.0038 | 5 psig: 0.0042 | 6 psig: 0.0047 | 7 psig: 0.0050 | 8 psig: 0.0054 | 9 psig: 0.0057 | 10 psig: 0.0060 | 15 psig: 0.0074 | 20 psig: 0.0085 | 30 psig: 0.0104 | 40 psig: 0.0120 | 50 psig: 0.0134 | 60 psig: 0.0147 | 70 psig: 0.0159 | 80 psig: 0.0170 | 90 psig: 0.0180 | 100 psig: 0.0190
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0072 | 2 psig (13.8 kPag): 0.0102 | 3 psig (20.7 kPag): 0.0125 | 4 psig (27.6 kPag): 0.0144 | 5 psig (34.5 kPag): 0.0161 | 6 psig (41.4 kPag): 0.0161 | 7 psig (48.3 kPag): 0.0190 | 8 psig (55.2 kPag): 0.0203 | 9 psig (62.1 kPag): 0.0216 | 10 psig (69 kPag): 0.0227 | 15 psig (103.4 kPag): 0.0279 | 20 psig (137.9 kPag): 0.0322 | 30 psig (206.9 kPag): 0.0394 | 40 psig (275.8 kPag): 0.0455 | 50 psig (344.8 kPag): 0.0509 | 60 psig (413.7 kPag): 0.0557 | 70 psig (482.7 kPag): 0.0602 | 80 psig (551.6 kPag): 0.0643 | 90 psig (620.6 kPag): 0.0682 | 100 psig (689.5 kPag): 0.0719
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.0019
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
9
Specifications Screened
None
Specifications Seal Material
Buna-N
