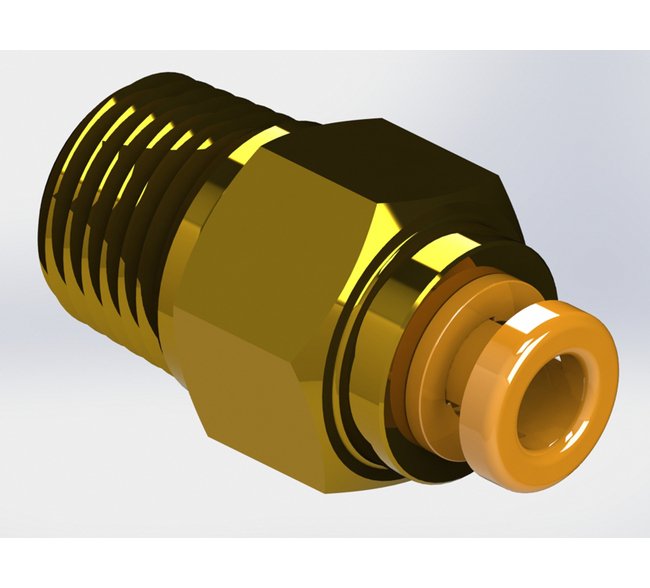

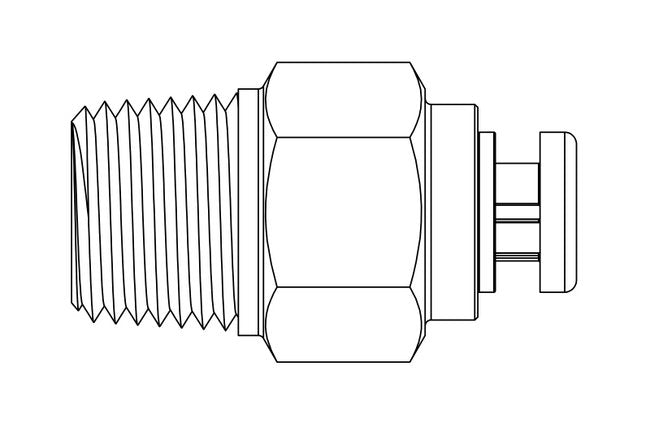

Precision Metal Orifice Adapters - 1/8" NPT x Tube
Precision Metal Orifice Adapters - 1/8" NPT x Tube
SKU:PRE-7761f5
Enhance fluid control with Precision Metal Orifice Adapters - ideal for accurate flow in industrial settings.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifice Adapters - 1/8" NPT x Tube
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Adapters - 1/8" NPT x Tube
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

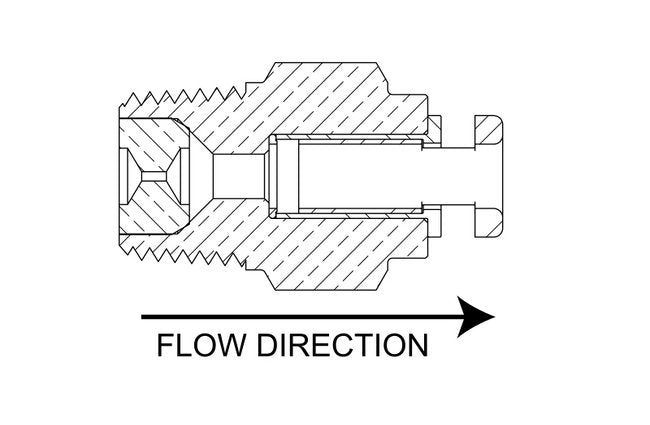

Enhance your fluid systems with our Precision Metal Orifice Adapters. Made of durable brass and plastic with Buna-N seals, these adapters ensure reliable performance under pressure. With a CV of 0.028 and a maximum operating pressure of 140 psig, they deliver precise flow control. Engineered to meet stringent standards, these adapters are ideal for industrial applications requiring accuracy and efficiency.
Product Specifications
Dimensions Orifice Diameter
0.035 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 7.37 | 5 psig: 16.3 | 10 psig: 22.5 | 15 psig: 27.8 | 20 psig: 32.4 | 25 psig: 37.5 | 30 psig: 42.4 | 40 psig: 52.5 | 50 psig: 62.5 | 60 psig: 72.7 | 70 psig: 83.1 | 80 psig: 93.0 | 90 psig: 106 | 100 psig: 114
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 3.48 | 5 psig (34.5 kPag): 7.67 | 10 psig (69.0 kPag): 10.6 | 15 psig (103.4 kPag): 13.1 | 20 psig (137.9 kPag): 15.3 | 25 psig (172.4 kPag): 17.7 | 30 psig (206.9 kPag): 20 | 40 psig (275.8 kPag): 24.8 | 50 psig (344.8 kPag): 29.5 | 60 psig (413.7 kPag): 34.3 | 70 psig (482.7 kPag): 39.2 | 80 psig (551.6 kPag): 44 | 90 psig (620.6 kPag): 50 | 100 psig (689.5 kPag): 53.9
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 13.8 | 20 In. Hg.: 13.8 | 30 In. Hg.: 13.8
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 6.5 | 20 In. Hg. (508 Mm. Hg.): 6.5 | 30 In. Hg. (762 Mm. Hg.): 6.5
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 10.4 | 10 In. Hg.: 13.1
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 4.92 | 10 In. Hg. (254 Mm. Hg.): 6.18
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.028 | 2 psig: 0.040 | 3 psig: 0.048 | 4 psig: 0.056 | 5 psig: 0.063 | 6 psig: 0.069 | 7 psig: 0.074 | 8 psig: 0.079 | 9 psig: 0.084 | 10 psig: 0.089 | 15 psig: 0.108 | 20 psig: 0.125 | 30 psig: 0.153 | 40 psig: 0.177 | 50 psig: 0.198 | 60 psig: 0.217 | 70 psig: 0.234 | 80 psig: 0.250 | 90 psig: 0.266 | 100 psig: 0.280
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.106 | 2 psig (13.8 kPag): 0.150 | 3 psig (20.7 kPag): 0.184 | 4 psig (27.6 kPag): 0.212 | 5 psig (34.5 kPag): 0.237 | 6 psig (41.4 kPag): 0.260 | 7 psig (48.3 kPag): 0.280 | 8 psig (55.2 kPag): 0.300 | 9 psig (62.1 kPag): 0.318 | 10 psig (69 kPag): 0.335 | 15 psig (103.4 kPag): 0.411 | 20 psig (137.9 kPag): 0.474 | 30 psig (206.9 kPag): 0.581 | 40 psig (275.8 kPag): 0.67 | 50 psig (344.8 kPag): 0.749 | 60 psig (413.7 kPag): 0.821 | 70 psig (482.7 kPag): 0.887 | 80 psig (551.6 kPag): 0.948 | 90 psig (620.6 kPag): 1.006 | 100 psig (689.5 kPag): 1.060
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" OD Tube Push-Lock
Specifications Cv
0.028
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
35
Specifications Screened
None
Specifications Seal Material
Buna-N
