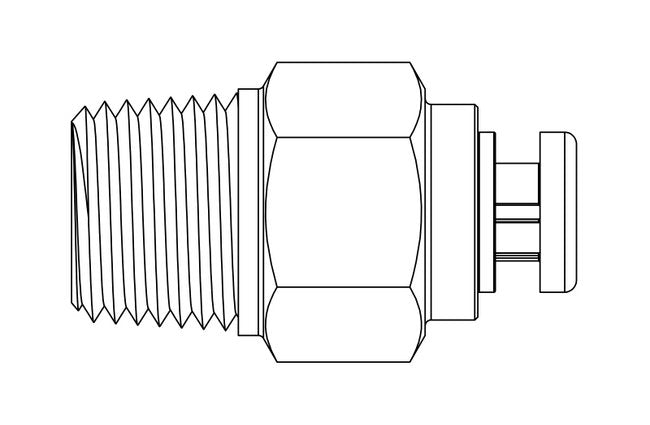

Precision Metal Orifice Adapters, 1/8" NPT x Tube
Precision Metal Orifice Adapters, 1/8" NPT x Tube
SKU:PRE-8e6821
Achieve precise flow control with our high-quality Precision Metal Orifice Adapters. Ideal for air and water applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifice Adapters, 1/8" NPT x Tube
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Adapters, 1/8" NPT x Tube
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

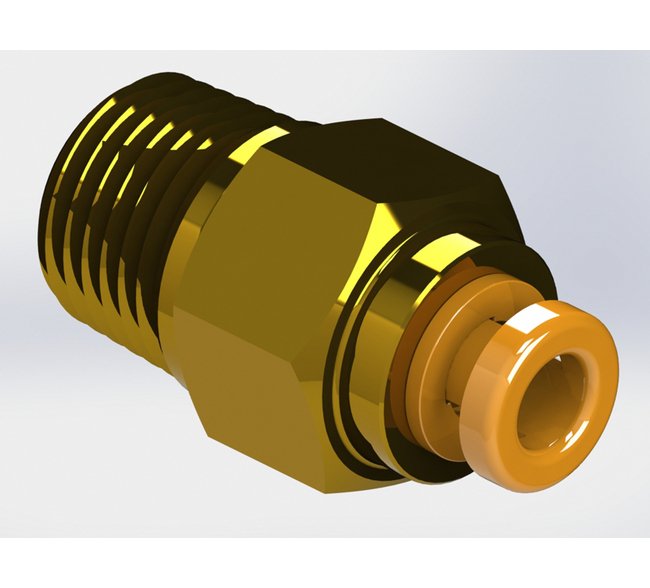

Enhance your fluid control systems with our Precision Metal Orifice Adapters. Made of durable Brass/Plastic, these adapters feature a nominal orifice size of 60, suitable for air and water applications. With a CV of 0.081 and a maximum operating pressure of 140 psig, they ensure precise flow control and compatibility with standard tubing. Meet your flow requirements efficiently and reliably with these adapters that exceed industry standards for quality and performance.
Product Specifications

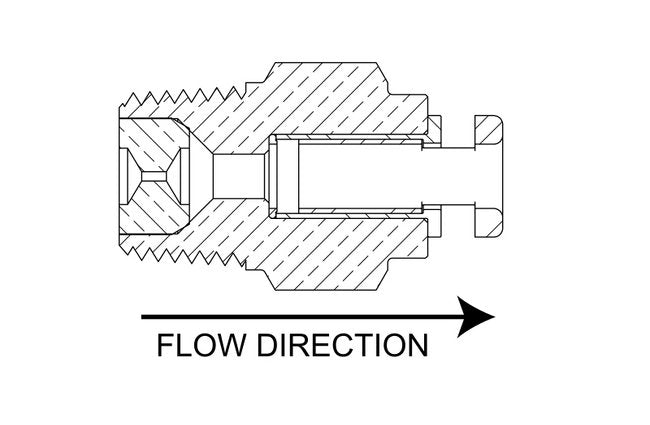

Dimensions Orifice Diameter
0.06 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 23.7 | 5 psig: 50.6 | 10 psig: 68.2 | 15 psig: 82.6 | 20 psig: 97.3 | 25 psig: 112 | 30 psig: 126 | 40 psig: 156 | 50 psig: 185 | 60 psig: 214 | 70 psig: 244 | 80 psig: 273 | 90 psig: 303 | 100 psig: 331
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 11.2 | 5 psig (34.5 kPag): 23.9 | 10 psig (69.0 kPag): 32.2 | 15 psig (103.4 kPag): 39 | 20 psig (137.9 kPag): 45.9 | 25 psig (172.4 kPag): 52.8 | 30 psig (206.9 kPag): 59.7 | 40 psig (275.8 kPag): 73.6 | 50 psig (344.8 kPag): 87.4 | 60 psig (413.7 kPag): 101 | 70 psig (482.7 kPag): 115 | 80 psig (551.6 kPag): 129 | 90 psig (620.6 kPag): 143 | 100 psig (689.5 kPag): 156
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 39.4 | 20 In. Hg.: 39.4 | 30 In. Hg.: 39.4
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 18.6 | 20 In. Hg. (508 Mm. Hg.): 18.6 | 30 In. Hg. (762 Mm. Hg.): 18.6
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 31.4 | 10 In. Hg.: 38.6
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 14.8 | 10 In. Hg. (254 Mm. Hg.): 18.2
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.081 | 2 psig: 0.115 | 3 psig: 0.140 | 4 psig: 0.162 | 5 psig: 0.181 | 6 psig: 0.198 | 7 psig: 0.214 | 8 psig: 0.229 | 9 psig: 0.243 | 10 psig: 0.256 | 15 psig: 0.314 | 20 psig: 0.362 | 30 psig: 0.444 | 40 psig: 0.512 | 50 psig: 0.573 | 60 psig: 0.627 | 70 psig: 0.678 | 80 psig: 0.724 | 90 psig: 0.768 | 100 psig: 0.810
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.307 | 2 psig (13.8 kPag): 0.434 | 3 psig (20.7 kPag): 0.531 | 4 psig (27.6 kPag): 0.613 | 5 psig (34.5 kPag): 0.686 | 6 psig (41.4 kPag): 0.751 | 7 psig (48.3 kPag): 0.811 | 8 psig (55.2 kPag): 0.867 | 9 psig (62.1 kPag): 0.920 | 10 psig (69 kPag): 0.970 | 15 psig (103.4 kPag): 1.188 | 20 psig (137.9 kPag): 1.371 | 30 psig (206.9 kPag): 1.679 | 40 psig (275.8 kPag): 1.939 | 50 psig (344.8 kPag): 2.168 | 60 psig (413.7 kPag): 2.375 | 70 psig (482.7 kPag): 2.565 | 80 psig (551.6 kPag): 2.742 | 90 psig (620.6 kPag): 2.909 | 100 psig (689.5 kPag): 3.066
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" OD Tube Push-Lock
Specifications Cv
0.081
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
60
Specifications Screened
None
Specifications Seal Material
Buna-N
