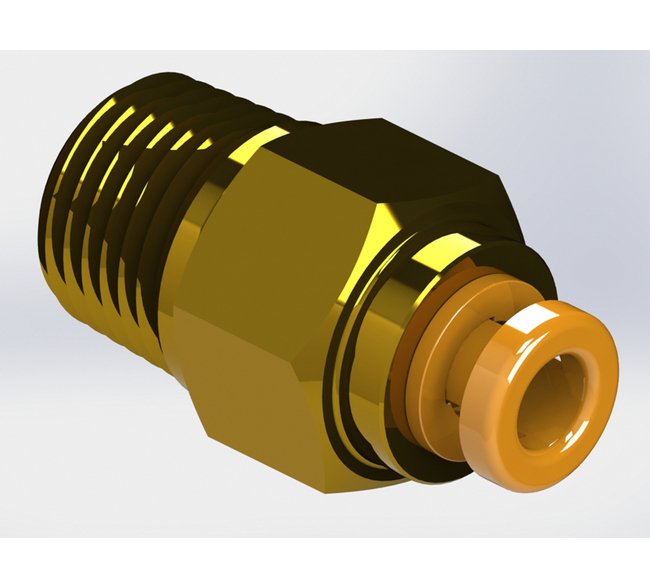

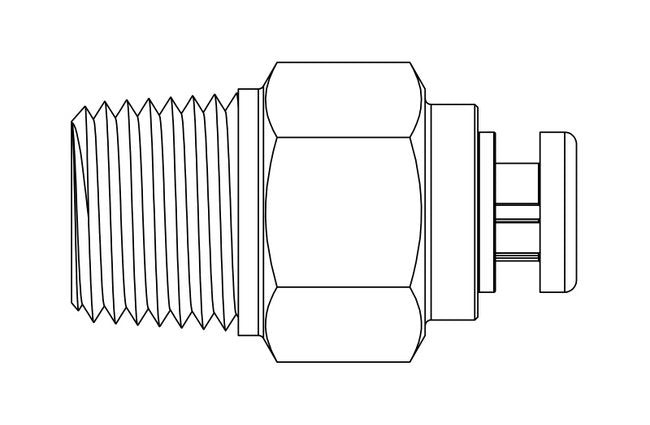

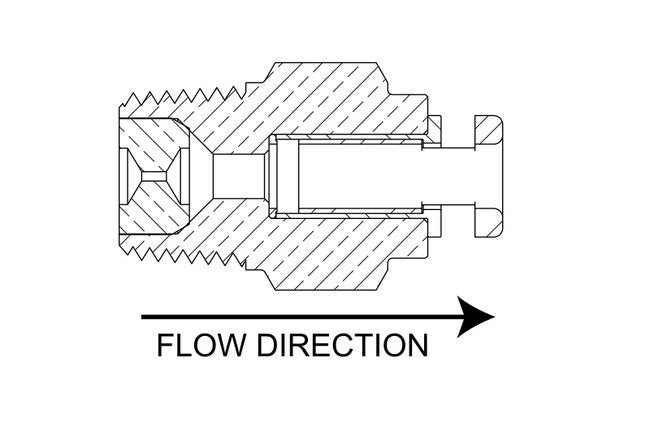

The Precision Metal Orifice Adapters are meticulously crafted for precise flow control and durability. Constructed with brass and Buna-N seal material, these adapters ensure reliable performance under pressure up to 140 psig. With an orifice diameter of 0.041 inches and a CV of 0.038, these adapters offer consistent airflow rates across a range of pressures. Ideal for institutional applications requiring high-quality components that meet stringent standards.
Product Specifications
Dimensions Orifice Diameter
0.041 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 9.90 | 5 psig: 22.5 | 10 psig: 31.4 | 15 psig: 38.6 | 20 psig: 45.3 | 25 psig: 52.3 | 30 psig: 59.3 | 40 psig: 73.3 | 50 psig: 87.5 | 60 psig: 102 | 70 psig: 117 | 80 psig: 131 | 90 psig: 146 | 100 psig: 164
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 4.67 | 5 psig (34.5 kPag): 10.6 | 10 psig (69.0 kPag): 14.8 | 15 psig (103.4 kPag): 18.2 | 20 psig (137.9 kPag): 21.4 | 25 psig (172.4 kPag): 24.7 | 30 psig (206.9 kPag): 28 | 40 psig (275.8 kPag): 34.6 | 50 psig (344.8 kPag): 41.3 | 60 psig (413.7 kPag): 48.1 | 70 psig (482.7 kPag): 55 | 80 psig (551.6 kPag): 61.9 | 90 psig (620.6 kPag): 68.9 | 100 psig (689.5 kPag): 77.3
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 18.8 | 20 In. Hg.: 18.8 | 30 In. Hg.: 18.8
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 8.87 | 20 In. Hg. (508 Mm. Hg.): 8.87 | 30 In. Hg. (762 Mm. Hg.): 8.87
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 14.5 | 10 In. Hg.: 18.0
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 6.82 | 10 In. Hg. (254 Mm. Hg.): 8.5
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.038 | 2 psig: 0.054 | 3 psig: 0.066 | 4 psig: 0.076 | 5 psig: 0.085 | 6 psig: 0.093 | 7 psig: 0.101 | 8 psig: 0.107 | 9 psig: 0.114 | 10 psig: 0.120 | 15 psig: 0.147 | 20 psig: 0.170 | 30 psig: 0.208 | 40 psig: 0.240 | 50 psig: 0.269 | 60 psig: 0.294 | 70 psig: 0.318 | 80 psig: 0.340 | 90 psig: 0.360 | 100 psig: 0.380
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.144 | 2 psig (13.8 kPag): 0.203 | 3 psig (20.7 kPag): 0.249 | 4 psig (27.6 kPag): 0.288 | 5 psig (34.5 kPag): 0.322 | 6 psig (41.4 kPag): 0.352 | 7 psig (48.3 kPag): 0.381 | 8 psig (55.2 kPag): 0.407 | 9 psig (62.1 kPag): 0.432 | 10 psig (69 kPag): 0.455 | 15 psig (103.4 kPag): 0.557 | 20 psig (137.9 kPag): 0.643 | 30 psig (206.9 kPag): 0.788 | 40 psig (275.8 kPag): 0.910 | 50 psig (344.8 kPag): 1.017 | 60 psig (413.7 kPag): 1.114 | 70 psig (482.7 kPag): 1.203 | 80 psig (551.6 kPag): 1.287 | 90 psig (620.6 kPag): 1.365 | 100 psig (689.5 kPag): 1.438
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" OD Tube Push-Lock
Specifications Cv
0.038
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
41
Specifications Screened
None
Specifications Seal Material
Buna-N
