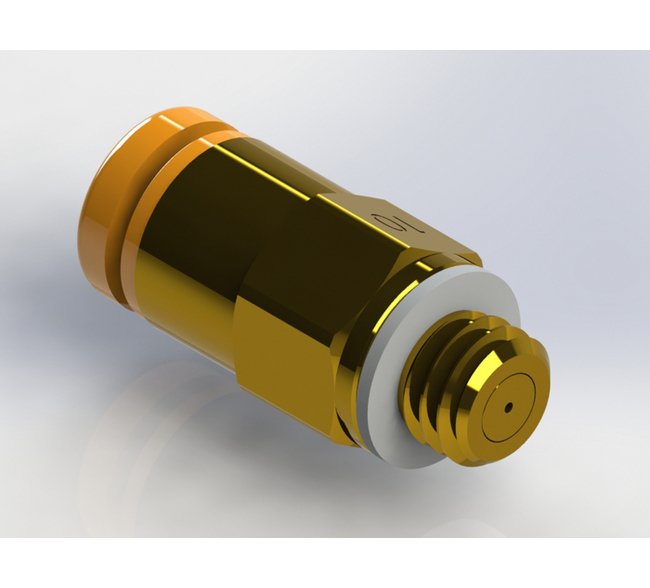

Precision Metal Orifice Adapters, 10-32 UNF x Tube
Precision Metal Orifice Adapters, 10-32 UNF x Tube
SKU:PRE-7ebc65
Premium Precision Metal Orifice Adapters for precise airflow control in industrial setups. Durable, reliable, and compliant with institutional standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifice Adapters, 10-32 UNF x Tube
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Adapters, 10-32 UNF x Tube
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

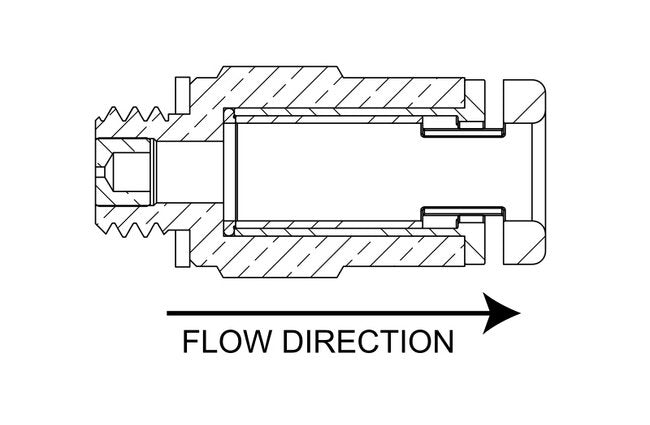

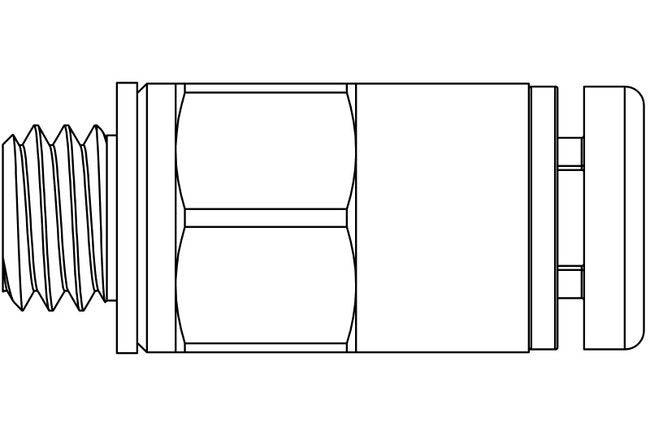

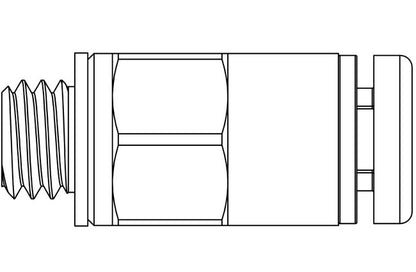

The Precision Metal Orifice Adapters are expertly crafted for precise airflow control in industrial settings. Made of durable Brass/Plastic with Buna-N seals, these adapters ensure reliable performance under pressure up to 140 psig. With an Orifice Diameter of 0.029 inches and a CV of 0.019, they deliver consistent air and water flow rates. Designed with 10-32 UNF Male and 1/8" OD Tube Push-Lock connections, these adapters guarantee a secure fit. Compliant with Federal/DoD procurement standards and FAR compliance factors, these adapters meet the stringent requirements of institutional buyers.
Product Specifications
Dimensions Orifice Diameter
0.029 in
Dimensions Total Length
0.66 in
Dimensions Width Across Flats Hex
9/32 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 5.06 | 5 psig: 11.3 | 10 psig: 16.6 | 15 psig: 20.3 | 20 psig: 23.7 | 25 psig: 27.1 | 30 psig: 30.5 | 40 psig: 37.1 | 50 psig: 43.9 | 60 psig: 50.4 | 70 psig: 57.2 | 80 psig: 64.0 | 90 psig: 71.0 | 100 psig: 78.0
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 2.39 | 5 psig (34.5 kPag): 5.31 | 10 psig (69.0 kPag): 7.83 | 15 psig (103.4 kPag): 9.58 | 20 psig (137.9 kPag): 11.2 | 25 psig (172.4 kPag): 12.8 | 30 psig (206.9 kPag): 14.4 | 40 psig (275.8 kPag): 17.5 | 50 psig (344.8 kPag): 20.7 | 60 psig (413.7 kPag): 23.8 | 70 psig (482.7 kPag): 27.0 | 80 psig (551.6 kPag): 30.2 | 90 psig (620.6 kPag): 33.5 | 100 psig (689.5 kPag): 36.8
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 9.56 | 20 In. Hg.: 9.56 | 30 In. Hg.: 9.56
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 4.51 | 20 In. Hg. (508 Mm. Hg.): 4.51 | 30 In. Hg. (762 Mm. Hg.): 4.51
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 7.23 | 10 In. Hg.: 9.11
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 3.41 | 10 In. Hg. (254 Mm. Hg.): 4.30
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.019 | 2 psig: 0.027 | 3 psig: 0.033 | 4 psig: 0.038 | 5 psig: 0.042 | 6 psig: 0.047 | 7 psig: 0.050 | 8 psig: 0.054 | 9 psig: 0.057 | 10 psig: 0.060 | 15 psig: 0.074 | 20 psig: 0.085 | 30 psig: 0.104 | 40 psig: 0.120 | 50 psig: 0.134 | 60 psig: 0.147 | 70 psig: 0.159 | 80 psig: 0.170 | 90 psig: 0.180 | 100 psig: 0.190
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.072 | 2 psig (13.8 kPag): 0.102 | 3 psig (20.7 kPag): 0.125 | 4 psig (27.6 kPag): 0.144 | 5 psig (34.5 kPag): 0.161 | 6 psig (41.4 kPag): 0.161 | 7 psig (48.3 kPag): 0.190 | 8 psig (55.2 kPag): 0.203 | 9 psig (62.1 kPag): 0.216 | 10 psig (69 kPag): 0.227 | 15 psig (103.4 kPag): 0.279 | 20 psig (137.9 kPag): 0.322 | 30 psig (206.9 kPag): 0.394 | 40 psig (275.8 kPag): 0.455 | 50 psig (344.8 kPag): 0.509 | 60 psig (413.7 kPag): 0.557 | 70 psig (482.7 kPag): 0.602 | 80 psig (551.6 kPag): 0.643 | 90 psig (620.6 kPag): 0.682 | 100 psig (689.5 kPag): 0.719
Specifications Connection A
10-32 UNF Male
Specifications Connection B
1/8" OD Tube Push-Lock
Specifications Cv
0.019
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
29
Specifications Screened
None
Specifications Seal Material
Buna-N
