Precision Metal Orifice Assembly - Type QX, 10-32 UNF Bleed Plug
Precision Metal Orifice Assembly - Type QX, 10-32 UNF Bleed Plug
SKU:PRE-9d3153
Explore our Precision Metal Orifice Assembly for precise flow control and durability in industrial applications.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
Precision Metal Orifice Assembly - Type QX, 10-32 UNF Bleed Plug
$42.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Assembly - Type QX, 10-32 UNF Bleed Plug
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

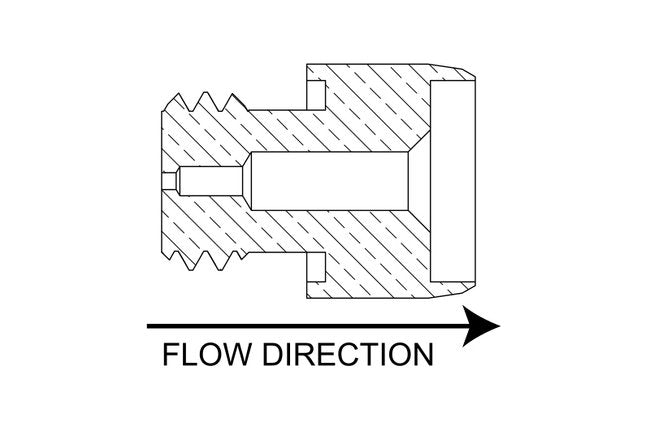

The Precision Metal Orifice Assembly - Bleed Plug, Type QX, is meticulously machined from 303 SS to ensure accuracy and reliability in flow control applications. With a Viton seal, this orifice assembly offers a Nominal Orifice Size of 0.026" and a CV of 0.016, suitable for a Maximum Operating Pressure of 100 psig. Ideal for precise throttling in pneumatic or hydraulic circuits, this product guarantees exceptional performance and durability. Custom sizes available upon request.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Precision Flow Control - Gases or Liquids Speed Controls - Cylinders and Actuators Accurate Timing in Pneumatic or Hydraulic Circuits Flow Restriction Accurate Throttling Snubbers - Gages and Instruments
Dimensions Orifice Diameter
0.026 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
0.335 in
Dimensions Width Across Flats Hex
1/4 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 4.05 | 5 psig: 9.20 | 10 psig: 13.0 | 15 psig: 16.1 | 20 psig: 18.9 | 25 psig: 21.6 | 30 psig: 24.4 | 40 psig: 29.9 | 50 psig: 35.2 | 60 psig: 40.7 | 70 psig: 46.0 | 80 psig: 51.3 | 90 psig: 56.8 | 100 psig: 62.3
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.91 | 5 psig (34.5 kPag): 4.34 | 10 psig (69.0 kPag): 6.15 | 15 psig (103.4 kPag): 7.58 | 20 psig (137.9 kPag): 8.90 | 25 psig (172.4 kPag): 10.2 | 30 psig (206.9 kPag): 11.5 | 40 psig (275.8 kPag): 14.1 | 50 psig (344.8 kPag): 16.6 | 60 psig (413.7 kPag): 19.2 | 70 psig (482.7 kPag): 21.7 | 80 psig (551.6 kPag): 24.2 | 90 psig (620.6 kPag): 26.8 | 100 psig (689.5 kPag): 29.4
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 7.73 | 20 In. Hg.: 7.73 | 30 In. Hg.: 7.73
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 3.65 | 20 In. Hg. (508 Mm. Hg.): 3.65 | 30 In. Hg. (762 Mm. Hg.): 3.65
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 5.81 | 10 In. Hg.: 7.29
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.74 | 10 In. Hg. (254 Mm. Hg.): 3.44
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.016 | 2 psig: 0.023 | 3 psig: 0.028 | 4 psig: 0.032 | 5 psig: 0.036 | 6 psig: 0.039 | 7 psig: 0.042 | 8 psig: 0.045 | 9 psig: 0.048 | 10 psig: 0.051 | 15 psig: 0.062 | 20 psig: 0.072 | 30 psig: 0.088 | 40 psig: 0.101 | 50 psig: 0.113 | 60 psig: 0.124 | 70 psig: 0.134 | 80 psig: 0.143 | 90 psig: 0.152 | 100 psig: 0.160
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.061 | 2 psig (13.8 kPag): 0.086 | 3 psig (20.7 kPag): 0.105 | 4 psig (27.6 kPag): 0.121 | 5 psig (34.5 kPag): 0.135 | 6 psig (41.4 kPag): 0.135 | 7 psig (48.3 kPag): 0.160 | 8 psig (55.2 kPag): 0.171 | 9 psig (62.1 kPag): 0.182 | 10 psig (69 kPag): 0.192 | 15 psig (103.4 kPag): 0.235 | 20 psig (137.9 kPag): 0.271 | 30 psig (206.9 kPag): 0.332 | 40 psig (275.8 kPag): 0.383 | 50 psig (344.8 kPag): 0.428 | 60 psig (413.7 kPag): 0.469 | 70 psig (482.7 kPag): 0.507 | 80 psig (551.6 kPag): 0.542 | 90 psig (620.6 kPag): 0.575 | 100 psig (689.5 kPag): 0.606
Specifications Connection A
10-32 UNF Male
Specifications Cv
0.016
Specifications Material
303 SS
Specifications Maximum Operating Pressure
100 psig
Specifications Nominal Orifice Size
26
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Taper
7.5 º
