Precision Metal Orifice Inserts 0.061" OD
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Inserts 0.061" OD
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

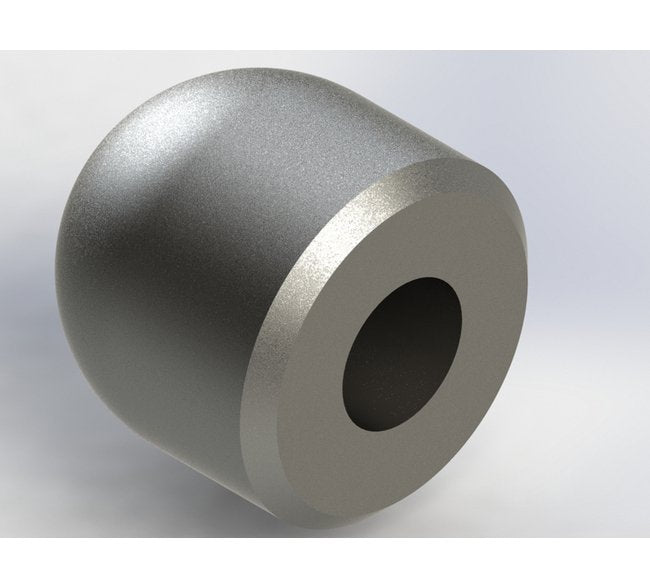

The Precision Metal Orifice Inserts are meticulously designed for precise press-fit installation in a variety of fittings, manifolds, and custom parts. Crafted from high-grade 303 SS material, these inserts offer exceptional dimensional accuracy with an Orifice Diameter within ±0.0005 inches. Ideal for applications requiring controlled flow rates of liquids or gases, they can withstand a Maximum Operating Pressure of 4000 psig. These inserts guarantee reliable performance and effortless integration, making them a superior choice for industrial and institutional fluid handling requirements.
Product Specifications
Application 0

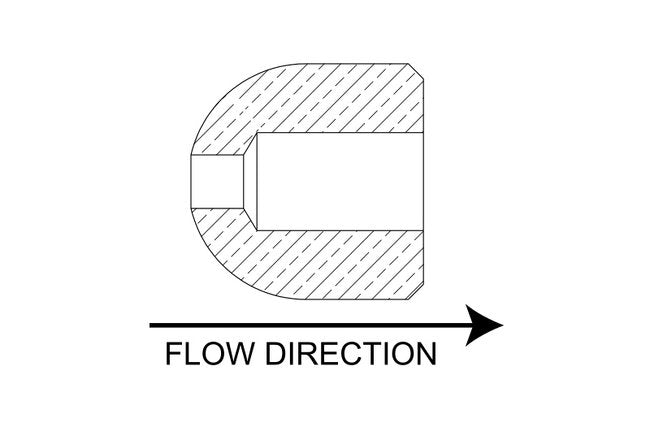

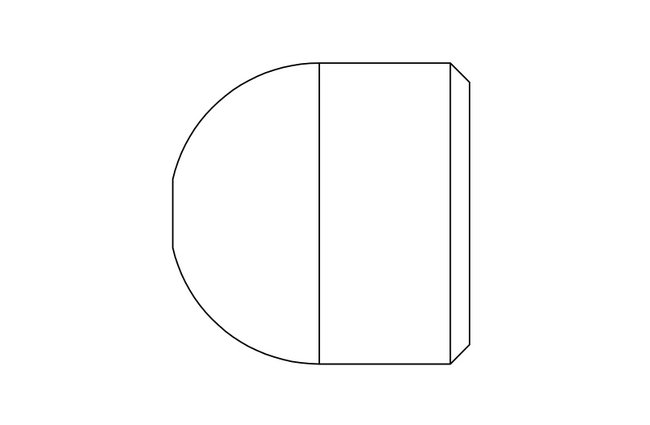

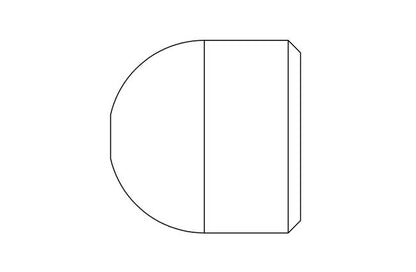

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.0625 in
Dimensions Minimum Outside Diameter
0.0615 in
Dimensions Orifice Diameter
0.0051 in | 0.13 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.0605 to 0.0610 in
Dimensions Total Length
0.062 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.136 | 5 psig: 0.33 | 10 psig: 0.47 | 15 psig: 0.59 | 20 psig: 0.70 | 25 psig: 0.82 | 30 psig: 0.92 | 40 psig: 1.15 | 50 psig: 1.37 | 60 psig: 1.59 | 70 psig: 1.82 | 80 psig: 2.04 | 90 psig: 2.27 | 100 psig: 2.48
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.064 | 5 psig (34.5 kPag): 0.16 | 10 psig (69.0 kPag): 0.22 | 15 psig (103.4 kPag): 0.28 | 20 psig (137.9 kPag): 0.33 | 25 psig (172.4 kPag): 0.39 | 30 psig (206.9 kPag): 0.44 | 40 psig (275.8 kPag): 0.54 | 50 psig (344.8 kPag): 0.65 | 60 psig (413.7 kPag): 0.75 | 70 psig (482.7 kPag): 0.86 | 80 psig (551.6 kPag): 0.96 | 90 psig (620.6 kPag): 1.07 | 100 psig (689.5 kPag): 1.17
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.284 | 20 In. Hg.: 0.284 | 30 In. Hg.: 0.284
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.134 | 20 In. Hg. (508 Mm. Hg.): 0.134 | 30 In. Hg. (762 Mm. Hg.): 0.134
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.203 | 10 In. Hg.: 0.263
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.096 | 10 In. Hg. (254 Mm. Hg.): 0.124
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0006 | 2 psig: 0.0009 | 3 psig: 0.0011 | 4 psig: 0.0012 | 5 psig: 0.0014 | 6 psig: 0.0015 | 7 psig: 0.0016 | 8 psig: 0.0017 | 9 psig: 0.0018 | 10 psig: 0.0019 | 15 psig: 0.0024 | 20 psig: 0.0027 | 30 psig: 0.0033 | 40 psig: 0.0039 | 50 psig: 0.0043 | 60 psig: 0.0047 | 70 psig: 0.0051 | 80 psig: 0.0055 | 90 psig: 0.0058 | 100 psig: 0.0061
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0023 | 2 psig (13.8 kPag): 0.0033 | 3 psig (20.7 kPag): 0.0040 | 4 psig (27.6 kPag): 0.0046 | 5 psig (34.5 kPag): 0.0052 | 6 psig (41.4 kPag): 0.0052 | 7 psig (48.3 kPag): 0.0061 | 8 psig (55.2 kPag): 0.0065 | 9 psig (62.1 kPag): 0.0069 | 10 psig (69 kPag): 0.0073 | 15 psig (103.4 kPag): 0.0089 | 20 psig (137.9 kPag): 0.0103 | 30 psig (206.9 kPag): 0.0126 | 40 psig (275.8 kPag): 0.0146 | 50 psig (344.8 kPag): 0.0163 | 60 psig (413.7 kPag): 0.0179 | 70 psig (482.7 kPag): 0.0193 | 80 psig (551.6 kPag): 0.0207 | 90 psig (620.6 kPag): 0.0219 | 100 psig (689.5 kPag): 0.0231
Specifications Connection A
.0615" Press-Fit Insert
Specifications Cv
0.00061
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
5
Specifications Screened
None
