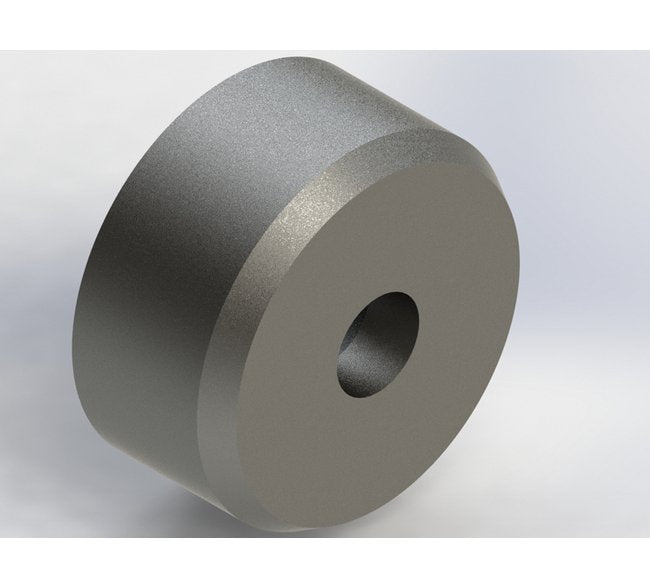

Upgrade your fluid control systems with our Precision Metal Orifice Inserts. Made of high-quality 303 SS, these press-fit inserts ensure accurate flow rate control in fittings and manifolds. With an orifice diameter accuracy of ±0.0005 in and a maximum operating pressure of 4000 psig, these inserts guarantee precision and reliability. Ideal for applications requiring meticulous flow rate adjustments.
Product Specifications
Application 0

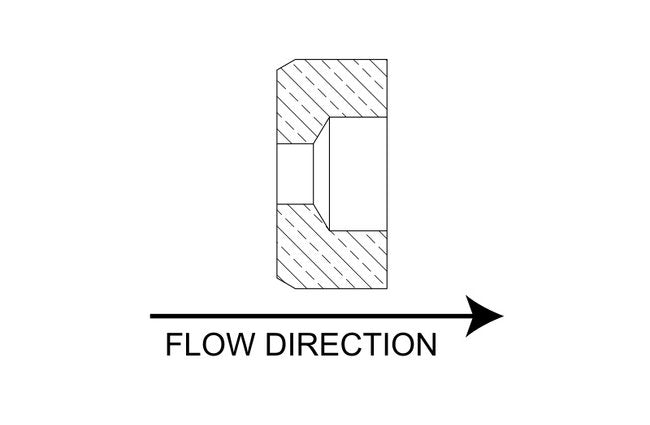

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.1250 in
Dimensions Minimum Outside Diameter
0.1240 in
Dimensions Orifice Diameter
0.013 in | 0.33 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.1230 to 0.1235 in
Dimensions Total Length
0.060 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.962 | 5 psig: 2.25 | 10 psig: 3.14 | 15 psig: 3.92 | 20 psig: 4.64 | 25 psig: 5.30 | 30 psig: 5.98 | 40 psig: 7.31 | 50 psig: 8.62 | 60 psig: 10.0 | 70 psig: 11.3 | 80 psig: 12.6 | 90 psig: 13.9 | 100 psig: 15.3
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.45 | 5 psig (34.5 kPag): 1.06 | 10 psig (69.0 kPag): 1.48 | 15 psig (103.4 kPag): 1.85 | 20 psig (137.9 kPag): 2.19 | 25 psig (172.4 kPag): 2.50 | 30 psig (206.9 kPag): 2.82 | 40 psig (275.8 kPag): 3.45 | 50 psig (344.8 kPag): 4.07 | 60 psig (413.7 kPag): 4.70 | 70 psig (482.7 kPag): 5.32 | 80 psig (551.6 kPag): 5.95 | 90 psig (620.6 kPag): 6.58 | 100 psig (689.5 kPag): 7.22
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 1.91 | 20 In. Hg.: 1.91 | 30 In. Hg.: 1.91
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.902 | 20 In. Hg. (508 Mm. Hg.): 0.902 | 30 In. Hg. (762 Mm. Hg.): 0.902
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 1.4 | 10 In. Hg.: 1.77
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.661 | 10 In. Hg. (254 Mm. Hg.): 0.834
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0038 | 2 psig: 0.0054 | 3 psig: 0.0066 | 4 psig: 0.0076 | 5 psig: 0.0085 | 6 psig: 0.0093 | 7 psig: 0.0101 | 8 psig: 0.0107 | 9 psig: 0.0114 | 10 psig: 0.0120 | 15 psig: 0.0147 | 20 psig: 0.0170 | 30 psig: 0.0208 | 40 psig: 0.0240 | 50 psig: 0.0269 | 60 psig: 0.0294 | 70 psig: 0.0318 | 80 psig: 0.0340 | 90 psig: 0.0360 | 100 psig: 0.0380
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0144 | 2 psig (13.8 kPag): 0.0203 | 3 psig (20.7 kPag): 0.0249 | 4 psig (27.6 kPag): 0.0288 | 5 psig (34.5 kPag): 0.0322 | 6 psig (41.4 kPag): 0.0322 | 7 psig (48.3 kPag): 0.0381 | 8 psig (55.2 kPag): 0.0407 | 9 psig (62.1 kPag): 0.0432 | 10 psig (69 kPag): 0.0455 | 15 psig (103.4 kPag): 0.0557 | 20 psig (137.9 kPag): 0.0643 | 30 psig (206.9 kPag): 0.0788 | 40 psig (275.8 kPag): 0.0910 | 50 psig (344.8 kPag): 0.1017 | 60 psig (413.7 kPag): 0.1114 | 70 psig (482.7 kPag): 0.1203 | 80 psig (551.6 kPag): 0.1287 | 90 psig (620.6 kPag): 0.1365 | 100 psig (689.5 kPag): 0.1438
Specifications Connection A
.124" Press-Fit Insert
Specifications Cv
0.0038
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
13
Specifications Screened
None
