Precision Metal Orifice Press-Fit Inserts
Precision Metal Orifice Press-Fit Inserts
SKU:PRE-db75e4
High-precision brass inserts for accurate flow rate control in fittings and manifolds. Nominal orifice size of 15 and maximum operating pressure of 2000 psig.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifice Press-Fit Inserts
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Press-Fit Inserts
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

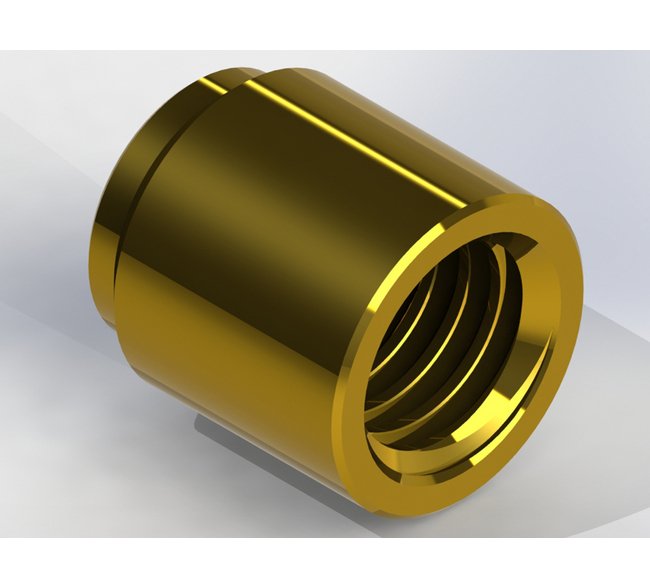

The Precision Metal Orifice Press-Fit Inserts are meticulously designed for precise press-fitting into accurately machined openings in fittings, manifolds, and custom parts. Available in various sizes and constructed from durable brass, these inserts ensure reliable flow rate control of liquids or gases. With a nominal orifice size of 15 and a maximum operating pressure of 2000 psig, they are ideal for applications requiring pinpoint flow regulation. Trusted by industry professionals, these inserts guarantee exceptional performance and longevity.
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.2495 in
Dimensions Minimum Outside Diameter
0.2490 in
Dimensions Orifice Diameter
0.015 in | 0.38 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.2475 to 0.2485 in
Dimensions Thread Size
10-32
Dimensions Total Length
0.270 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.30 | 5 psig: 2.99 | 10 psig: 4.13 | 15 psig: 5.17 | 20 psig: 6.08 | 25 psig: 6.95 | 30 psig: 7.82 | 40 psig: 9.56 | 50 psig: 11.3 | 60 psig: 13.0 | 70 psig: 14.7 | 80 psig: 16.5 | 90 psig: 18.3 | 100 psig: 20.0
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.61 | 5 psig (34.5 kPag): 1.41 | 10 psig (69.0 kPag): 1.95 | 15 psig (103.4 kPag): 2.44 | 20 psig (137.9 kPag): 2.87 | 25 psig (172.4 kPag): 3.28 | 30 psig (206.9 kPag): 3.69 | 40 psig (275.8 kPag): 4.51 | 50 psig (344.8 kPag): 5.31 | 60 psig (413.7 kPag): 6.13 | 70 psig (482.7 kPag): 6.96 | 80 psig (551.6 kPag): 7.79 | 90 psig (620.6 kPag): 8.62 | 100 psig (689.5 kPag): 9.46
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 2.59 | 20 In. Hg.: 2.59 | 30 In. Hg.: 2.59
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.22 | 20 In. Hg. (508 Mm. Hg.): 1.22 | 30 In. Hg. (762 Mm. Hg.): 1.22
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 1.9 | 10 In. Hg.: 2.37
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.899 | 10 In. Hg. (254 Mm. Hg.): 1.12
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0050 | 2 psig: 0.0071 | 3 psig: 0.0087 | 4 psig: 0.0100 | 5 psig: 0.0112 | 6 psig: 0.0122 | 7 psig: 0.0132 | 8 psig: 0.0141 | 9 psig: 0.0150 | 10 psig: 0.0158 | 15 psig: 0.0194 | 20 psig: 0.0224 | 30 psig: 0.0274 | 40 psig: 0.0316 | 50 psig: 0.0354 | 60 psig: 0.0387 | 70 psig: 0.0418 | 80 psig: 0.0447 | 90 psig: 0.0474 | 100 psig: 0.0500
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0189 | 2 psig (13.8 kPag): 0.0268 | 3 psig (20.7 kPag): 0.0328 | 4 psig (27.6 kPag): 0.0379 | 5 psig (34.5 kPag): 0.0423 | 6 psig (41.4 kPag): 0.0423 | 7 psig (48.3 kPag): 0.0501 | 8 psig (55.2 kPag): 0.0535 | 9 psig (62.1 kPag): 0.0568 | 10 psig (69 kPag): 0.0599 | 15 psig (103.4 kPag): 0.0733 | 20 psig (137.9 kPag): 0.0846 | 30 psig (206.9 kPag): 0.1037 | 40 psig (275.8 kPag): 0.1197 | 50 psig (344.8 kPag): 0.1338 | 60 psig (413.7 kPag): 0.1466 | 70 psig (482.7 kPag): 0.1584 | 80 psig (551.6 kPag): 0.1693 | 90 psig (620.6 kPag): 0.1796 | 100 psig (689.5 kPag): 0.1893
Specifications Connection A
.249" Press-Fit Insert
Specifications Cv
0.005
Specifications Material
Brass
Specifications Maximum Operating Pressure
2000 psig
Specifications Nominal Orifice Size
15
Specifications Screened
None
