Precision Metal Orifice Press-Fit Inserts 0.258" OD
Precision Metal Orifice Press-Fit Inserts 0.258" OD
SKU:PRE-07df03
Enhance fluid flow control with precision metal inserts for accurate flow regulation in fittings and manifolds.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifice Press-Fit Inserts 0.258" OD
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Press-Fit Inserts 0.258" OD
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

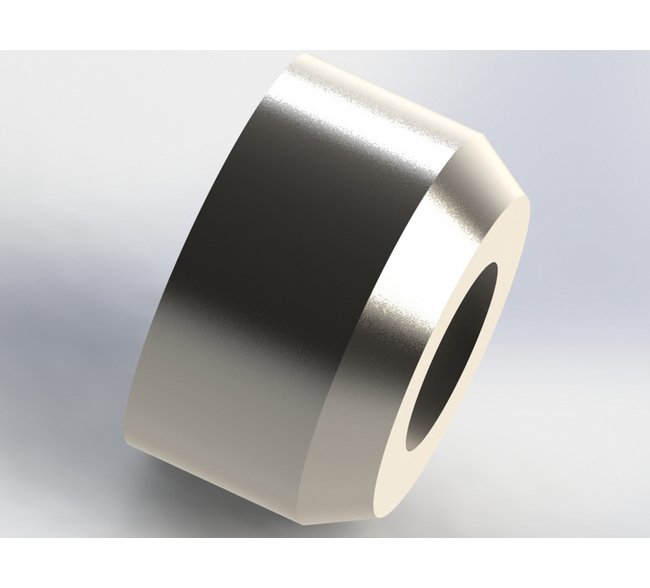

Enhance your fluid flow control systems with our Precision Metal Orifices Press-Fit Inserts. Made of 303 SS, these inserts ensure precise flow regulation with an orifice diameter accuracy of ±0.0005 in. Meet your application's demands with a CV of 0.088 and a maximum operating pressure of 4000 psig. These inserts are ideal for fittings, manifolds, and custom assemblies requiring accurate flow control of liquids or gases.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.259 in
Dimensions Minimum Outside Diameter
0.258 in
Dimensions Orifice Diameter
0.063 in | 1.6 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.256 to 0.257 in
Dimensions Total Length
0.156 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 25.9 | 5 psig: 55.3 | 10 psig: 74.6 | 15 psig: 90.3 | 20 psig: 106 | 25 psig: 122 | 30 psig: 138 | 40 psig: 170 | 50 psig: 202 | 60 psig: 233 | 70 psig: 267 | 80 psig: 298 | 90 psig: 331 | 100 psig: 362
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 12.2 | 5 psig (34.5 kPag): 26.1 | 10 psig (69.0 kPag): 35.2 | 15 psig (103.4 kPag): 42.6 | 20 psig (137.9 kPag): 50.1 | 25 psig (172.4 kPag): 57.7 | 30 psig (206.9 kPag): 65.2 | 40 psig (275.8 kPag): 80.3 | 50 psig (344.8 kPag): 95.4 | 60 psig (413.7 kPag): 110 | 70 psig (482.7 kPag): 126 | 80 psig (551.6 kPag): 141 | 90 psig (620.6 kPag): 156 | 100 psig (689.5 kPag): 171
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 46.8 | 20 In. Hg.: 46.8 | 30 In. Hg.: 46.8
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 22.1 | 20 In. Hg. (508 Mm. Hg.): 22.1 | 30 In. Hg. (762 Mm. Hg.): 22.1
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 36.2 | 10 In. Hg.: 44.9
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 17.1 | 10 In. Hg. (254 Mm. Hg.): 21.2
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.088 | 2 psig: 0.124 | 3 psig: 0.152 | 4 psig: 0.176 | 5 psig: 0.197 | 6 psig: 0.216 | 7 psig: 0.233 | 8 psig: 0.249 | 9 psig: 0.264 | 10 psig: 0.278 | 15 psig: 0.341 | 20 psig: 0.394 | 30 psig: 0.482 | 40 psig: 0.557 | 50 psig: 0.622 | 60 psig: 0.682 | 70 psig: 0.736 | 80 psig: 0.787 | 90 psig: 0.835 | 100 psig: 0.880
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.333 | 2 psig (13.8 kPag): 0.471 | 3 psig (20.7 kPag): 0.577 | 4 psig (27.6 kPag): 0.666 | 5 psig (34.5 kPag): 0.745 | 6 psig (41.4 kPag): 0.816 | 7 psig (48.3 kPag): 0.881 | 8 psig (55.2 kPag): 0.942 | 9 psig (62.1 kPag): 0.999 | 10 psig (69 kPag): 1.053 | 15 psig (103.4 kPag): 1.290 | 20 psig (137.9 kPag): 1.490 | 30 psig (206.9 kPag): 1.825 | 40 psig (275.8 kPag): 2.107 | 50 psig (344.8 kPag): 2.355 | 60 psig (413.7 kPag): 2.580 | 70 psig (482.7 kPag): 2.787 | 80 psig (551.6 kPag): 2.979 | 90 psig (620.6 kPag): 3.16 | 100 psig (689.5 kPag): 3.331
Specifications Connection A
.258" Press-Fit Insert
Specifications Cv
0.088
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
63
Specifications Screened
None
