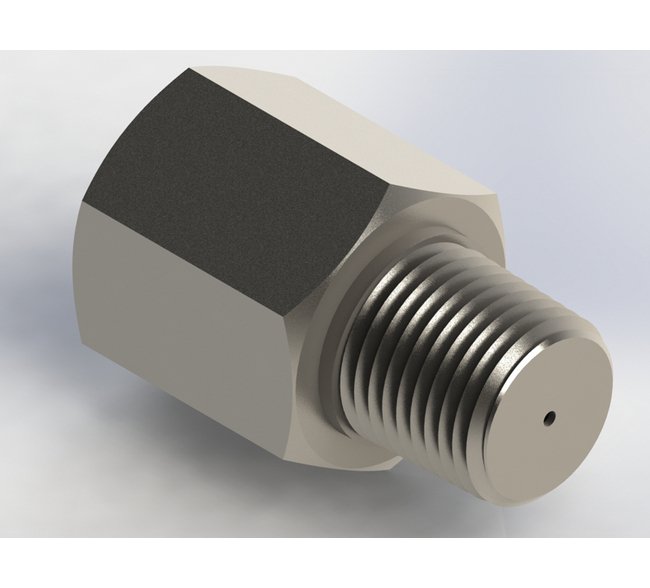

Precision Metal Orifice Pressure Snubber NPT Pipe Adapter
Precision Metal Orifice Pressure Snubber NPT Pipe Adapter
SKU:PRE-3b2d46
Reduce pressure fluctuations with our Precision Metal Orifice NPT Adapter. Ideal for Pressure Gauges, Instruments, & Valves.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Metal Orifice Pressure Snubber NPT Pipe Adapter
$49.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Pressure Snubber NPT Pipe Adapter
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Orifice Pressure Snubber NPT Pipe Adapter is an essential in-line element designed to reduce rapid pressure fluctuations in various components, including Pressure Gauges, Measuring Instruments, and Hydraulic/Pneumatic Valves. Crafted from high-grade 303 SS material, this adapter features an orifice diameter of 0.015 inches, a CV of 0.005, and can operate at a maximum pressure of 4000 psig. With connections compatible with 3/8" NPT Male and Female fittings, this adapter ensures reliable performance and precise flow rate control for fluid applications in institutional and industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators
Dimensions Orifice Diameter
0.015 in
Dimensions Total Length
1.520 in
Dimensions Width Across Flats Hex
7/8 in
Specifications Connection A
3/8" NPT Male
Specifications Connection B
3/8" NPT Female
Specifications Cv
0.005
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Screened
None
