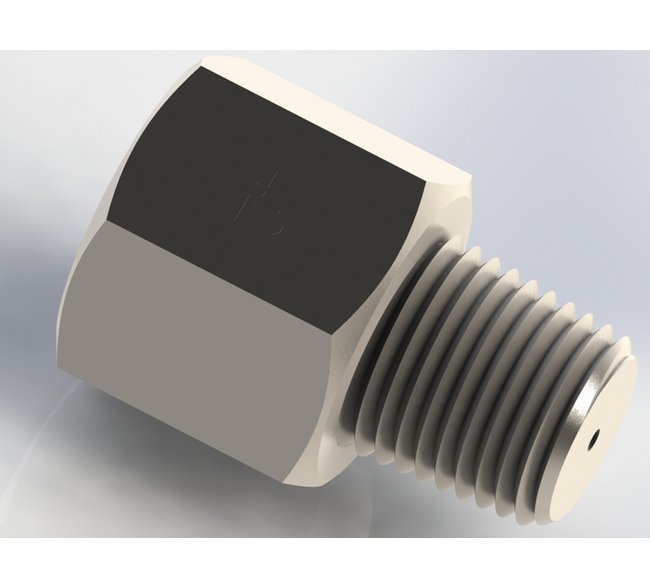

Precision Metal Orifice Pressure Snubber - NPT Pipe Adapter

Name: Precision Metal Orifice Pressure Snubber - NPT Pipe Adapter
Brand: O'Keefe Controls Co.
SKU: PRE-88c66a
Price: 39.99 USD
Availability: OutOfStock

SKU:PRE-88c66a

Regulate fluid flow precisely with the Precision Metal Orifice Pressure Snubber - NPT Pipe Adapter for stable pressure control.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Precision Metal Orifice Pressure Snubber - NPT Pipe Adapter is a crucial in-line component designed to regulate the flow of fluids into pressure instruments and controls with precision. With an orifice diameter ranging from 0.004" to 0.020", this stainless steel adapter diminishes shock and fluctuating pressure effects effectively. Ideal for pressure gages, measuring instruments, and pneumatic or hydraulic valves, this pressure snubber ensures stable flow rates and enhances system response time. Designed for institutional and government use, this product meets stringent standards for maximum operating pressure, material durability, and fluid control in a range of applications.

Product Specifications

Application 0

Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators

Dimensions Orifice Diameter

0.0040 in

Dimensions Total Length

0.880 in

Dimensions Width Across Flats Hex

9/16 in

Specifications Connection A

1/8" NPT Male

Specifications Connection B

1/8" NPT Female

Specifications Cv

0.00035

Specifications Material

303 SS

Specifications Maximum Operating Pressure

4000 psig

Specifications Screened

None

Precision Metal Orifice Pressure Snubber - NPT Pipe Adapter
