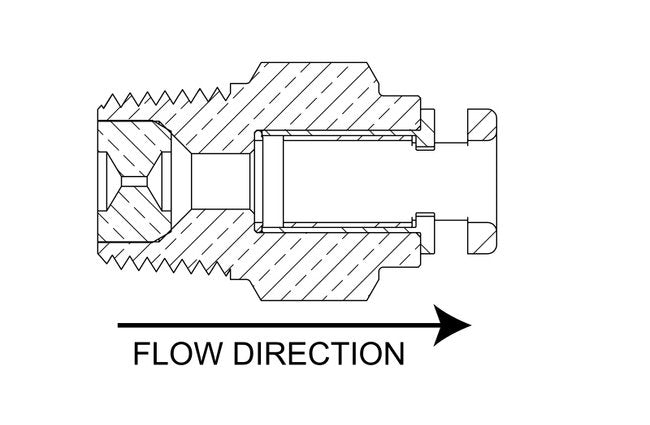

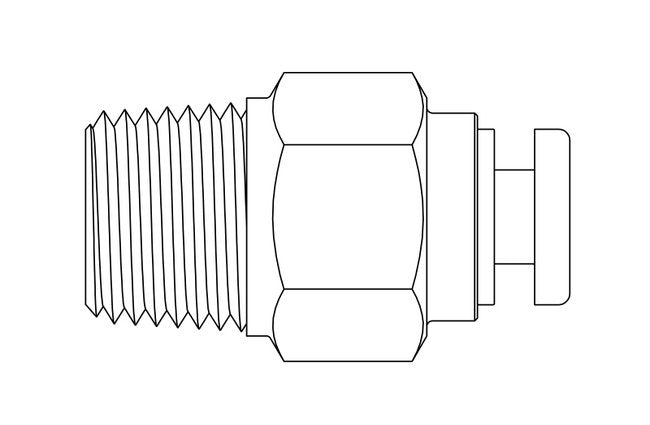

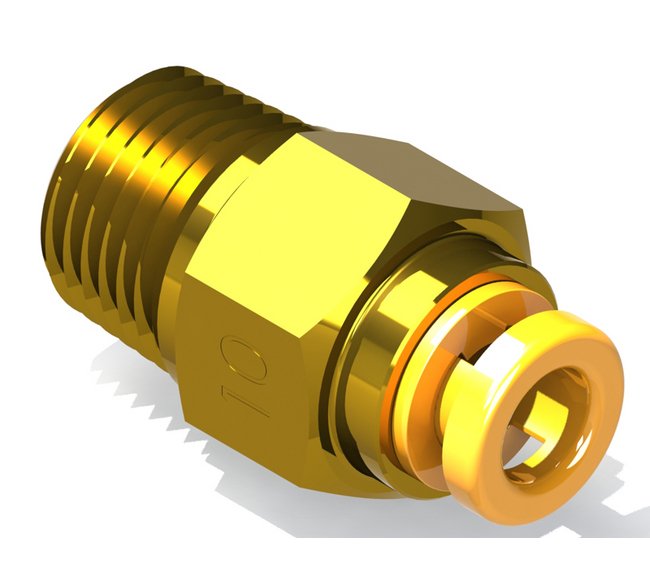

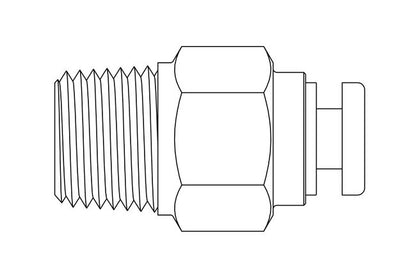

The Precision Metal Orifice Push-On Tube Adapter, featuring dimensions of 0.013" in orifice diameter, 7/16" width across flats, and a total length of 0.87", is a versatile solution for precise flow control in industrial applications. Constructed from durable brass and plastic with Buna-N seal material, it maintains a CV of 0.0038 and withstands a maximum operating pressure of 140 psig. With a 1/8" NPT male connection A and a 5/32" OD tube push-lock connection B, this adapter ensures reliable performance. Ideal for regulating air and water flow, this product meets rigorous industry standards for quality assurance.
Product Specifications
Dimensions Orifice Diameter
0.013 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.962 | 5 psig: 2.25 | 10 psig: 3.14 | 15 psig: 3.92 | 20 psig: 4.64 | 25 psig: 5.30 | 30 psig: 5.98 | 40 psig: 7.31 | 50 psig: 8.62 | 60 psig: 10.0 | 70 psig: 11.3 | 80 psig: 12.6 | 90 psig: 13.9 | 100 psig: 15.3
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.45 | 5 psig (34.5 kPag): 1.06 | 10 psig (69.0 kPag): 1.48 | 15 psig (103.4 kPag): 1.85 | 20 psig (137.9 kPag): 2.19 | 25 psig (172.4 kPag): 2.50 | 30 psig (206.9 kPag): 2.82 | 40 psig (275.8 kPag): 3.45 | 50 psig (344.8 kPag): 4.07 | 60 psig (413.7 kPag): 4.70 | 70 psig (482.7 kPag): 5.32 | 80 psig (551.6 kPag): 5.95 | 90 psig (620.6 kPag): 6.58 | 100 psig (689.5 kPag): 7.22
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 1.91 | 20 In. Hg.: 1.91 | 30 In. Hg.: 1.91
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.902 | 20 In. Hg. (508 Mm. Hg.): 0.902 | 30 In. Hg. (762 Mm. Hg.): 0.902
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 1.4 | 10 In. Hg.: 1.77
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.661 | 10 In. Hg. (254 Mm. Hg.): 0.834
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0038 | 2 psig: 0.0054 | 3 psig: 0.0066 | 4 psig: 0.0076 | 5 psig: 0.0085 | 6 psig: 0.0093 | 7 psig: 0.0101 | 8 psig: 0.0107 | 9 psig: 0.0114 | 10 psig: 0.0120 | 15 psig: 0.0147 | 20 psig: 0.0170 | 30 psig: 0.0208 | 40 psig: 0.0240 | 50 psig: 0.0269 | 60 psig: 0.0294 | 70 psig: 0.0318 | 80 psig: 0.0340 | 90 psig: 0.0360 | 100 psig: 0.0380
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0144 | 2 psig (13.8 kPag): 0.0203 | 3 psig (20.7 kPag): 0.0249 | 4 psig (27.6 kPag): 0.0288 | 5 psig (34.5 kPag): 0.0322 | 6 psig (41.4 kPag): 0.0322 | 7 psig (48.3 kPag): 0.0381 | 8 psig (55.2 kPag): 0.0407 | 9 psig (62.1 kPag): 0.0432 | 10 psig (69 kPag): 0.0455 | 15 psig (103.4 kPag): 0.0557 | 20 psig (137.9 kPag): 0.0643 | 30 psig (206.9 kPag): 0.0788 | 40 psig (275.8 kPag): 0.0910 | 50 psig (344.8 kPag): 0.1017 | 60 psig (413.7 kPag): 0.1114 | 70 psig (482.7 kPag): 0.1203 | 80 psig (551.6 kPag): 0.1287 | 90 psig (620.6 kPag): 0.1365 | 100 psig (689.5 kPag): 0.1438
Specifications Connection A
1/8" NPT Male
Specifications Connection B
5/32" OD Tube Push-Lock
Specifications Cv
0.0038
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
13
Specifications Screened
None
Specifications Seal Material
Buna-N
