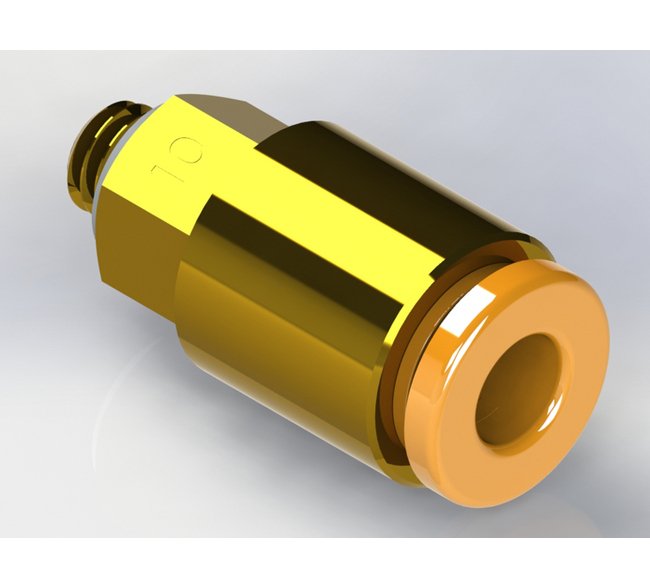

The Precision Metal Orifice Push-On Tube Adapter features an orifice diameter of 0.033 inches, brass/plastic construction, and a Buna-N seal for durability. With a maximum operating pressure of 140 psig and precise air and water flow rates, this adapter ensures optimal performance. Compliant with Federal procurement standards, GSA requirements, and FAR compliance factors, it meets the quality demands of government agencies and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Orifice Diameter
0.033 in
Dimensions Total Length
0.95 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 6.42 | 5 psig: 14.4 | 10 psig: 21.1 | 15 psig: 26.1 | 20 psig: 30.3 | 25 psig: 34.5 | 30 psig: 39.0 | 40 psig: 47.7 | 50 psig: 56.4 | 60 psig: 65.0 | 70 psig: 73.9 | 80 psig: 82.6 | 90 psig: 91.5 | 100 psig: 101
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 3.03 | 5 psig (34.5 kPag): 6.80 | 10 psig (69.0 kPag): 9.98 | 15 psig (103.4 kPag): 12.3 | 20 psig (137.9 kPag): 14.3 | 25 psig (172.4 kPag): 16.3 | 30 psig (206.9 kPag): 18.4 | 40 psig (275.8 kPag): 22.5 | 50 psig (344.8 kPag): 26.6 | 60 psig (413.7 kPag): 30.7 | 70 psig (482.7 kPag): 34.9 | 80 psig (551.6 kPag): 39.0 | 90 psig (620.6 kPag): 43.2 | 100 psig (689.5 kPag): 47.5
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 12.1 | 20 In. Hg.: 12.1 | 30 In. Hg.: 12.1
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 5.72 | 20 In. Hg. (508 Mm. Hg.): 5.72 | 30 In. Hg. (762 Mm. Hg.): 5.72
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 9.15 | 10 In. Hg.: 11.5
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 4.32 | 10 In. Hg. (254 Mm. Hg.): 5.43
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.025 | 2 psig: 0.035 | 3 psig: 0.043 | 4 psig: 0.050 | 5 psig: 0.056 | 6 psig: 0.061 | 7 psig: 0.066 | 8 psig: 0.071 | 9 psig: 0.075 | 10 psig: 0.079 | 15 psig: 0.097 | 20 psig: 0.112 | 30 psig: 0.137 | 40 psig: 0.158 | 50 psig: 0.177 | 60 psig: 0.194 | 70 psig: 0.209 | 80 psig: 0.224 | 90 psig: 0.237 | 100 psig: 0.250
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.095 | 2 psig (13.8 kPag): 0.134 | 3 psig (20.7 kPag): 0.164 | 4 psig (27.6 kPag): 0.189 | 5 psig (34.5 kPag): 0.212 | 6 psig (41.4 kPag): 0.212 | 7 psig (48.3 kPag): 0.250 | 8 psig (55.2 kPag): 0.268 | 9 psig (62.1 kPag): 0.284 | 10 psig (69 kPag): 0.299 | 15 psig (103.4 kPag): 0.367 | 20 psig (137.9 kPag): 0.423 | 30 psig (206.9 kPag): 0.518 | 40 psig (275.8 kPag): 0.599 | 50 psig (344.8 kPag): 0.669 | 60 psig (413.7 kPag): 0.733 | 70 psig (482.7 kPag): 0.792 | 80 psig (551.6 kPag): 0.846 | 90 psig (620.6 kPag): 0.898 | 100 psig (689.5 kPag): 0.946
Specifications Connection A
10-32 UNF Male
Specifications Connection B
3/16" OD Tube Push-Lock
Specifications Cv
0.025
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
33
Specifications Screened
None
Specifications Seal Material
Buna-N
