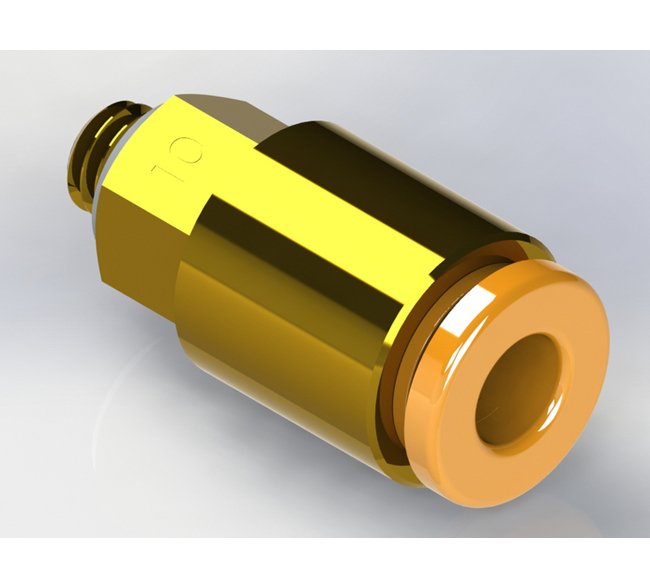

The Precision Metal Orifice Push-On Tube Adapters in 10-32 UNF x Tube configuration offer unmatched accuracy and reliability. Made of durable brass/plastic with a Buna-N seal, these adapters ensure a CV of 0.0019 and can handle a maximum operating pressure of 140 psig. With precise dimensions and exceptional flow control capabilities, these adapters are perfect for industrial applications requiring precise air and water flow regulation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

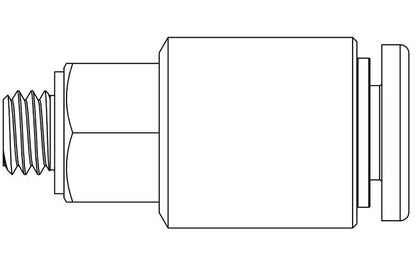

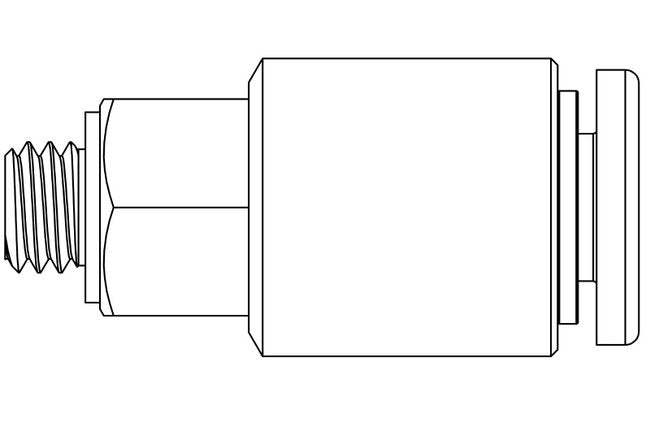

Dimensions Orifice Diameter
0.0091 in
Dimensions Total Length
0.95 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.479 | 5 psig: 1.10 | 10 psig: 1.57 | 15 psig: 1.97 | 20 psig: 2.33 | 25 psig: 2.69 | 30 psig: 3.03 | 40 psig: 3.75 | 50 psig: 4.45 | 60 psig: 5.13 | 70 psig: 5.83 | 80 psig: 6.53 | 90 psig: 7.20 | 100 psig: 7.88
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.226 | 5 psig (34.5 kPag): 0.52 | 10 psig (69.0 kPag): 0.74 | 15 psig (103.4 kPag): 0.93 | 20 psig (137.9 kPag): 1.10 | 25 psig (172.4 kPag): 1.27 | 30 psig (206.9 kPag): 1.43 | 40 psig (275.8 kPag): 1.77 | 50 psig (344.8 kPag): 2.10 | 60 psig (413.7 kPag): 2.42 | 70 psig (482.7 kPag): 2.75 | 80 psig (551.6 kPag): 3.08 | 90 psig (620.6 kPag): 3.40 | 100 psig (689.5 kPag): 3.72
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.964 | 20 In. Hg.: 0.964 | 30 In. Hg.: 0.964
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.455 | 20 In. Hg. (508 Mm. Hg.): 0.455 | 30 In. Hg. (762 Mm. Hg.): 0.455
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.703 | 10 In. Hg.: 0.892
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.332 | 10 In. Hg. (254 Mm. Hg.): 0.421
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0019 | 2 psig: 0.0027 | 3 psig: 0.0033 | 4 psig: 0.0038 | 5 psig: 0.0042 | 6 psig: 0.0047 | 7 psig: 0.0050 | 8 psig: 0.0054 | 9 psig: 0.0057 | 10 psig: 0.0060 | 15 psig: 0.0074 | 20 psig: 0.0085 | 30 psig: 0.0104 | 40 psig: 0.0120 | 50 psig: 0.0134 | 60 psig: 0.0147 | 70 psig: 0.0159 | 80 psig: 0.0170 | 90 psig: 0.0180 | 100 psig: 0.0190
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0072 | 2 psig (13.8 kPag): 0.0102 | 3 psig (20.7 kPag): 0.0125 | 4 psig (27.6 kPag): 0.0144 | 5 psig (34.5 kPag): 0.0161 | 6 psig (41.4 kPag): 0.0161 | 7 psig (48.3 kPag): 0.0190 | 8 psig (55.2 kPag): 0.0203 | 9 psig (62.1 kPag): 0.0216 | 10 psig (69 kPag): 0.0227 | 15 psig (103.4 kPag): 0.0279 | 20 psig (137.9 kPag): 0.0322 | 30 psig (206.9 kPag): 0.0394 | 40 psig (275.8 kPag): 0.0455 | 50 psig (344.8 kPag): 0.0509 | 60 psig (413.7 kPag): 0.0557 | 70 psig (482.7 kPag): 0.0602 | 80 psig (551.6 kPag): 0.0643 | 90 psig (620.6 kPag): 0.0682 | 100 psig (689.5 kPag): 0.0719
Specifications Connection A
10-32 UNF Male
Specifications Connection B
3/16" OD Tube Push-Lock
Specifications Cv
0.0019
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
9
Specifications Screened
None
Specifications Seal Material
Buna-N
