Precision Metal Orifice QX - Bleed Plug, 10-32 UNF, Brass, Viton Seal
Precision Metal Orifice QX - Bleed Plug, 10-32 UNF, Brass, Viton Seal
SKU:PRE-61ef41
Premium Precision Metal Orifice QX for precise flow control in gases or liquids. Brass construction with Viton seal.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifice QX - Bleed Plug, 10-32 UNF, Brass, Viton Seal
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice QX - Bleed Plug, 10-32 UNF, Brass, Viton Seal
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

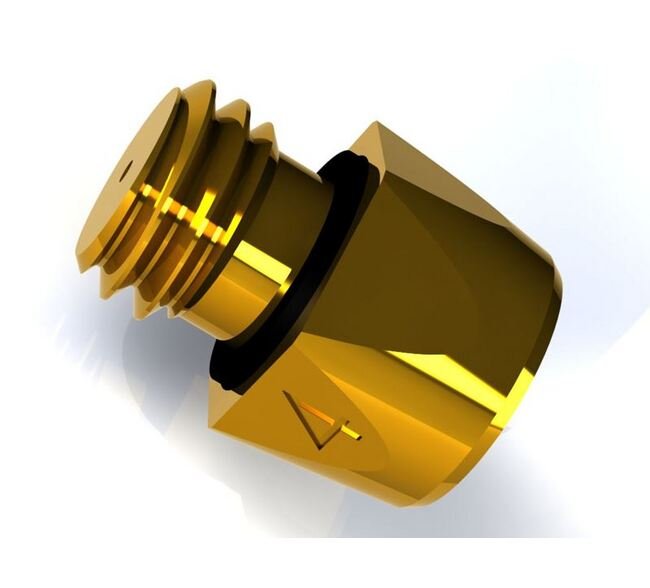

The Precision Metal Orifice QX - Bleed Plug is meticulously machined to deliver unparalleled accuracy in flow control. Crafted from high-quality brass with a Viton seal, this orifice assembly guarantees superior performance. With a nominal orifice size of 0.0142 inches and a maximum operating pressure of 100 psig, it ensures precise throttling and flow restriction. Ideal for gases or liquids, this assembly complies with rigorous standards making it a top choice for institutional applications.
Product Specifications
Application 0
Precision Flow Control - Gases or Liquids Speed Controls - Cylinders and Actuators Accurate Timing in Pneumatic or Hydraulic Circuits Flow Restriction Accurate Throttling Snubbers - Gages and Instruments
Dimensions Orifice Diameter
0.0142 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
0.335 in
Dimensions Width Across Flats Hex
1/4 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.11 | 5 psig: 2.56 | 10 psig: 3.56 | 15 psig: 4.45 | 20 psig: 5.28 | 25 psig: 6.06 | 30 psig: 6.80 | 40 psig: 8.33 | 50 psig: 9.83 | 60 psig: 11.3 | 70 psig: 12.8 | 80 psig: 14.3 | 90 psig: 15.9 | 100 psig: 17.4
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.52 | 5 psig (34.5 kPag): 1.21 | 10 psig (69.0 kPag): 1.68 | 15 psig (103.4 kPag): 2.10 | 20 psig (137.9 kPag): 2.49 | 25 psig (172.4 kPag): 2.86 | 30 psig (206.9 kPag): 3.21 | 40 psig (275.8 kPag): 3.93 | 50 psig (344.8 kPag): 4.64 | 60 psig (413.7 kPag): 5.34 | 70 psig (482.7 kPag): 6.05 | 80 psig (551.6 kPag): 6.77 | 90 psig (620.6 kPag): 7.49 | 100 psig (689.5 kPag): 8.21
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 2.26 | 20 In. Hg.: 2.26 | 30 In. Hg.: 2.26
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.07 | 20 In. Hg. (508 Mm. Hg.): 1.07 | 30 In. Hg. (762 Mm. Hg.): 1.07
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 1.64 | 10 In. Hg.: 2.06
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.773 | 10 In. Hg. (254 Mm. Hg.): 0.972
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0043 | 2 psig: 0.0061 | 3 psig: 0.0074 | 4 psig: 0.0086 | 5 psig: 0.0096 | 6 psig: 0.0105 | 7 psig: 0.0114 | 8 psig: 0.0122 | 9 psig: 0.0129 | 10 psig: 0.0136 | 15 psig: 0.0167 | 20 psig: 0.0192 | 30 psig: 0.0236 | 40 psig: 0.0272 | 50 psig: 0.0304 | 60 psig: 0.0333 | 70 psig: 0.0360 | 80 psig: 0.0385 | 90 psig: 0.0408 | 100 psig: 0.0430
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0163 | 2 psig (13.8 kPag): 0.0230 | 3 psig (20.7 kPag): 0.0282 | 4 psig (27.6 kPag): 0.0326 | 5 psig (34.5 kPag): 0.0364 | 6 psig (41.4 kPag): 0.0364 | 7 psig (48.3 kPag): 0.0431 | 8 psig (55.2 kPag): 0.0460 | 9 psig (62.1 kPag): 0.0488 | 10 psig (69 kPag): 0.0515 | 15 psig (103.4 kPag): 0.0630 | 20 psig (137.9 kPag): 0.0728 | 30 psig (206.9 kPag): 0.0892 | 40 psig (275.8 kPag): 0.1029 | 50 psig (344.8 kPag): 0.1151 | 60 psig (413.7 kPag): 0.1261 | 70 psig (482.7 kPag): 0.1362 | 80 psig (551.6 kPag): 0.1456 | 90 psig (620.6 kPag): 0.1544 | 100 psig (689.5 kPag): 0.1628
Specifications Connection A
10-32 UNF Male
Specifications Cv
0.0043
Specifications Material
Brass
Specifications Maximum Operating Pressure
100 psig
Specifications Nominal Orifice Size
14
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Taper
7.5 º
