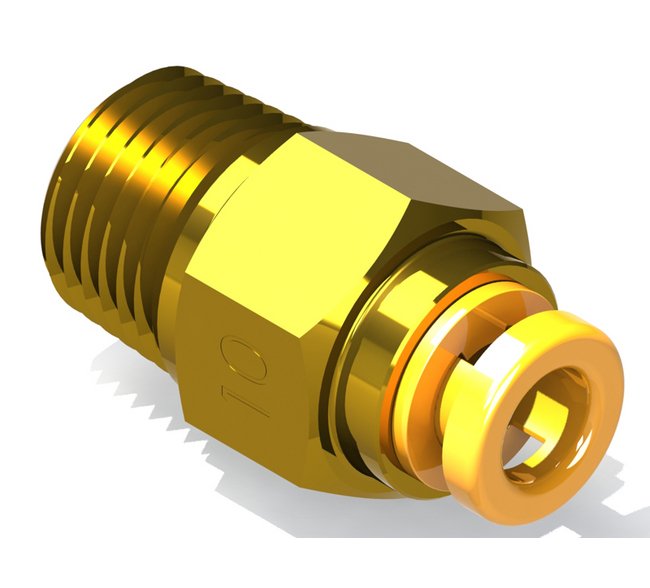

Precision Metal Orifice Tube Adapter 1/8" NPT x Tube
Precision Metal Orifice Tube Adapter 1/8" NPT x Tube
SKU:PRE-1b00fa
High-performance Precision Metal Orifice Tube Adapter for precise fluid control in air and water systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifice Tube Adapter 1/8" NPT x Tube
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Tube Adapter 1/8" NPT x Tube
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

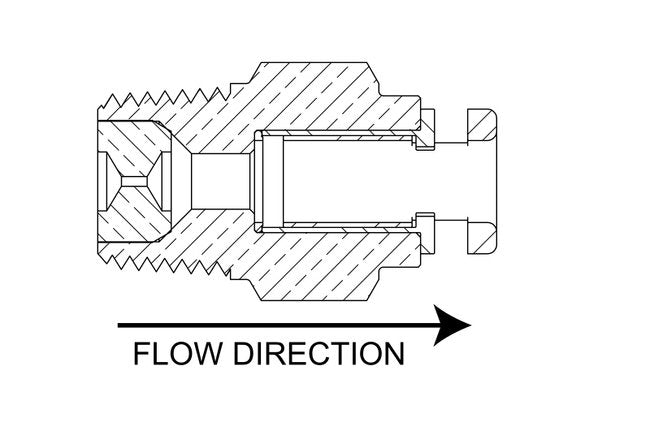

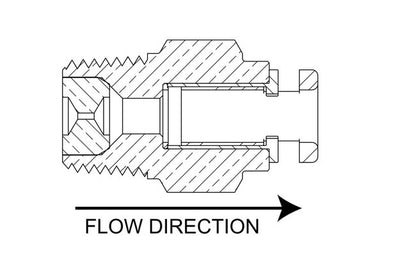

The Precision Metal Orifice Tube Adapter 1/8" NPT x Tube is a high-quality component designed for precise control in fluid systems. Made of durable brass/plastic with Buna-N seals, this adapter offers a secure connection. With a CV of 0.048 and maximum operating pressure of 140 psig, it ensures reliable performance. Ideal for air and water flow applications, meeting stringent industry requirements.

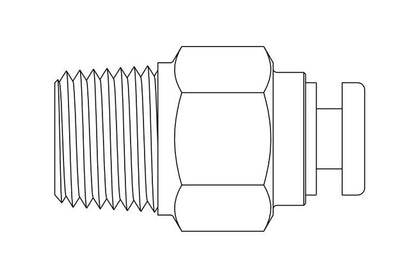

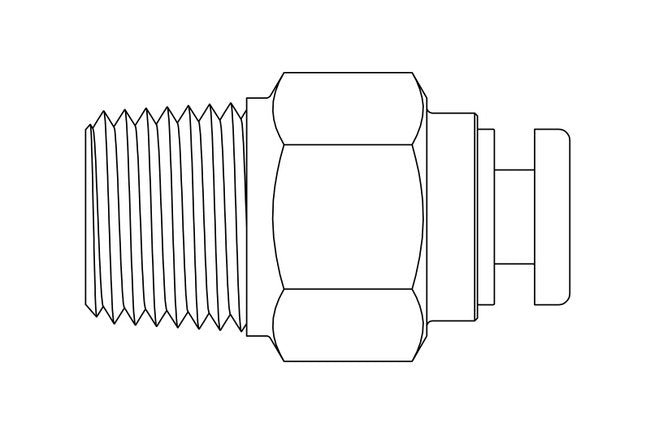

Product Specifications
Dimensions Orifice Diameter
0.047 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 13.60 | 5 psig: 30.1 | 10 psig: 41.0 | 15 psig: 50.0 | 20 psig: 58.7 | 25 psig: 67.6 | 30 psig: 76.3 | 40 psig: 94.3 | 50 psig: 112 | 60 psig: 130 | 70 psig: 148 | 80 psig: 167 | 90 psig: 185 | 100 psig: 203
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 6.43 | 5 psig (34.5 kPag): 14.2 | 10 psig (69.0 kPag): 19.4 | 15 psig (103.4 kPag): 23.6 | 20 psig (137.9 kPag): 27.7 | 25 psig (172.4 kPag): 31.9 | 30 psig (206.9 kPag): 36 | 40 psig (275.8 kPag): 44.5 | 50 psig (344.8 kPag): 52.9 | 60 psig (413.7 kPag): 61.5 | 70 psig (482.7 kPag): 70 | 80 psig (551.6 kPag): 78.6 | 90 psig (620.6 kPag): 87.2 | 100 psig (689.5 kPag): 95.8
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 24.5 | 20 In. Hg.: 24.5 | 30 In. Hg.: 24.5
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 11.6 | 20 In. Hg. (508 Mm. Hg.): 11.6 | 30 In. Hg. (762 Mm. Hg.): 11.6
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 19.2 | 10 In. Hg.: 23.6
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 9.08 | 10 In. Hg. (254 Mm. Hg.): 11.1
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.048 | 2 psig: 0.068 | 3 psig: 0.083 | 4 psig: 0.096 | 5 psig: 0.107 | 6 psig: 0.118 | 7 psig: 0.127 | 8 psig: 0.136 | 9 psig: 0.144 | 10 psig: 0.152 | 15 psig: 0.186 | 20 psig: 0.215 | 30 psig: 0.263 | 40 psig: 0.304 | 50 psig: 0.339 | 60 psig: 0.372 | 70 psig: 0.402 | 80 psig: 0.429 | 90 psig: 0.455 | 100 psig: 0.480
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.182 | 2 psig (13.8 kPag): 0.257 | 3 psig (20.7 kPag): 0.315 | 4 psig (27.6 kPag): 0.363 | 5 psig (34.5 kPag): 0.406 | 6 psig (41.4 kPag): 0.445 | 7 psig (48.3 kPag): 0.481 | 8 psig (55.2 kPag): 0.514 | 9 psig (62.1 kPag): 0.545 | 10 psig (69 kPag): 0.575 | 15 psig (103.4 kPag): 0.704 | 20 psig (137.9 kPag): 0.813 | 30 psig (206.9 kPag): 0.995 | 40 psig (275.8 kPag): 1.149 | 50 psig (344.8 kPag): 1.285 | 60 psig (413.7 kPag): 1.407 | 70 psig (482.7 kPag): 1.520 | 80 psig (551.6 kPag): 1.625 | 90 psig (620.6 kPag): 1.724 | 100 psig (689.5 kPag): 1.817
Specifications Connection A
1/8" NPT Male
Specifications Connection B
5/32" OD Tube Push-Lock
Specifications Cv
0.048
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
47
Specifications Screened
None
Specifications Seal Material
Buna-N
