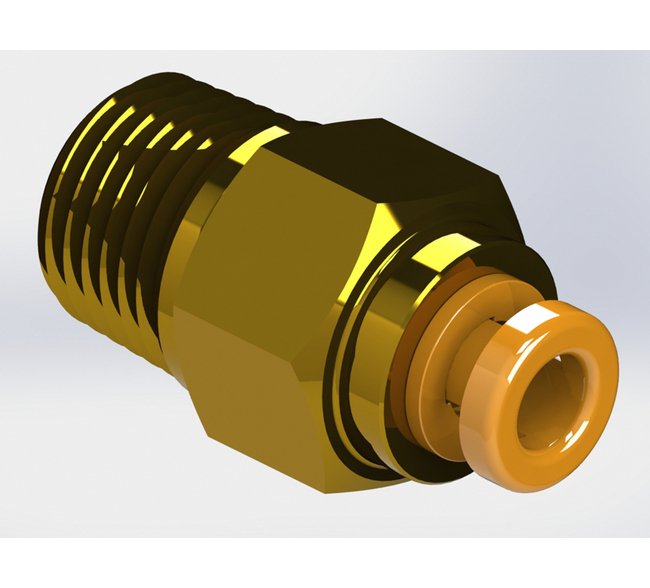

Precision Metal Orifice Tube Adapters 1/8" NPT x Tube
Precision Metal Orifice Tube Adapters 1/8" NPT x Tube
SKU:PRE-30679c
High-performance Precision Metal Orifice Tube Adapters for reliable flow control in industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifice Tube Adapters 1/8" NPT x Tube
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Tube Adapters 1/8" NPT x Tube
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Metal Orifice Tube Adapters offer exceptional performance and reliability for precise flow control applications. Constructed with high-quality Brass and Buna-N seal material, these adapters ensure optimal sealing and durability. With a CV of 0.019 and a maximum operating pressure of 140 psig, they deliver consistent air and water flow rates. Ideal for industrial settings, these adapters comply with Federal/DoD procurement standards, ensuring quality and reliability in line with institutional requirements.
Product Specifications

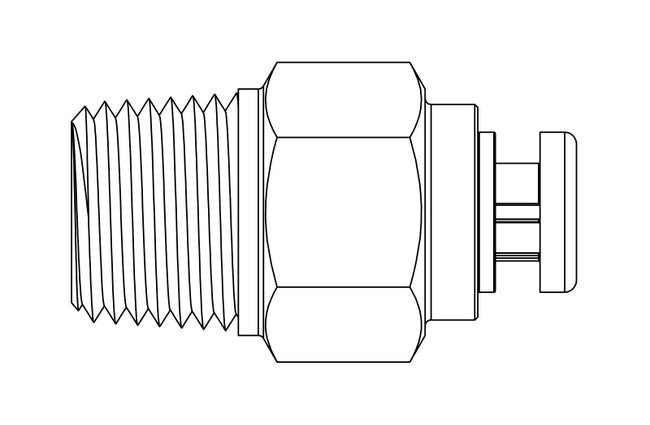

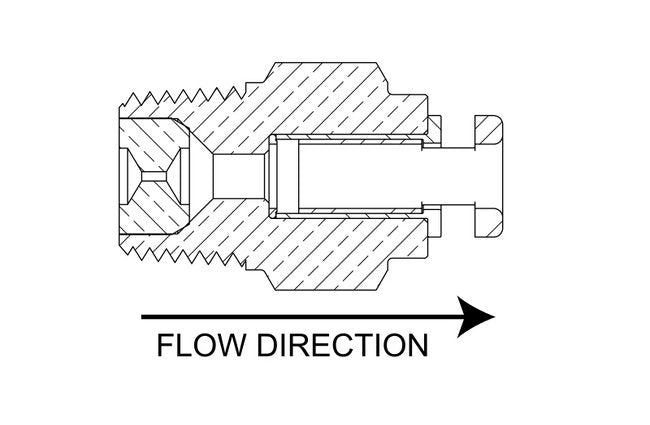

Dimensions Orifice Diameter
0.029 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 5.06 | 5 psig: 11.3 | 10 psig: 16.6 | 15 psig: 20.3 | 20 psig: 23.7 | 25 psig: 27.1 | 30 psig: 30.5 | 40 psig: 37.1 | 50 psig: 43.9 | 60 psig: 50.4 | 70 psig: 57.2 | 80 psig: 64.0 | 90 psig: 71.0 | 100 psig: 78.0
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 2.39 | 5 psig (34.5 kPag): 5.31 | 10 psig (69.0 kPag): 7.83 | 15 psig (103.4 kPag): 9.58 | 20 psig (137.9 kPag): 11.2 | 25 psig (172.4 kPag): 12.8 | 30 psig (206.9 kPag): 14.4 | 40 psig (275.8 kPag): 17.5 | 50 psig (344.8 kPag): 20.7 | 60 psig (413.7 kPag): 23.8 | 70 psig (482.7 kPag): 27.0 | 80 psig (551.6 kPag): 30.2 | 90 psig (620.6 kPag): 33.5 | 100 psig (689.5 kPag): 36.8
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 9.56 | 20 In. Hg.: 9.56 | 30 In. Hg.: 9.56
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 4.51 | 20 In. Hg. (508 Mm. Hg.): 4.51 | 30 In. Hg. (762 Mm. Hg.): 4.51
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 7.23 | 10 In. Hg.: 9.11
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 3.41 | 10 In. Hg. (254 Mm. Hg.): 4.30
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.019 | 2 psig: 0.027 | 3 psig: 0.033 | 4 psig: 0.038 | 5 psig: 0.042 | 6 psig: 0.047 | 7 psig: 0.050 | 8 psig: 0.054 | 9 psig: 0.057 | 10 psig: 0.060 | 15 psig: 0.074 | 20 psig: 0.085 | 30 psig: 0.104 | 40 psig: 0.120 | 50 psig: 0.134 | 60 psig: 0.147 | 70 psig: 0.159 | 80 psig: 0.170 | 90 psig: 0.180 | 100 psig: 0.190
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.072 | 2 psig (13.8 kPag): 0.102 | 3 psig (20.7 kPag): 0.125 | 4 psig (27.6 kPag): 0.144 | 5 psig (34.5 kPag): 0.161 | 6 psig (41.4 kPag): 0.161 | 7 psig (48.3 kPag): 0.190 | 8 psig (55.2 kPag): 0.203 | 9 psig (62.1 kPag): 0.216 | 10 psig (69 kPag): 0.227 | 15 psig (103.4 kPag): 0.279 | 20 psig (137.9 kPag): 0.322 | 30 psig (206.9 kPag): 0.394 | 40 psig (275.8 kPag): 0.455 | 50 psig (344.8 kPag): 0.509 | 60 psig (413.7 kPag): 0.557 | 70 psig (482.7 kPag): 0.602 | 80 psig (551.6 kPag): 0.643 | 90 psig (620.6 kPag): 0.682 | 100 psig (689.5 kPag): 0.719
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" OD Tube Push-Lock
Specifications Cv
0.019
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
29
Specifications Screened
None
Specifications Seal Material
Buna-N
