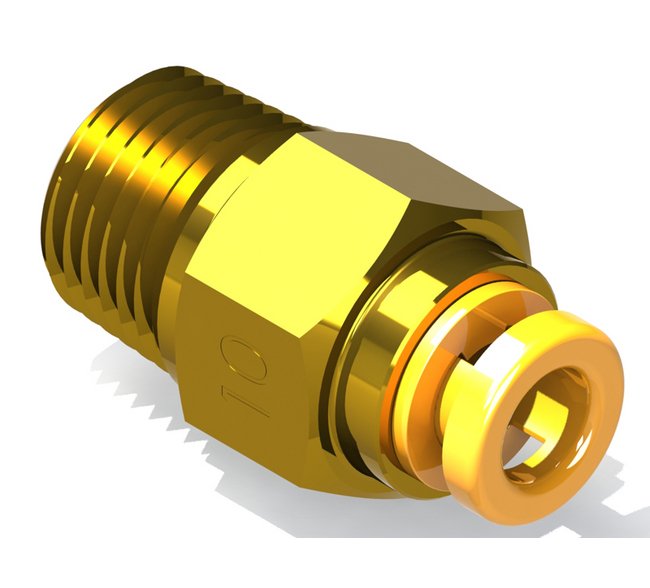

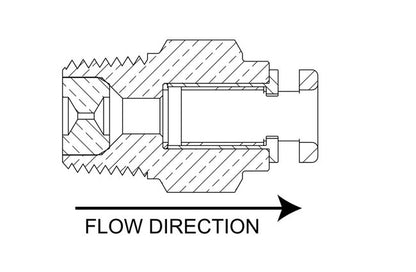

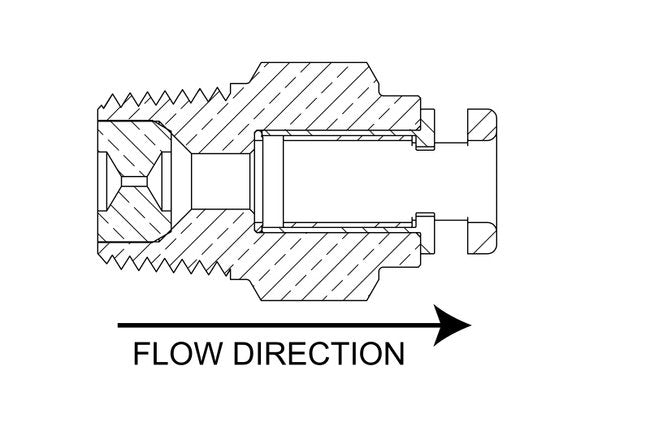

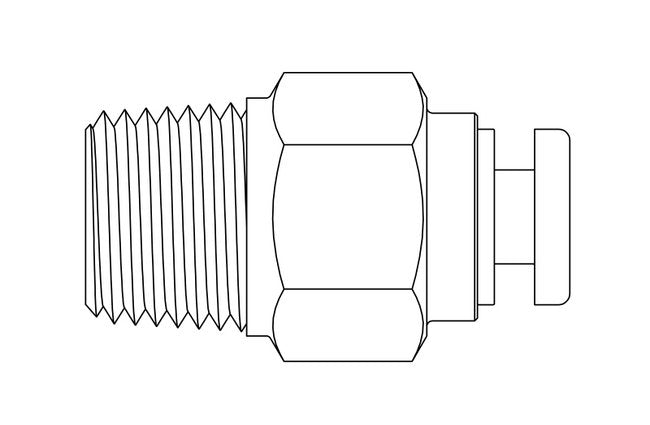

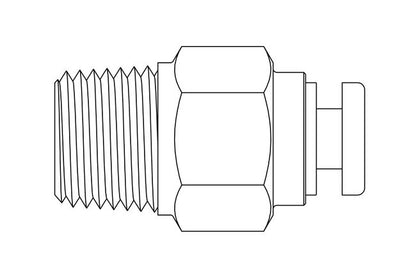

Precision Metal Orifice Tube Adapters, 1/8" NPT x Tube
Precision Metal Orifice Tube Adapters, 1/8" NPT x Tube
SKU:PRE-069319
Enhance fluid systems with Precision Metal Orifice Tube Adapters for precise flow control. Brass/Plastic construction ensures reliability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifice Tube Adapters, 1/8" NPT x Tube
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Tube Adapters, 1/8" NPT x Tube
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid systems with these Precision Metal Orifice Tube Adapters. Crafted from Brass/Plastic with Buna-N seal material, they deliver reliable performance. With a CV of 0.0096 and a maximum operating pressure of 140 psig, these adapters ensure precise flow control. Meet your procurement needs with this product compliant with federal standards such as FAR and GSA requirements, making it an ideal choice for institutional buyers.
Product Specifications
Dimensions Orifice Diameter
0.021 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.39 | 5 psig: 5.62 | 10 psig: 7.48 | 15 psig: 9.34 | 20 psig: 11.1 | 25 psig: 12.7 | 30 psig: 14.4 | 40 psig: 17.8 | 50 psig: 21.2 | 60 psig: 24.6 | 70 psig: 28.0 | 80 psig: 31.6 | 90 psig: 35.0 | 100 psig: 38.1
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.13 | 5 psig (34.5 kPag): 2.65 | 10 psig (69.0 kPag): 3.53 | 15 psig (103.4 kPag): 4.41 | 20 psig (137.9 kPag): 5.22 | 25 psig (172.4 kPag): 6.01 | 30 psig (206.9 kPag): 6.81 | 40 psig (275.8 kPag): 8.42 | 50 psig (344.8 kPag): 10.0 | 60 psig (413.7 kPag): 11.6 | 70 psig (482.7 kPag): 13.2 | 80 psig (551.6 kPag): 14.9 | 90 psig (620.6 kPag): 16.5 | 100 psig (689.5 kPag): 18.0
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 4.92 | 20 In. Hg.: 4.92 | 30 In. Hg.: 4.92
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.32 | 20 In. Hg. (508 Mm. Hg.): 2.32 | 30 In. Hg. (762 Mm. Hg.): 2.32
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 3.6 | 10 In. Hg.: 4.62
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.70 | 10 In. Hg. (254 Mm. Hg.): 2.18
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.010 | 2 psig: 0.014 | 3 psig: 0.017 | 4 psig: 0.019 | 5 psig: 0.021 | 6 psig: 0.024 | 7 psig: 0.025 | 8 psig: 0.027 | 9 psig: 0.029 | 10 psig: 0.030 | 15 psig: 0.037 | 20 psig: 0.043 | 30 psig: 0.053 | 40 psig: 0.061 | 50 psig: 0.068 | 60 psig: 0.074 | 70 psig: 0.080 | 80 psig: 0.086 | 90 psig: 0.091 | 100 psig: 0.096
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.036 | 2 psig (13.8 kPag): 0.051 | 3 psig (20.7 kPag): 0.063 | 4 psig (27.6 kPag): 0.073 | 5 psig (34.5 kPag): 0.081 | 6 psig (41.4 kPag): 0.081 | 7 psig (48.3 kPag): 0.096 | 8 psig (55.2 kPag): 0.103 | 9 psig (62.1 kPag): 0.109 | 10 psig (69 kPag): 0.115 | 15 psig (103.4 kPag): 0.141 | 20 psig (137.9 kPag): 0.163 | 30 psig (206.9 kPag): 0.199 | 40 psig (275.8 kPag): 0.230 | 50 psig (344.8 kPag): 0.257 | 60 psig (413.7 kPag): 0.281 | 70 psig (482.7 kPag): 0.304 | 80 psig (551.6 kPag): 0.325 | 90 psig (620.6 kPag): 0.345 | 100 psig (689.5 kPag): 0.363
Specifications Connection A
1/8" NPT Male
Specifications Connection B
5/32" OD Tube Push-Lock
Specifications Cv
0.0096
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
21
Specifications Screened
None
Specifications Seal Material
Buna-N
