Precision Metal Orifice Tube Adapters, 1/8" NPT x Tube
Precision Metal Orifice Tube Adapters, 1/8" NPT x Tube
SKU:PRE-9dc21d
High-performance Precision Metal Orifice Tube Adapters with brass/plastic construction for reliable industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Metal Orifice Tube Adapters, 1/8" NPT x Tube
$29.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Tube Adapters, 1/8" NPT x Tube
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

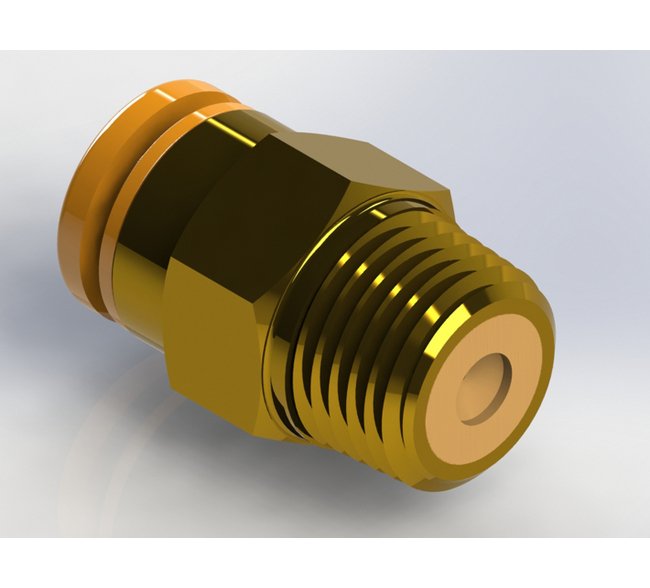

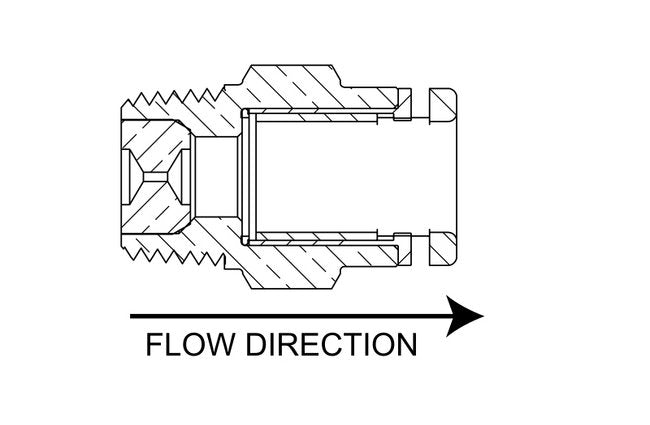

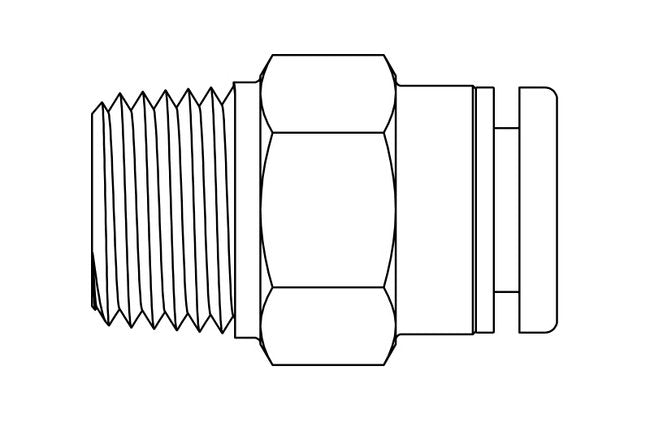

The Precision Metal Orifice Tube Adapters are precision-engineered for reliable performance in demanding environments. Featuring a brass/plastic construction with Buna-N seal material, these adapters ensure leak-free connections. With a CV of 0.0034 and a maximum operating pressure of 140 psig, they deliver consistent air and water flow rates. Compliant with Federal/DoD, GSA, FAR, and DLA standards, these adapters meet stringent procurement requirements. Ideal for industrial applications that demand high precision and durability.
Product Specifications
Dimensions Orifice Diameter
0.0122 in
Dimensions Total Length
0.89 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.843 | 5 psig: 1.94 | 10 psig: 2.73 | 15 psig: 3.43 | 20 psig: 4.07 | 25 psig: 4.66 | 30 psig: 5.23 | 40 psig: 6.44 | 50 psig: 7.59 | 60 psig: 8.75 | 70 psig: 9.92 | 80 psig: 11.1 | 90 psig: 12.2 | 100 psig: 13.4
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.398 | 5 psig (34.5 kPag): 0.92 | 10 psig (69.0 kPag): 1.29 | 15 psig (103.4 kPag): 1.62 | 20 psig (137.9 kPag): 1.92 | 25 psig (172.4 kPag): 2.20 | 30 psig (206.9 kPag): 2.47 | 40 psig (275.8 kPag): 3.04 | 50 psig (344.8 kPag): 3.58 | 60 psig (413.7 kPag): 4.13 | 70 psig (482.7 kPag): 4.68 | 80 psig (551.6 kPag): 5.23 | 90 psig (620.6 kPag): 5.78 | 100 psig (689.5 kPag): 6.33
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 1.68 | 20 In. Hg.: 1.68 | 30 In. Hg.: 1.68
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.792 | 20 In. Hg. (508 Mm. Hg.): 0.792 | 30 In. Hg. (762 Mm. Hg.): 0.792
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 1.23 | 10 In. Hg.: 1.55
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.582 | 10 In. Hg. (254 Mm. Hg.): 0.730
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0034 | 2 psig: 0.0048 | 3 psig: 0.0059 | 4 psig: 0.0068 | 5 psig: 0.0076 | 6 psig: 0.0083 | 7 psig: 0.0090 | 8 psig: 0.0096 | 9 psig: 0.0102 | 10 psig: 0.0108 | 15 psig: 0.0132 | 20 psig: 0.0152 | 30 psig: 0.0186 | 40 psig: 0.0215 | 50 psig: 0.0240 | 60 psig: 0.0263 | 70 psig: 0.0284 | 80 psig: 0.0304 | 90 psig: 0.0323 | 100 psig: 0.0340
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0129 | 2 psig (13.8 kPag): 0.0182 | 3 psig (20.7 kPag): 0.0223 | 4 psig (27.6 kPag): 0.0257 | 5 psig (34.5 kPag): 0.0288 | 6 psig (41.4 kPag): 0.0288 | 7 psig (48.3 kPag): 0.0341 | 8 psig (55.2 kPag): 0.0364 | 9 psig (62.1 kPag): 0.0386 | 10 psig (69 kPag): 0.0407 | 15 psig (103.4 kPag): 0.0498 | 20 psig (137.9 kPag): 0.0576 | 30 psig (206.9 kPag): 0.0705 | 40 psig (275.8 kPag): 0.0814 | 50 psig (344.8 kPag): 0.0910 | 60 psig (413.7 kPag): 0.0997 | 70 psig (482.7 kPag): 0.1077 | 80 psig (551.6 kPag): 0.1151 | 90 psig (620.6 kPag): 0.1221 | 100 psig (689.5 kPag): 0.1287
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.0034
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
12
Specifications Screened
None
Specifications Seal Material
Buna-N
