Precision Metal Orifice Tube Adapters, 1/8" NPT x Tube
Precision Metal Orifice Tube Adapters, 1/8" NPT x Tube
SKU:PRE-35f1da
Enhance fluid control with our Precision Metal Orifice Tube Adapters - reliable, durable, and precise for industrial use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifice Tube Adapters, 1/8" NPT x Tube
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Tube Adapters, 1/8" NPT x Tube
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

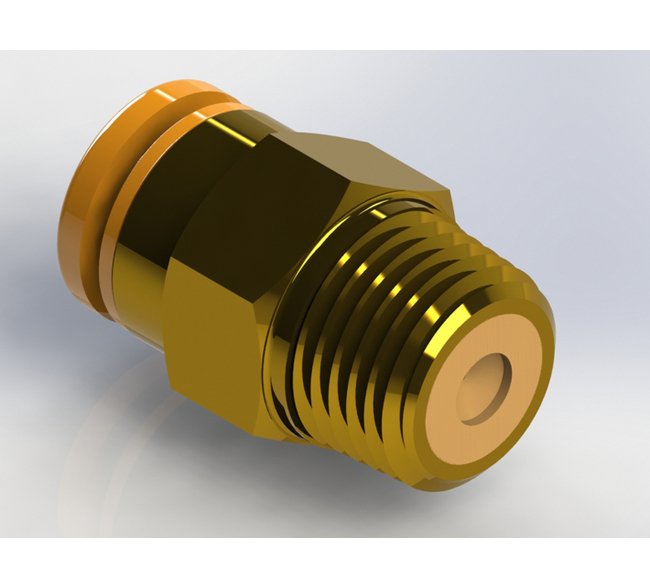

Upgrade your fluid control systems with our Precision Metal Orifice Tube Adapters. Made of durable brass and Buna-N seal material, these adapters ensure reliable performance. With a CV of 0.018 and a maximum operating pressure of 140 psig, they deliver precise air and water flow. Ideal for industrial use, these adapters meet Federal/DoD procurement standards and comply with industry-specific certifications for quality assurance.

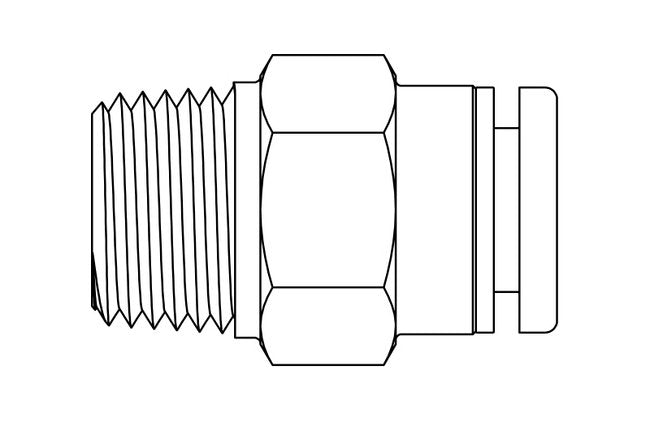

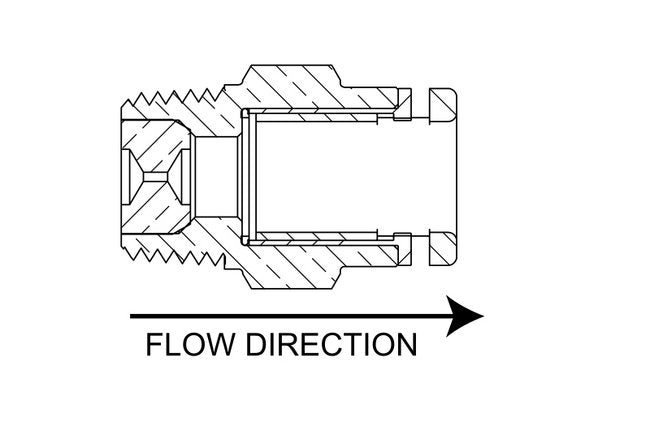

Product Specifications
Dimensions Orifice Diameter
0.028 in
Dimensions Total Length
0.89 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 4.68 | 5 psig: 10.5 | 10 psig: 15.2 | 15 psig: 18.6 | 20 psig: 21.8 | 25 psig: 24.8 | 30 psig: 28.0 | 40 psig: 34.1 | 50 psig: 40.3 | 60 psig: 46.4 | 70 psig: 52.5 | 80 psig: 58.7 | 90 psig: 65.0 | 100 psig: 71.4
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 2.21 | 5 psig (34.5 kPag): 4.94 | 10 psig (69.0 kPag): 7.18 | 15 psig (103.4 kPag): 8.78 | 20 psig (137.9 kPag): 10.3 | 25 psig (172.4 kPag): 11.7 | 30 psig (206.9 kPag): 13.2 | 40 psig (275.8 kPag): 16.1 | 50 psig (344.8 kPag): 19.0 | 60 psig (413.7 kPag): 21.9 | 70 psig (482.7 kPag): 24.8 | 80 psig (551.6 kPag): 27.7 | 90 psig (620.6 kPag): 30.7 | 100 psig (689.5 kPag): 33.7
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 8.90 | 20 In. Hg.: 8.9 | 30 In. Hg.: 8.90
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 4.20 | 20 In. Hg. (508 Mm. Hg.): 4.20 | 30 In. Hg. (762 Mm. Hg.): 4.20
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 6.7 | 10 In. Hg.: 8.48
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 3.16 | 10 In. Hg. (254 Mm. Hg.): 4.00
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.018 | 2 psig: 0.025 | 3 psig: 0.031 | 4 psig: 0.036 | 5 psig: 0.040 | 6 psig: 0.044 | 7 psig: 0.048 | 8 psig: 0.051 | 9 psig: 0.054 | 10 psig: 0.057 | 15 psig: 0.070 | 20 psig: 0.080 | 30 psig: 0.099 | 40 psig: 0.114 | 50 psig: 0.127 | 60 psig: 0.139 | 70 psig: 0.151 | 80 psig: 0.161 | 90 psig: 0.171 | 100 psig: 0.180
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.068 | 2 psig (13.8 kPag): 0.096 | 3 psig (20.7 kPag): 0.118 | 4 psig (27.6 kPag): 0.136 | 5 psig (34.5 kPag): 0.152 | 6 psig (41.4 kPag): 0.152 | 7 psig (48.3 kPag): 0.180 | 8 psig (55.2 kPag): 0.193 | 9 psig (62.1 kPag): 0.204 | 10 psig (69 kPag): 0.215 | 15 psig (103.4 kPag): 0.264 | 20 psig (137.9 kPag): 0.305 | 30 psig (206.9 kPag): 0.373 | 40 psig (275.8 kPag): 0.431 | 50 psig (344.8 kPag): 0.482 | 60 psig (413.7 kPag): 0.528 | 70 psig (482.7 kPag): 0.570 | 80 psig (551.6 kPag): 0.609 | 90 psig (620.6 kPag): 0.646 | 100 psig (689.5 kPag): 0.681
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.018
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
28
Specifications Screened
None
Specifications Seal Material
Buna-N
