Precision Metal Orifice Tube Adapters 10-32 UNF x Tube
Precision Metal Orifice Tube Adapters 10-32 UNF x Tube
SKU:PRE-3b097b
Get precise fluid control with our durable Precision Metal Orifice Tube Adapters. Ideal for air and water flow applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifice Tube Adapters 10-32 UNF x Tube
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Tube Adapters 10-32 UNF x Tube
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

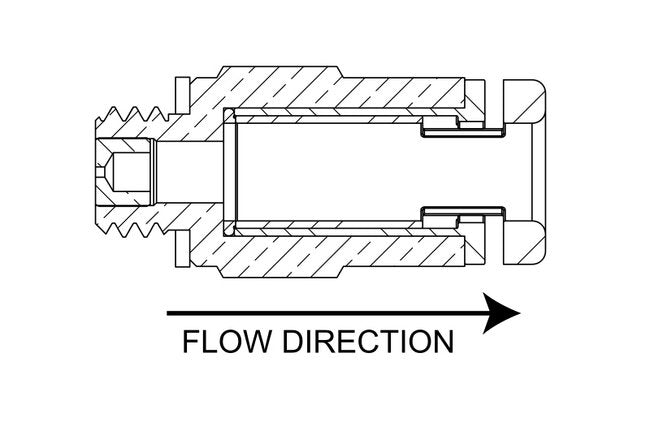

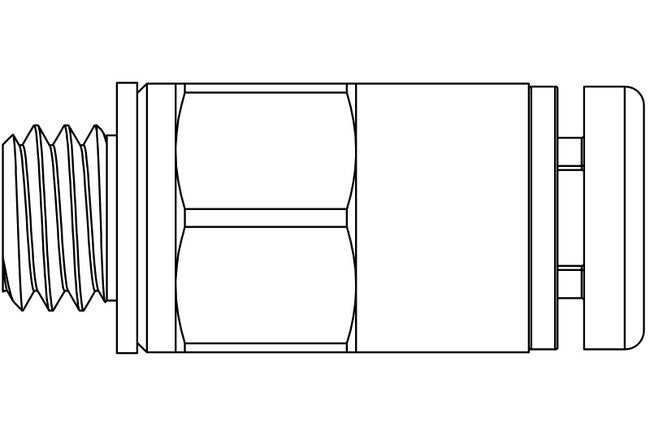

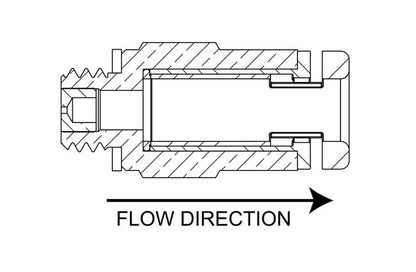

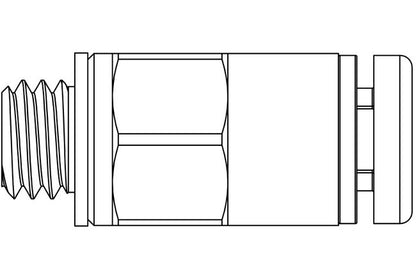

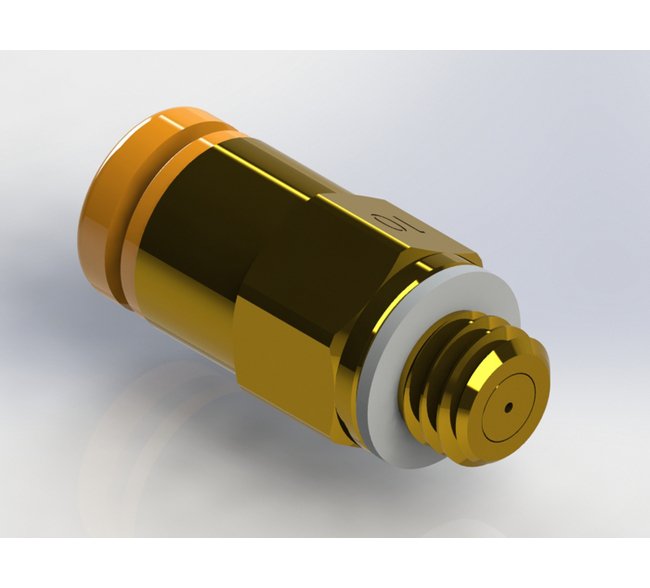

The Precision Metal Orifice Tube Adapters offer unmatched accuracy and durability for fluid control applications. With an Orifice Diameter of 0.025 inches and a Total Length of 0.66 inches, these adapters ensure precise flow control. Constructed from high-quality Brass and Buna-N seal material, they can sustain a Maximum Operating Pressure of 140 psig. These adapters feature a 10-32 UNF Male connection on one end and a 1/8" OD Tube Push-Lock on the other, guaranteeing a secure and leak-free connection. Ideal for air and water flow control, these adapters deliver reliable performance in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Orifice Diameter
0.025 in
Dimensions Total Length
0.66 in
Dimensions Width Across Flats Hex
9/32 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 3.54 | 5 psig: 8.12 | 10 psig: 11.8 | 15 psig: 14.7 | 20 psig: 17.3 | 25 psig: 19.9 | 30 psig: 22.5 | 40 psig: 27.5 | 50 psig: 32.6 | 60 psig: 37.5 | 70 psig: 42.6 | 80 psig: 47.7 | 90 psig: 52.8 | 100 psig: 58.1
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.67 | 5 psig (34.5 kPag): 3.83 | 10 psig (69.0 kPag): 5.55 | 15 psig (103.4 kPag): 6.95 | 20 psig (137.9 kPag): 8.15 | 25 psig (172.4 kPag): 9.38 | 30 psig (206.9 kPag): 10.6 | 40 psig (275.8 kPag): 13.0 | 50 psig (344.8 kPag): 15.4 | 60 psig (413.7 kPag): 17.7 | 70 psig (482.7 kPag): 20.1 | 80 psig (551.6 kPag): 22.5 | 90 psig (620.6 kPag): 24.9 | 100 psig (689.5 kPag): 27.4
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 7.08 | 20 In. Hg.: 7.08 | 30 In. Hg.: 7.08
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 3.34 | 20 In. Hg. (508 Mm. Hg.): 3.34 | 30 In. Hg. (762 Mm. Hg.): 3.34
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 5.25 | 10 In. Hg.: 6.63
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.48 | 10 In. Hg. (254 Mm. Hg.): 3.13
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.014 | 2 psig: 0.020 | 3 psig: 0.024 | 4 psig: 0.028 | 5 psig: 0.031 | 6 psig: 0.034 | 7 psig: 0.037 | 8 psig: 0.040 | 9 psig: 0.042 | 10 psig: 0.044 | 15 psig: 0.054 | 20 psig: 0.063 | 30 psig: 0.077 | 40 psig: 0.089 | 50 psig: 0.099 | 60 psig: 0.108 | 70 psig: 0.117 | 80 psig: 0.125 | 90 psig: 0.133 | 100 psig: 0.140
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.053 | 2 psig (13.8 kPag): 0.075 | 3 psig (20.7 kPag): 0.092 | 4 psig (27.6 kPag): 0.106 | 5 psig (34.5 kPag): 0.119 | 6 psig (41.4 kPag): 0.119 | 7 psig (48.3 kPag): 0.140 | 8 psig (55.2 kPag): 0.150 | 9 psig (62.1 kPag): 0.159 | 10 psig (69 kPag): 0.168 | 15 psig (103.4 kPag): 0.205 | 20 psig (137.9 kPag): 0.237 | 30 psig (206.9 kPag): 0.290 | 40 psig (275.8 kPag): 0.335 | 50 psig (344.8 kPag): 0.375 | 60 psig (413.7 kPag): 0.411 | 70 psig (482.7 kPag): 0.443 | 80 psig (551.6 kPag): 0.474 | 90 psig (620.6 kPag): 0.503 | 100 psig (689.5 kPag): 0.530
Specifications Connection A
10-32 UNF Male
Specifications Connection B
1/8" OD Tube Push-Lock
Specifications Cv
0.014
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
25
Specifications Screened
None
Specifications Seal Material
Buna-N
