Precision Metal Orifice Tube Adapters, 10-32 UNF x Tube
Precision Metal Orifice Tube Adapters, 10-32 UNF x Tube
SKU:PRE-2c7562
Enhance fluid control with Precision Metal Orifice Tube Adapters for precise, reliable performance in industrial settings.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Metal Orifice Tube Adapters, 10-32 UNF x Tube
$24.99
Quantity: 1
Claim Your Seller Account
Precision Metal Orifice Tube Adapters, 10-32 UNF x Tube
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

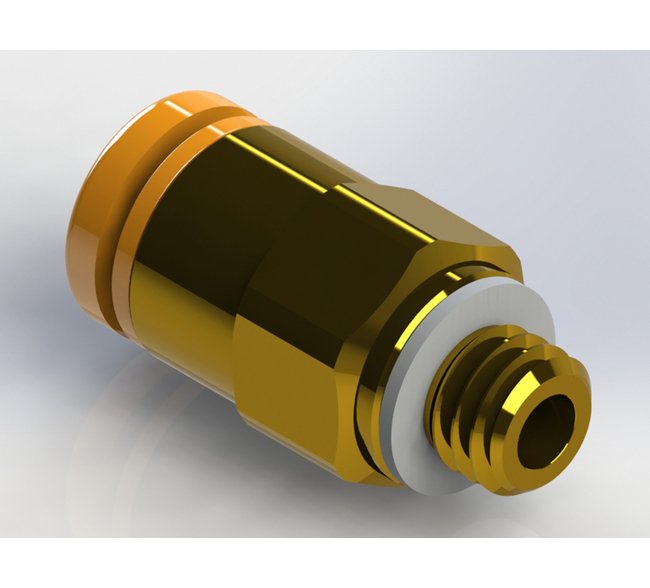

Upgrade your fluid control systems with our Precision Metal Orifice Tube Adapters. Made from durable brass and featuring a Buna-N seal, these adapters offer precise flow control with a CV of 0.0096. Operating at a maximum pressure of 140 psig, they ensure reliable performance in industrial settings. With dimensions of 0.021 in orifice diameter and a 5/16 in width across flats, these adapters are designed for efficiency and accuracy. Trusted by government agencies and institutions, these adapters meet stringent procurement standards for quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Orifice Diameter
0.021 in
Dimensions Total Length
0.67 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.39 | 5 psig: 5.62 | 10 psig: 7.48 | 15 psig: 9.34 | 20 psig: 11.1 | 25 psig: 12.7 | 30 psig: 14.4 | 40 psig: 17.8 | 50 psig: 21.2 | 60 psig: 24.6 | 70 psig: 28.0 | 80 psig: 31.6 | 90 psig: 35.0 | 100 psig: 38.1
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.13 | 5 psig (34.5 kPag): 2.65 | 10 psig (69.0 kPag): 3.53 | 15 psig (103.4 kPag): 4.41 | 20 psig (137.9 kPag): 5.22 | 25 psig (172.4 kPag): 6.01 | 30 psig (206.9 kPag): 6.81 | 40 psig (275.8 kPag): 8.42 | 50 psig (344.8 kPag): 10.0 | 60 psig (413.7 kPag): 11.6 | 70 psig (482.7 kPag): 13.2 | 80 psig (551.6 kPag): 14.9 | 90 psig (620.6 kPag): 16.5 | 100 psig (689.5 kPag): 18.0
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 4.92 | 20 In. Hg.: 4.92 | 30 In. Hg.: 4.92
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.32 | 20 In. Hg. (508 Mm. Hg.): 2.32 | 30 In. Hg. (762 Mm. Hg.): 2.32
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 3.6 | 10 In. Hg.: 4.62
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.70 | 10 In. Hg. (254 Mm. Hg.): 2.18
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.010 | 2 psig: 0.014 | 3 psig: 0.017 | 4 psig: 0.019 | 5 psig: 0.021 | 6 psig: 0.024 | 7 psig: 0.025 | 8 psig: 0.027 | 9 psig: 0.029 | 10 psig: 0.030 | 15 psig: 0.037 | 20 psig: 0.043 | 30 psig: 0.053 | 40 psig: 0.061 | 50 psig: 0.068 | 60 psig: 0.074 | 70 psig: 0.080 | 80 psig: 0.086 | 90 psig: 0.091 | 100 psig: 0.096
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.036 | 2 psig (13.8 kPag): 0.051 | 3 psig (20.7 kPag): 0.063 | 4 psig (27.6 kPag): 0.073 | 5 psig (34.5 kPag): 0.081 | 6 psig (41.4 kPag): 0.081 | 7 psig (48.3 kPag): 0.096 | 8 psig (55.2 kPag): 0.103 | 9 psig (62.1 kPag): 0.109 | 10 psig (69 kPag): 0.115 | 15 psig (103.4 kPag): 0.141 | 20 psig (137.9 kPag): 0.163 | 30 psig (206.9 kPag): 0.199 | 40 psig (275.8 kPag): 0.230 | 50 psig (344.8 kPag): 0.257 | 60 psig (413.7 kPag): 0.281 | 70 psig (482.7 kPag): 0.304 | 80 psig (551.6 kPag): 0.325 | 90 psig (620.6 kPag): 0.345 | 100 psig (689.5 kPag): 0.363
Specifications Connection A
10-32 UNF Male
Specifications Connection B
5/32" OD Tube Push-Lock
Specifications Cv
0.0096
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
21
Specifications Screened
None
Specifications Seal Material
Buna-N
